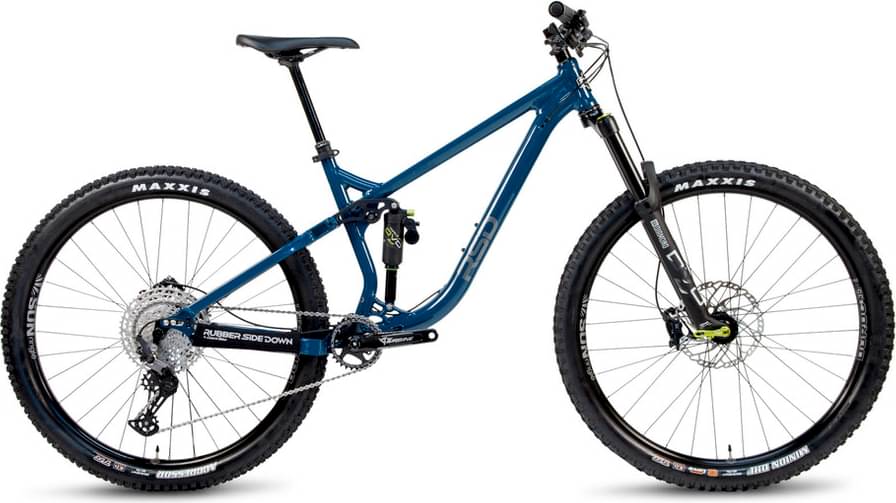

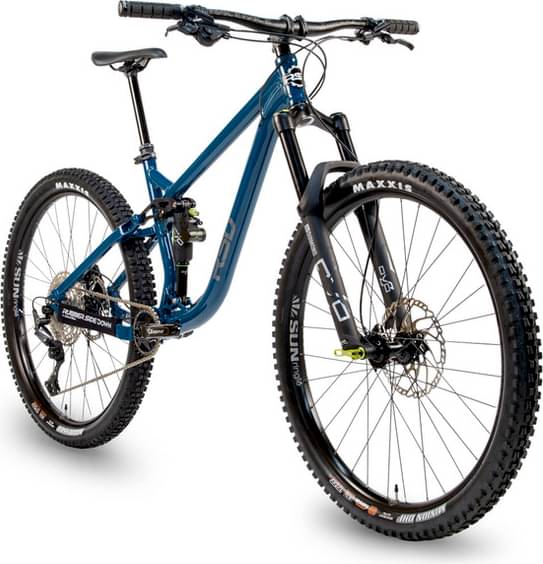

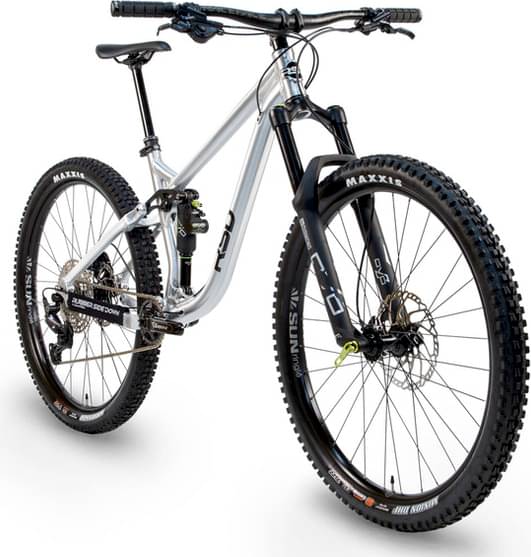

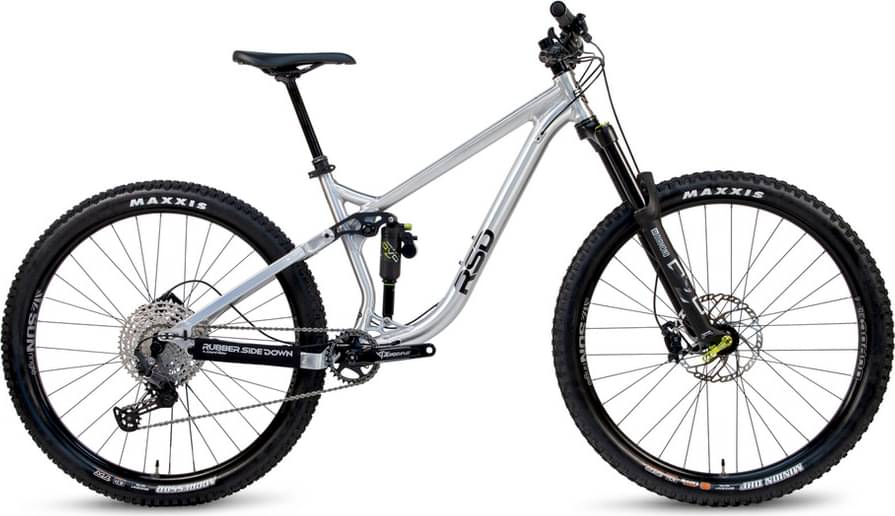

RSD WILDCAT 150 Aluminum 29in Deore 2024
2024 Mountain
Estimate price |
4,249$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork DVO Onyx SC
-
Groupset Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5+/29 Aluminum 6000 Series
Suspension Fork
DVO Onyx SC D2 27.5+/29 160mm 44mm
Rear Shock
DVO Topaz T2 230×65 (RC 425 – 150mm, RC 440 – 153mm)
Drivetrain
Rear Derailleur
Shimano Deore Long Cage 12spd
Shift Levers
Shimano Deore Trigger 12spd
Cassette
Shimano Deore 10-51T 12spd
Crank
Race Face Turbine Cinch 175mm DM
Bottom Bracket
Race Face 73mm BSA
Chain
Shimano 12spd
Wheels
Rims
Sun Ringle Duroc 29x35mm Front 15x110mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C/Max Terra/EXO Rear
Brakes
Brakes
Shimano SLX 4 Pistons M7120
Cockpit
Stem
FSA Comet 35 50mm
Handlebar
Race Face 35mm Turbine R 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Seatpost
Race Face Turbine / KS LEV Dropper (S 125mm, M 150mm, L 175mm & XL 200mm) with SouthPaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.334 mm | 1.298 mm | 1.262 mm |
| Bottom Bracket Height | 345 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 786 mm | 818 mm | 839 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 161 mm | 155 mm | 158 mm | 155 mm |
| Stack | 618 mm | 627 mm | 636 mm | 645 mm |
| Reach | 442 mm | 470 mm | 490 mm | 511 mm |
| Top Tube Length | 585 mm | 615 mm | 635 mm | 660 mm |
| Seat Tube Angle | 76.6 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 63.2 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1210 mm | 1242 mm | 1263 mm | 1292 mm |
| Bottom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm |
| Standover Height | 700 | 705 mm | 708 mm | 716 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
