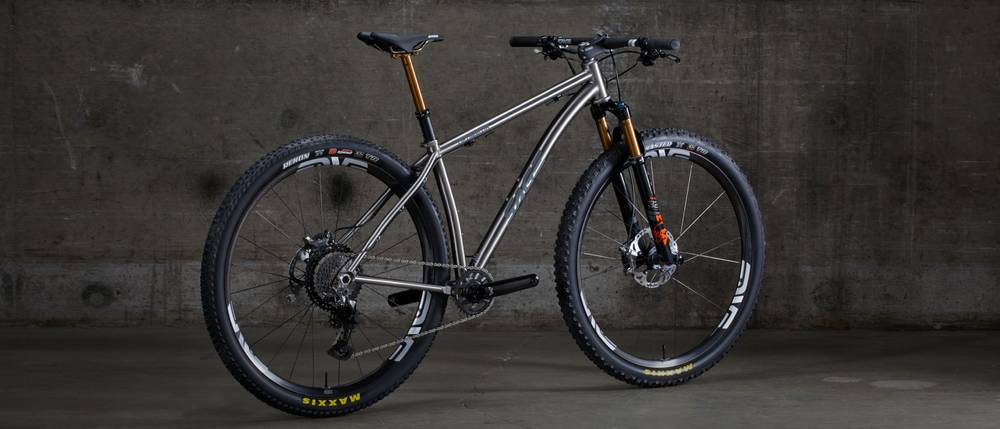

Sage OPTIMATOR Frame Only 2020
2020 Mountain
Estimate price |
3,100$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Titanium -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 315 mm | 314 mm | 313 mm |
| Front Center | 684 mm | 709 mm | 746 mm |
| Rake | 51 mm | 52 mm | 56 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 614 mm | 627 mm | 652 mm |
| Reach | 424 mm | 444 mm | 472 mm |
| Top Tube Length | 604 mm | 628 mm | 663 mm |
| Seat Tube Angle | 73.75 ° | 73.75 ° | 73.75 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 101 mm | 115 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1106 mm | 1131 mm | 1172 mm |
| Bottom Bracket Drop | 59 mm | 60 mm | 61 mm |
| Standover Height | 796 mm | 814 mm | 866 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
OPTIMATOR Frame Only is part of the Sage Optimator model. 4 frames variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry frames average price
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3100$. Comparing this to the average Crosscountry frame price, we see that the price is 83.54% higher.
OPTIMATOR Frame Only components
Sizes
This frame is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
