Salsa Confluence Flat Bar CUES 11 2024
2024 E-bike
Estimate price |
2,999$
Weight | 14.97 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset CUES, FSA -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
142cm - 152cm
SM
150cm - 164cm
MD
162cm - 174cm
LG
172cm - 184cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Confluence
Suspension Fork
Confluence Carbon Deluxe
Drivetrain
Rear Derailleur
Shimano CUES U6000
Front Derailleur
N/A
Shift Levers
Shimano CUES U6000-11R
Cassette
Shimano CUES, 11-speed, 11–50t
Crank
FSA Omega Megaexo, 40t
Bottom Bracket
FSA BB-4000
Chain
Shimano LG500
Wheels
Front Hub
WTB Serra
Rear Hub
MAHLE X35+
Rims
WTB ST i23, 32h
Tires
Front: Teravail Washburn 700c x 42mm, Durable casing, wire bead, Rear: Teravail Washburn 700c x 42mm, Durable casing, wire bead
Brakes
Brakes
Shimano UR300
Brake Levers
Shimano MT201
Cockpit
Stem
Salsa Guide
Handlebar
Salsa Salt Flat
Headset
FSA
Seat
Saddle
WTB Volt
Seatpost
Promax SP-2016
Motor & Battery
Motor
MAHLE X35+
Battery
250Wh
Fit data

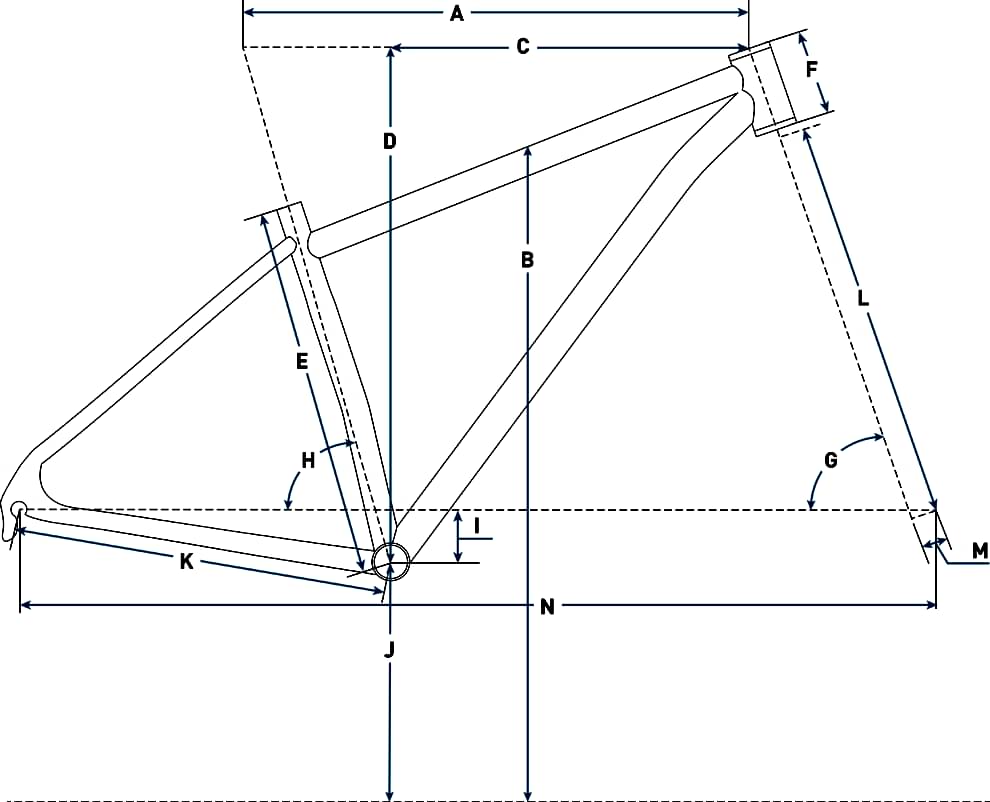

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.294 mm | 1.325 mm | 1.356 mm | 1.4 mm | 1.441 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 626 mm | 647 mm | 680 mm | 709 mm | 737 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 510 mm | 538 mm | 575 mm | 613 mm | 650 |
| Reach | 394 mm | 406 mm | 424 mm | 438 mm | 451 mm |
| Top Tube Length | 550 mm | 570 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 340 mm | 380 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 120 mm | 160 mm | 200 mm | 240 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1056 mm | 1078 mm | 1111 mm | 1140 mm | 1168 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 622 mm | 659 mm | 721 mm | 761 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 142 cm | 150 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 152 cm | 164 cm | 174 cm | 184 cm | 193 cm |
