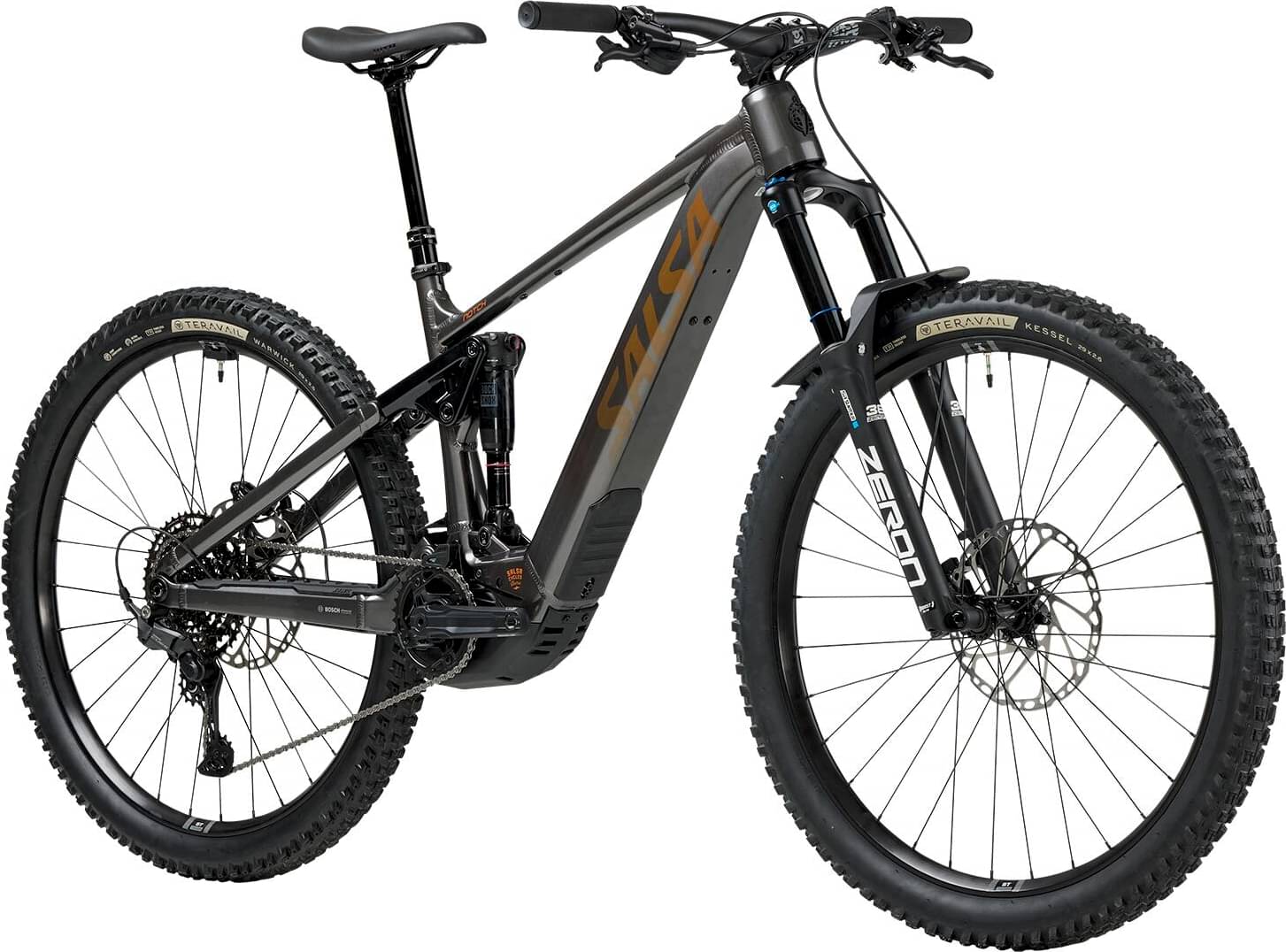

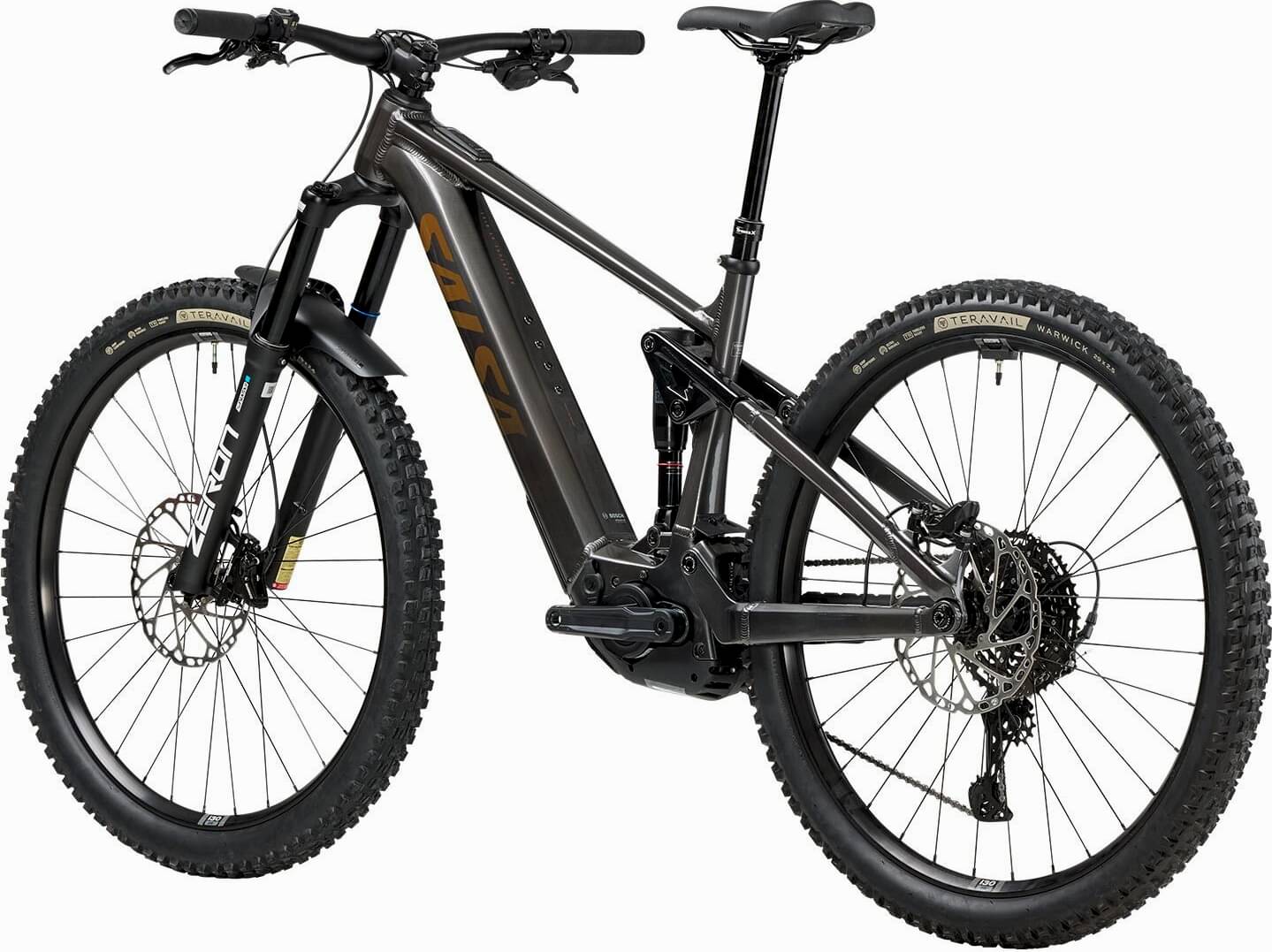

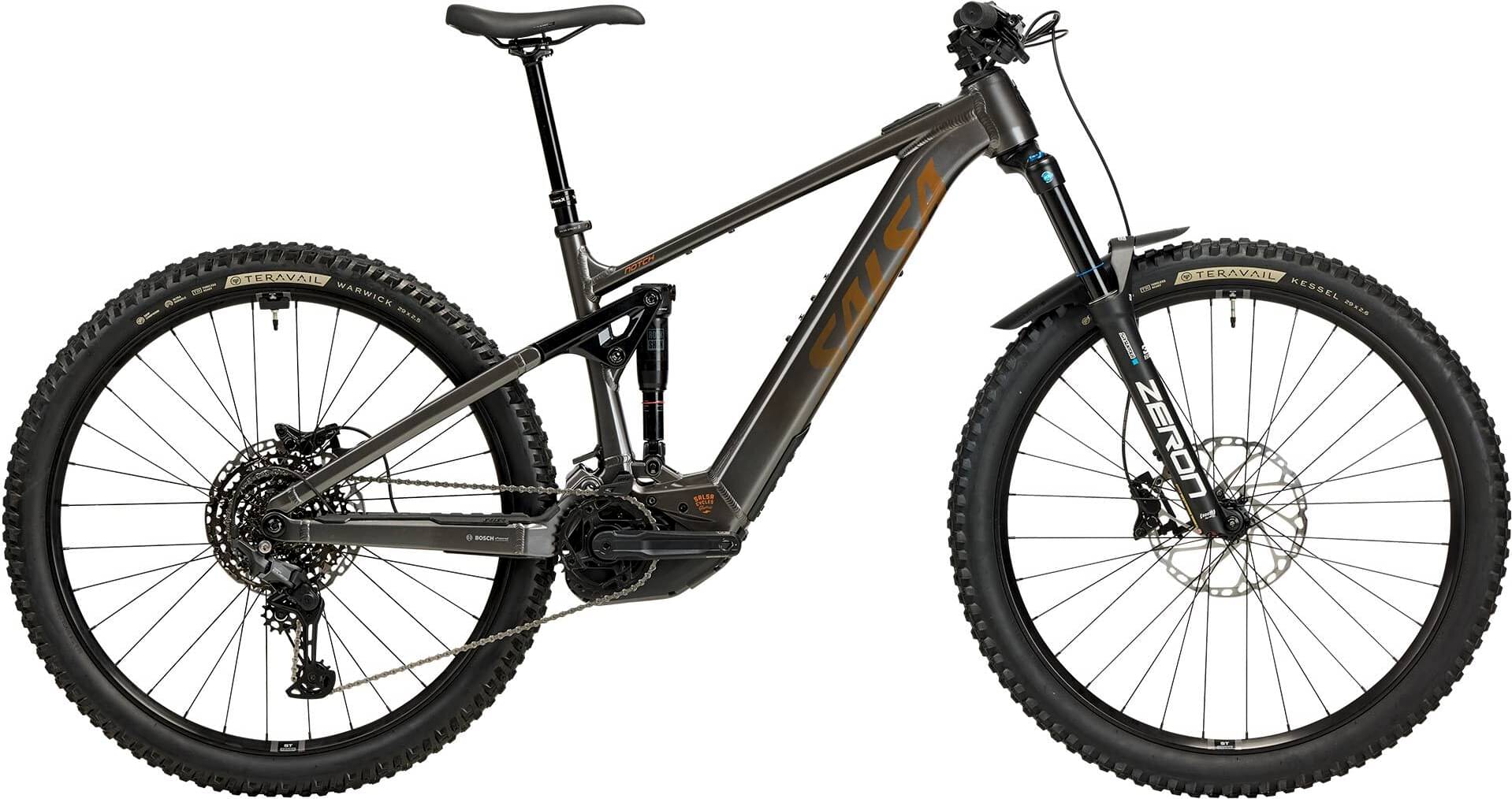

Salsa Notch Cues 10 2024
2024 E-bike
Estimate price |
4,999$
Weight | 25.97 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork Suntour Zeron
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
168cm - 180cm
LG
178cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Notch Aluminum
Suspension Fork
SR Suntour ZERON36 Boost EQ, 160mm
Rear Shock
Rockshox Deluxe Select
Drivetrain
Rear Derailleur
Shimano U6000 SHADOW RD+
Front Derailleur
N/A
Shift Levers
Shimano U6000-10R
Cassette
Shimano LINKGLIDE LG400, 11–48t, 10-speed
Crank
FSA CK-762 w/ 55mm CL, 104 BCD spider & MegaTooth 34t steel chainring. MRP 1x SL TR2 for Bosch Performance Line CX BDU37
Bottom Bracket
Bosch BDU37
Chain
Shimano LG500 LINKGLIDE
Wheels
Front Hub
Shimano TC500-15-B, 32h
Rear Hub
Shimano TC500-MS-B, 32h
Rims
WTB ST i30 Tough, TCS
Tires
Front: Teravail Kessel 29 x 2.6", Ultra Durable casing, WTB TCS Sealant included (tubes installed), Rear: Teravail Warwick 29 x 2.5", Ultra Durable casing, WTB TCS Sealant included (tubes installed)
Brakes
Brakes
Shimano MT420
Brake Levers
Shimano M4100
Cockpit
Stem
Salsa Guide 40mm
Handlebar
RaceFace Chester, SM, MD: 780mm wide, 20mm rise; LG, XL: 780mm wide, 35mm rise
Headset
ACROS AZX-721 ZS56/ZS66 for 1.5" tapered steerer
Seat
Saddle
WTB Solano, Medium, Fusion Form, steel rail
Seatpost
Tranz X YSP18, SM: 150mm travel; MD, LG, XL: 170mm travel
Motor & Battery
Motor
Bosch Performance Line CX - BDU37
Battery
500Wh
Charger
Yes
Fit data

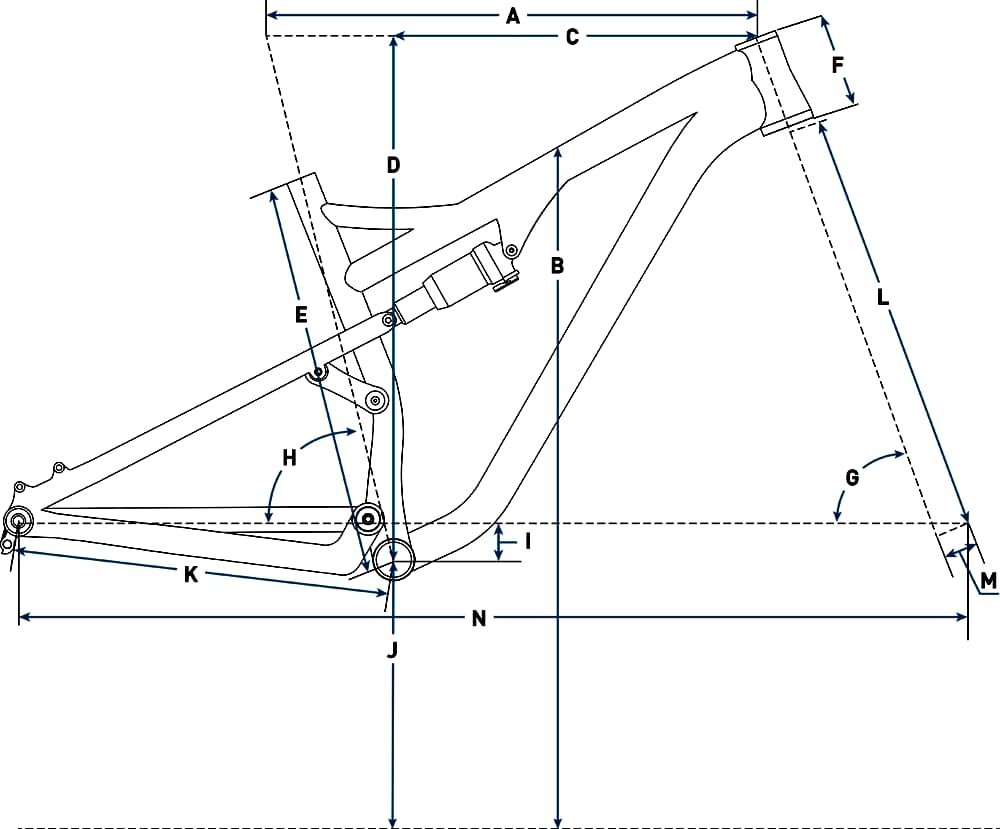

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.296 mm | 1.249 mm | 1.218 mm | 1.189 mm |
| Bottom Bracket Height | 358 mm | 358.2 mm | 358.3 mm | 358.4 mm |
| Front Center | 813 mm | 836 mm | 860 mm | 885 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 131 mm | 131 mm | 132 mm | 131 mm |
| Stack | 619 mm | 623.3 mm | 632.2 mm | 641.1 mm |
| Reach | 477.8 mm | 498.9 mm | 519 mm | 539.1 mm |
| Top Tube Length | 588.1 mm | 609.9 mm | 631.6 mm | 653.3 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Seat Tube Length | 405 mm | 430 mm | 455 mm | 480 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1254 mm | 1277 mm | 1301 mm | 1326 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 752 mm | 751 mm | 751 mm | 751 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 191 cm | cm |
