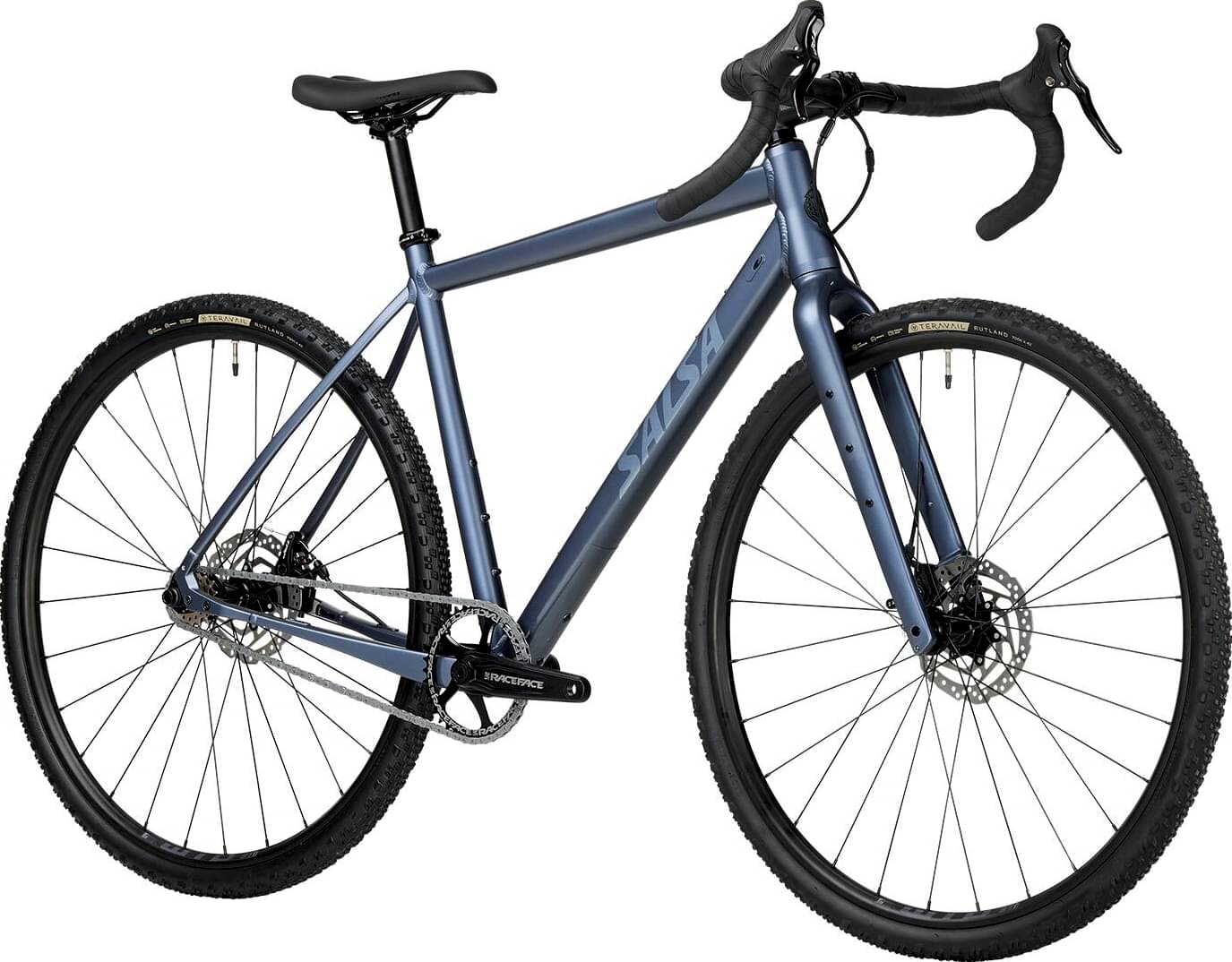

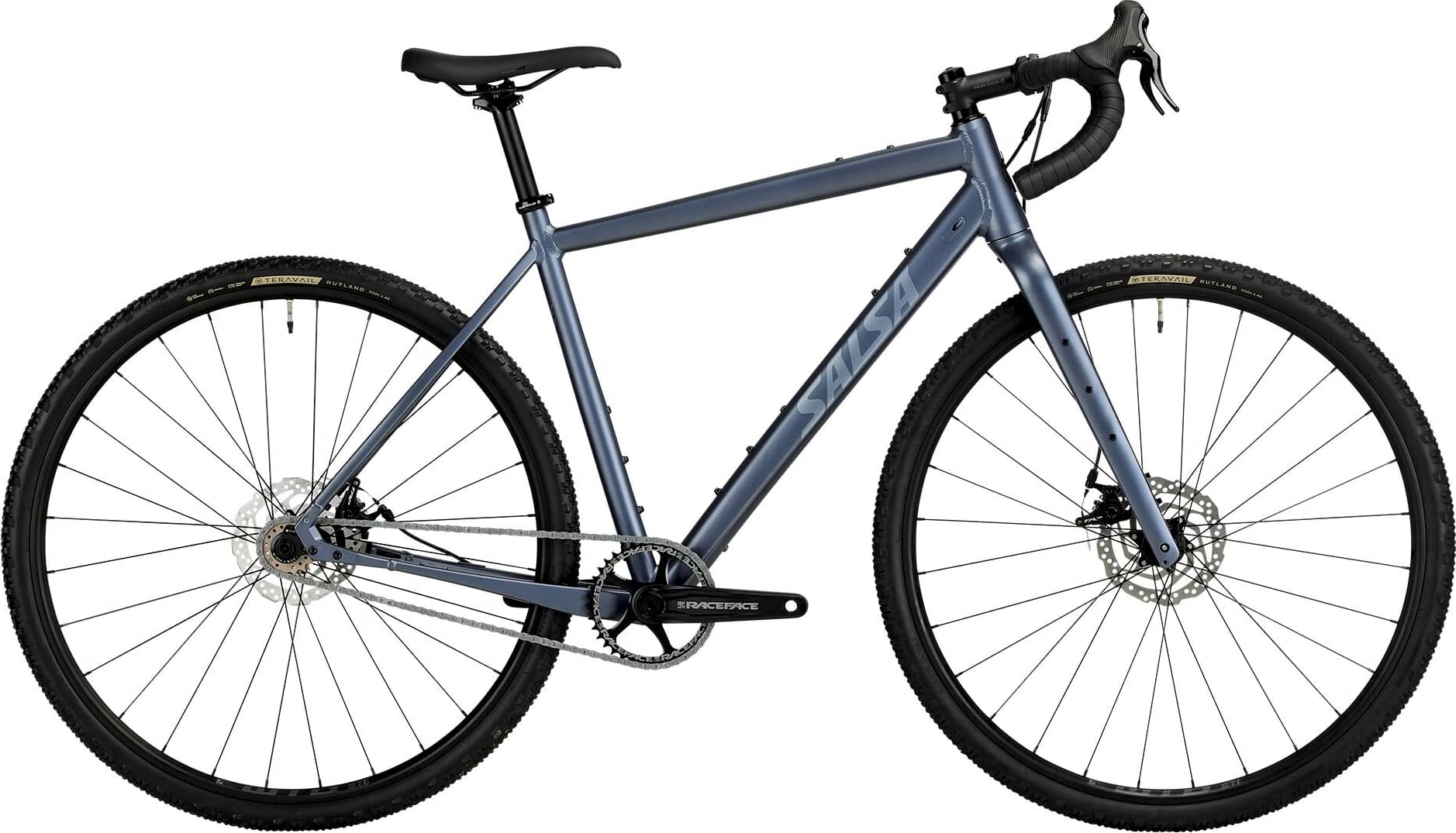

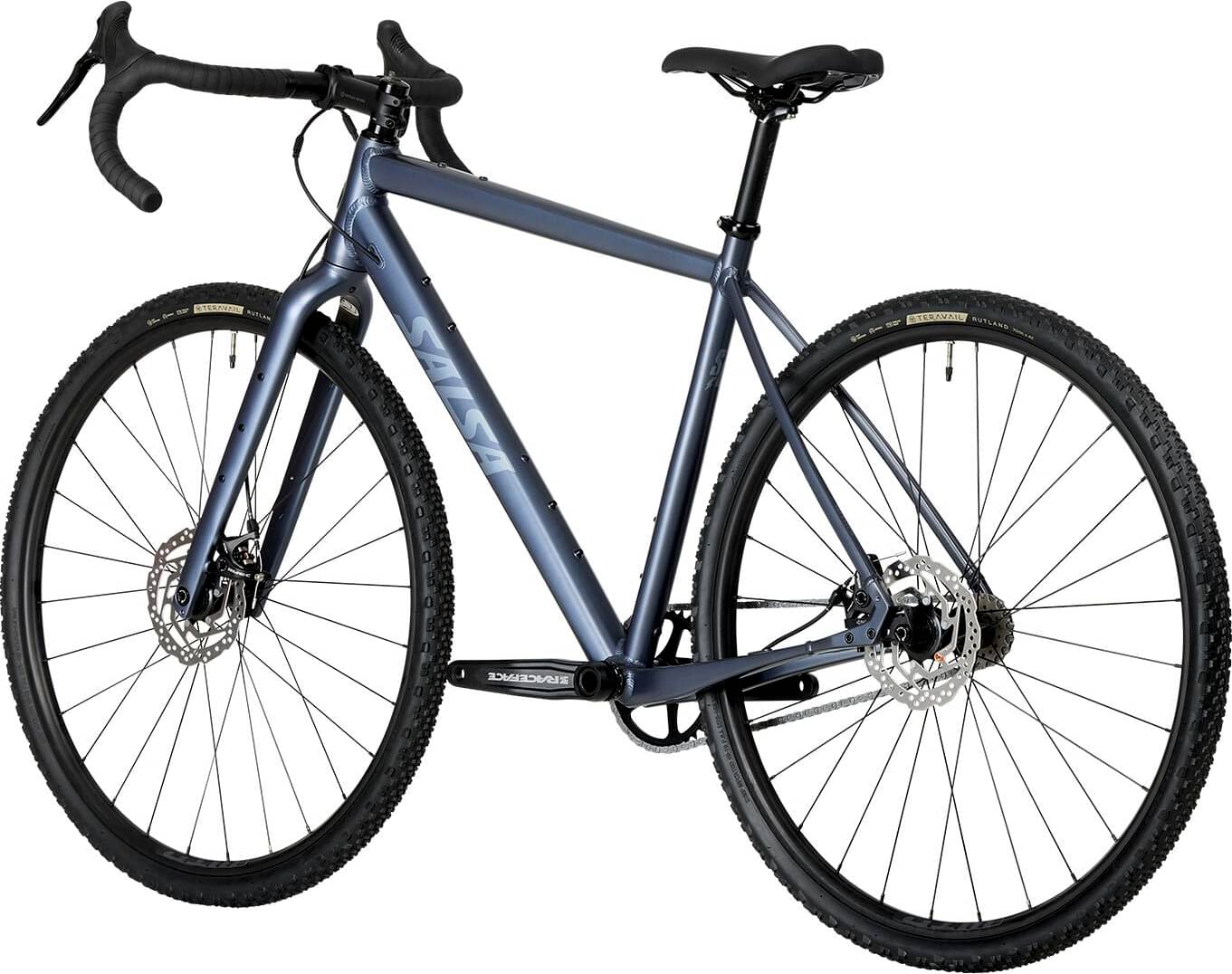

Salsa Stormchaser Single Speed 2024
2024 Road
Estimate price |
1,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Race Face -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
49cm
142cm - 157cm
52.5cm
155cm - 165cm
54.5cm
162cm - 173cm
56cm
170cm - 180cm
57.5cm
178cm - 188cm
59cm
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stormchaser Aluminum
Suspension Fork
Stormchaser C
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Spacer kit with 17t and 18t cog
Crank
Race Face Ride, 38t
Bottom Bracket
73 mm BSA, threaded
Chain
KMC Z1eHX EPT Anti-Rust
Wheels
Rims
Front: Shimano RS470 12 x 100 mm hub, WTB ST TCS 2.0 i23 29" rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed, Rear: Shimano RS470 12 x 142 mm hub, WTB ST TCS 2.0 i23 29" rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed
Tires
Teravail Rutland 700 x 42 mm, tubeless ready, Durable casing
Brakes
Brakes
TRP Spyre mechanical disc brakes, Shimano RT10 rotors (Center Lock, 160 mm)
Cockpit
Stem
Salsa Guide
Handlebar
Salsa Cowchipper
Seat
Saddle
WTB Volt Medium Steel
Seatpost
Salsa Guide
Fit data

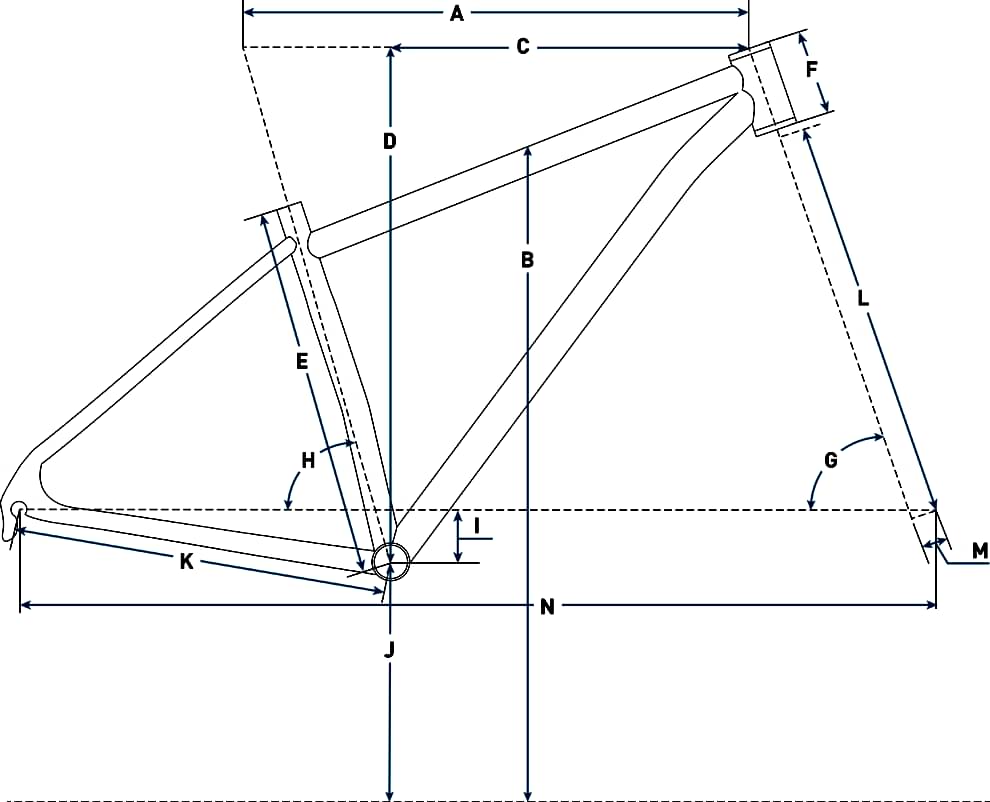

Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.466 mm | 1.509 mm | 1.521 mm | 1.531 mm | 1.544 mm | 1.55 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 592 mm | 602 mm | 612 mm | 628 mm | 643 mm | 659 mm | 675 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 73 mm | 73 mm | 72 mm | 72 mm | 73 mm | 72 mm | 73 mm |
| Stack | 530 mm | 544 mm | 563 mm | 581 mm | 600 mm | 619 mm | 637 mm |
| Reach | 366 mm | 371 mm | 373 mm | 382 mm | 392 mm | 401 mm | 411 mm |
| Top Tube Length | 506 mm | 527 mm | 545 mm | 560 mm | 575 mm | 590 mm | 605 mm |
| Seat Tube Angle | 75.25 ° | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73.1 ° |
| Seat Tube Length | 390 mm | 440 mm | 475 mm | 510 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1017 mm | 1027 mm | 1037 mm | 1053 mm | 1069 mm | 1085 mm | 1101 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 686 mm | 727 mm | 756 mm | 786 mm | 794 mm | 820 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 142 cm | 155 cm | 162 cm | 170 cm | 178 cm | 185 cm | 190 cm |
| Rider Max Height | 157 cm | 165 cm | 173 cm | 180 cm | 188 cm | 193 cm | cm |
