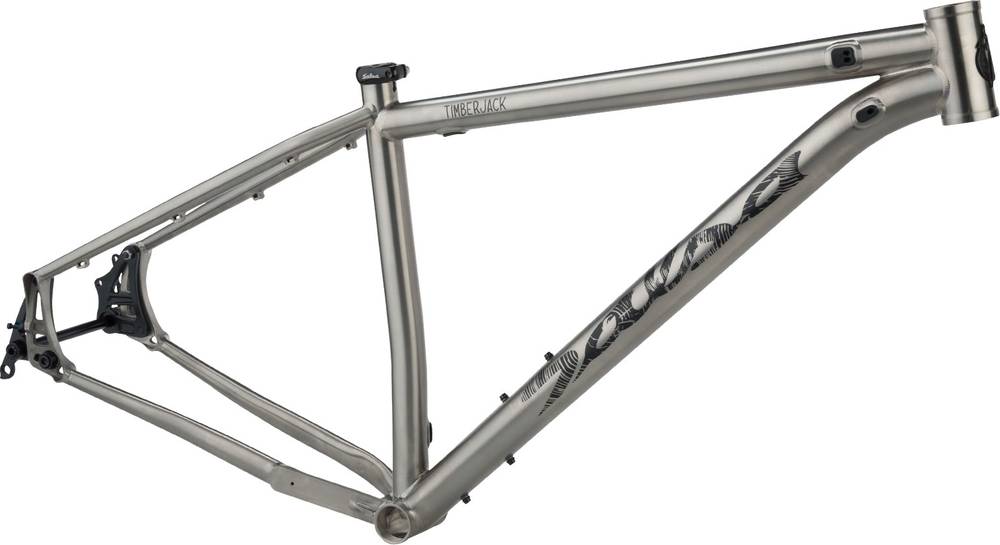

Salsa TIMBERJACK TI FRAME 2017

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
Frame Titanium
Wheels 27.5" / 29"
Suspension Rigid

Sizing

Recommended size guide.

XS
157cm - 168cm
XS
157cm - 168cm
SM
160cm - 175cm
SM
160cm - 175cm
MD
173cm - 183cm
MD
173cm - 183cm
LG
180cm - 191cm
LG
180cm - 191cm
XL
185cm - 195cm
XL
185cm - 195cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Suspension Fork

511–541mm (100–130mm)

Drivetrain

Bottom Bracket

73mm BSA, threaded

Brakes

Disk Rotors

51mm I.S. (160–180mm)

Seat

Seatpost

31.6mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XS	XS	SM	SM	MD	MD	LG	LG	XL	XL
Stack Reach Ratio	1.55 mm	1.55 mm	1.48 mm	1.48 mm	1.41 mm	1.41 mm	1.35 mm	1.35 mm	1.3 mm	1.3 mm
Bottom Bracket Height	298 mm	317 mm	298 mm	317 mm	298 mm	317 mm	298 mm	317 mm	298 mm	317 mm
Front Center	671 mm	671 mm	691 mm	691 mm	711 mm	711 mm	742 mm	742 mm	773 mm	773 mm
Rake	51 mm	51 mm	51 mm	51 mm	51 mm	51 mm	51 mm	51 mm	51 mm	51 mm
Trail	89 mm	97 mm	89 mm	97 mm	89 mm	97 mm	89 mm	97 mm	89 mm	97 mm
Stack	614.6 mm	614.6 mm	614.6 mm	614.6 mm	614.6 mm	614.6 mm	623.6 mm	623.6 mm	637.6 mm	637.6 mm
Reach	396.6 mm	396.6 mm	416.6 mm	416.6 mm	436.6 mm	436.6 mm	463.6 mm	463.6 mm	489.6 mm	489.6 mm
Top Tube Length	576.6 mm	576.6 mm	596.6 mm	596.6 mm	616.6 mm	616.6 mm	646.6 mm	646.6 mm	676.6 mm	676.6 mm
Seat Tube Angle	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °	73.5 °
Seat Tube Length	355.6 mm	355.6 mm	381 mm	381 mm	431.8 mm	431.8 mm	482.6 mm	482.6 mm	533.4 mm	533.4 mm
Head Tube Angle	67.9 °	67.9 °	67.9 °	67.9 °	67.9 °	67.9 °	67.9 °	67.9 °	67.9 °	67.9 °
Head Tube Length	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	110 mm	110 mm	125 mm	125 mm
Chainstay Length	426 mm	426 mm	426 mm	426 mm	426 mm	426 mm	426 mm	426 mm	426 mm	426 mm
Wheelbase	1091 mm	1091 mm	1111 mm	1111 mm	1131 mm	1131 mm	1162 mm	1162 mm	1193 mm	1193 mm
Bottom Bracket Drop	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm
Standover Height	714 mm	714 mm	730 mm	730 mm	765 mm	765 mm	802 mm	802 mm	840 mm	840 mm
Wheels	27"	29"	27"	29"	27"	29"	27"	29"	27"	29"
Rider Min Height	157 cm	157 cm	160 cm	160 cm	173 cm	173 cm	180 cm	180 cm	185 cm	185 cm
Rider Max Height	168 cm	168 cm	175 cm	175 cm	183 cm	183 cm	191 cm	191 cm	195 cm	195 cm

Model Overview

TIMBERJACK TI FRAME completes the Salsa Timberjack model. There are 36 frames that carry this model name.

Safety

Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.

Crosscountry frames average price

If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.

This frame was released in 2017 and its price was 3049$. In conclusion, this frame price is 80.52% higher than the price of the average Crosscountry frame.

Crosscountry frames average weight

Crosscountry frames weigh an average of 2.04 kg (4.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.

considerably lighter than average, TIMBERJACK TI FRAME has a weight of 1.81 kg (3.99 lbs). In other words, this model is 12.71% lighter than the average Crosscountry frame.

Overview of components

Sizes

There are 10 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
