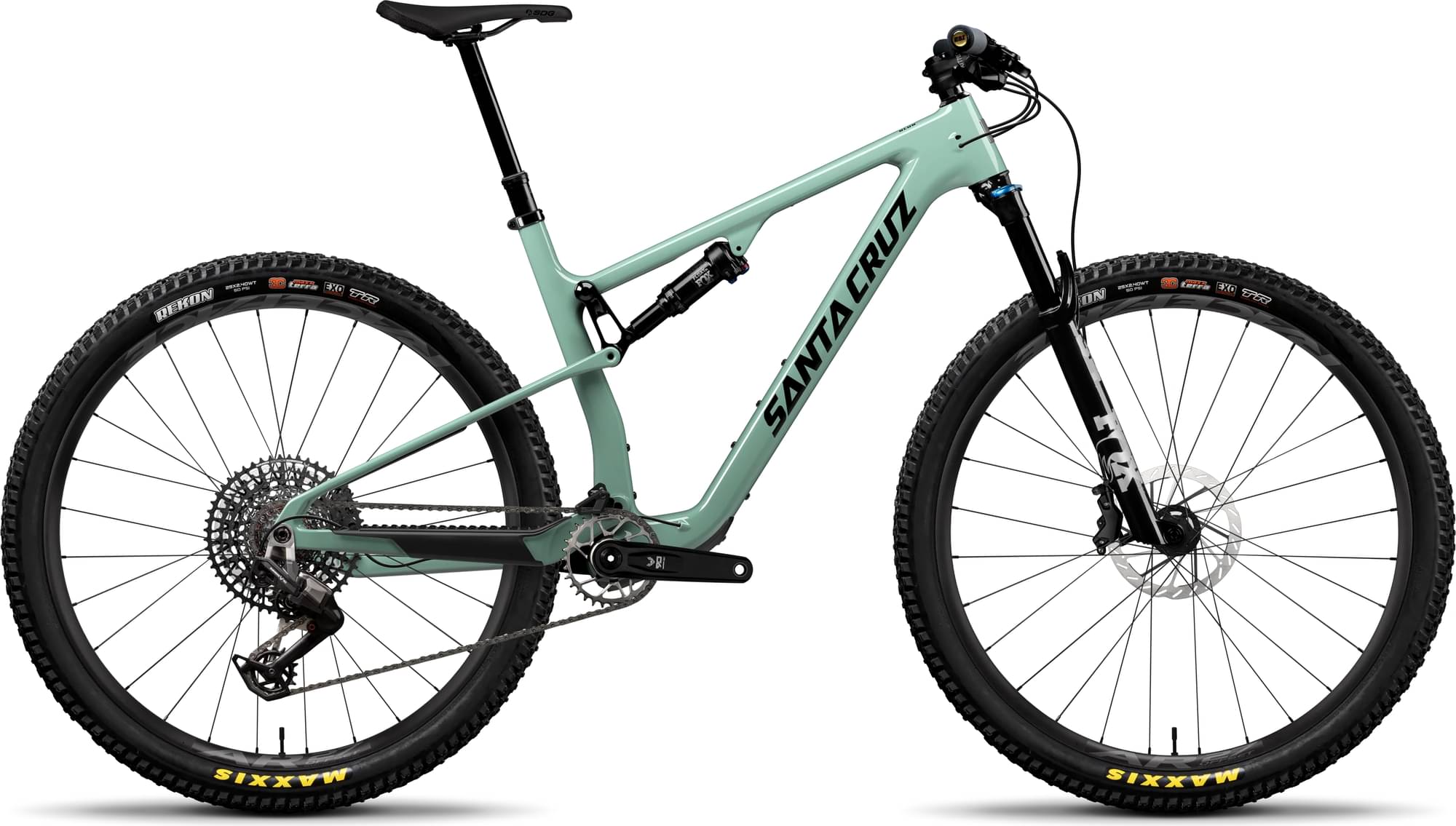

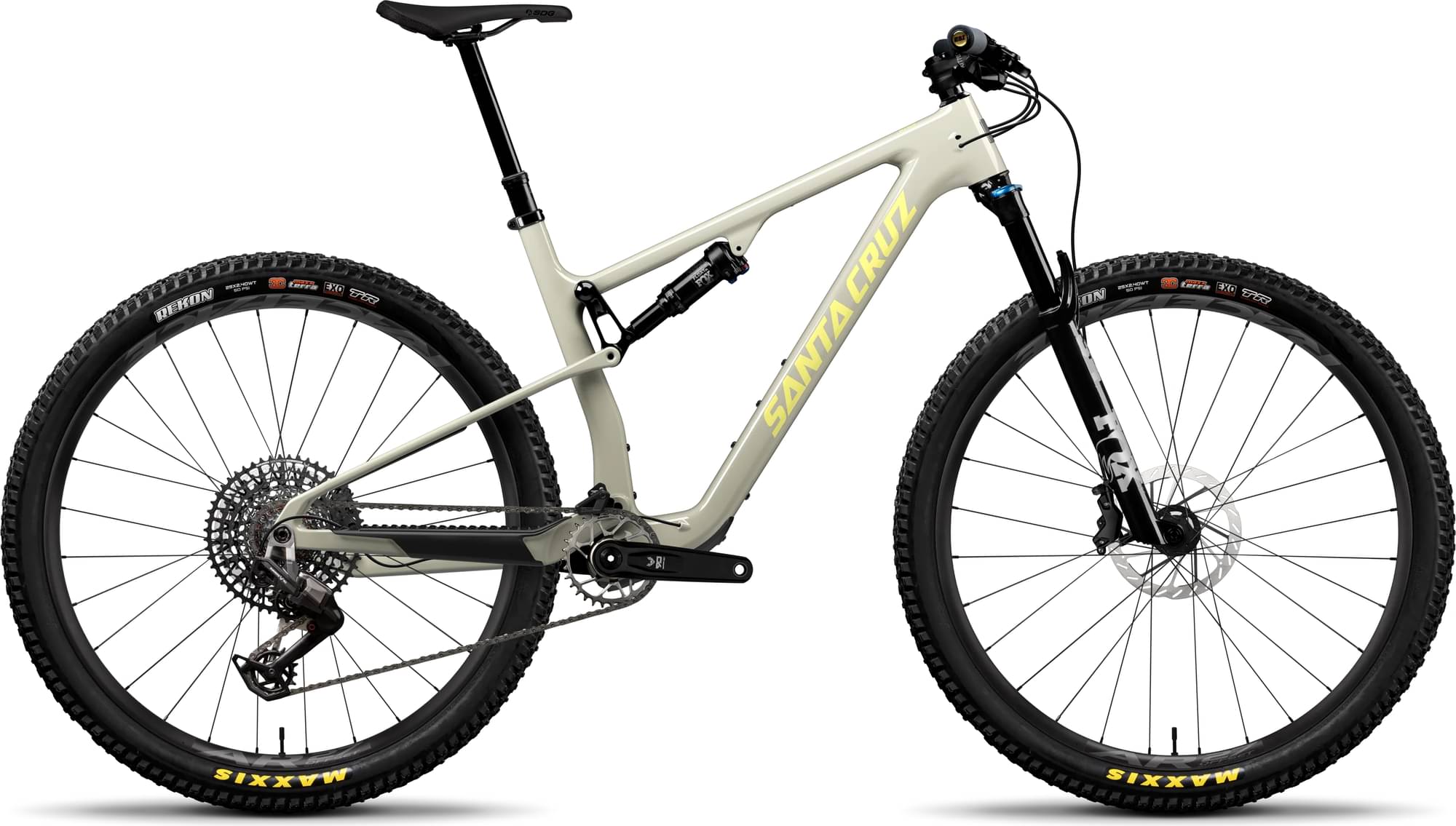

Santa Cruz Blur 90 Trail 2026
2026 Mountain
Estimate price |
5,699$
Weight | 12.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Performance Float 34
-
Groupset SRAM -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM DB8 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon C 29" 115mm Travel Superlight™
Suspension Fork
FOX 34 SL Float Performance, Grip, 120mm
Rear Shock
FOX Float SL Performance, 190x45
Drivetrain
Rear Derailleur
SRAM 90 Eagle T-Type, 12spd
Shift Levers
SRAM 90 Eagle T-Type, 12spd
Cassette
SRAM XS 1275 Eagle T-Type, 10-52t
Crank
SRAM 90 Eagle DUB T-Type Crankset, 34t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Front: DT Swiss 370, 15x110, 6-Bolt, 28h, Rear: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Hub
Front: DT Swiss 370, 15x110, 6-Bolt, 28h, Rear: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: RaceFace AR Offset 27 29", Rear: RaceFace AR Offset 27 29"
Tires
Front: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO, Rear: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Brakes
Brakes
Front: SRAM DB8
Cockpit
Stem
SRAM Atmos Stem, 60mm
Handlebar
SRAM Atmos Flat Bar, 31.8x760
Headset
Cane Creek 50 IS Integrated Headset
Seat
Saddle
SDG Bel-Air V3 Lux-Alloy
Seatpost
OneUp Dropper Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.364 mm | 1.326 mm | 1.286 mm |
| Bottom Bracket Height | 339.9 mm | 339.7 mm | 339.6 mm | 339.4 mm |
| Front Center | 695 mm | 723.7 mm | 747.4 mm | 778 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 108 mm | 109 mm | 109 mm | 109 mm |
| Stack | 587.4 mm | 597 mm | 606.5 mm | 620.7 mm |
| Reach | 412.3 mm | 437.8 mm | 457.5 mm | 482.5 mm |
| Top Tube Length | 568.4 mm | 597.3 mm | 621.4 mm | 651.7 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° | 74.8 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 433 mm | 435 mm | 438 mm |
| Wheelbase | 1125 mm | 1157 mm | 1183 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 33 mm |
| Standover Height | 744 mm | 746 mm | 745 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
