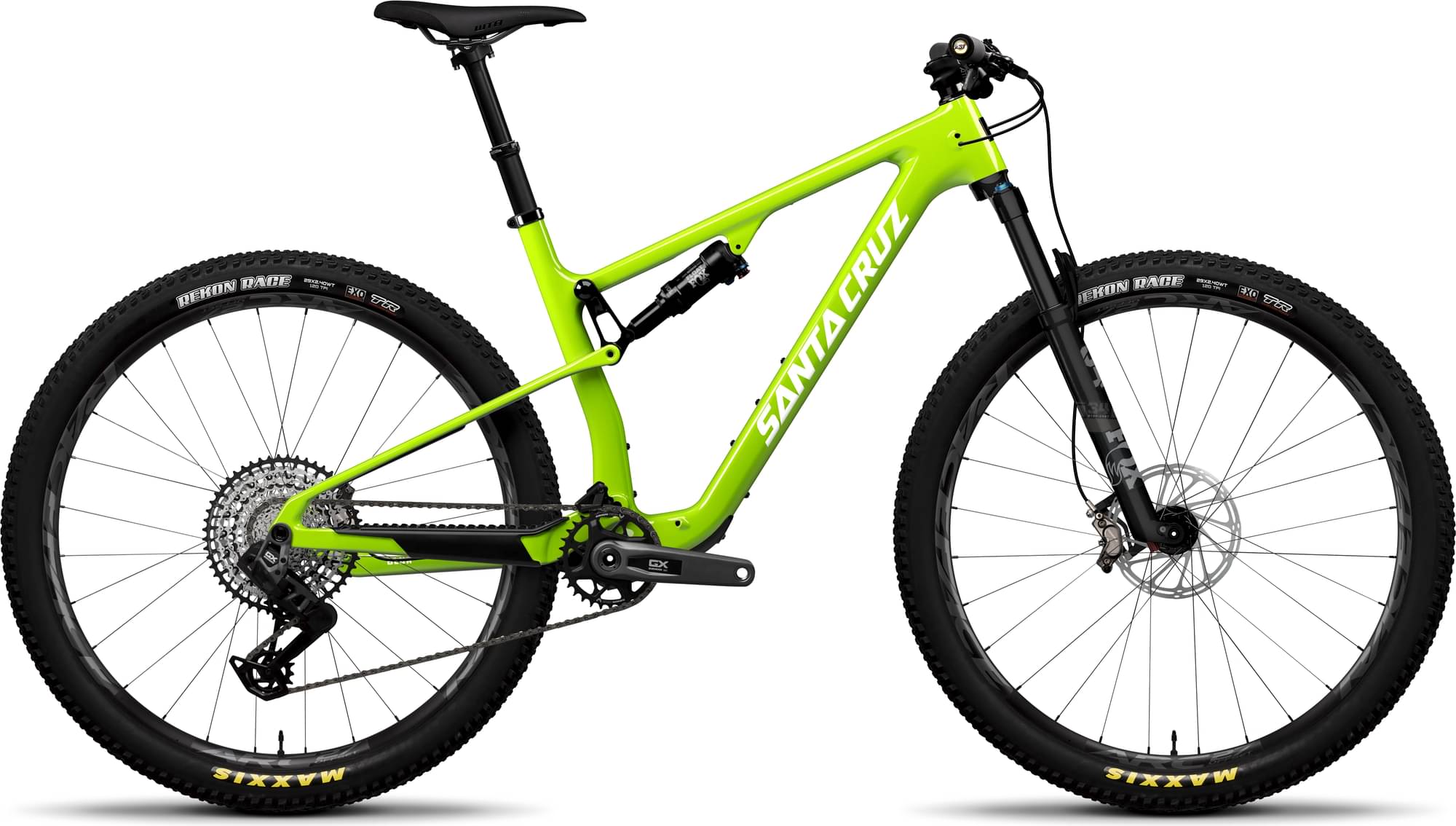

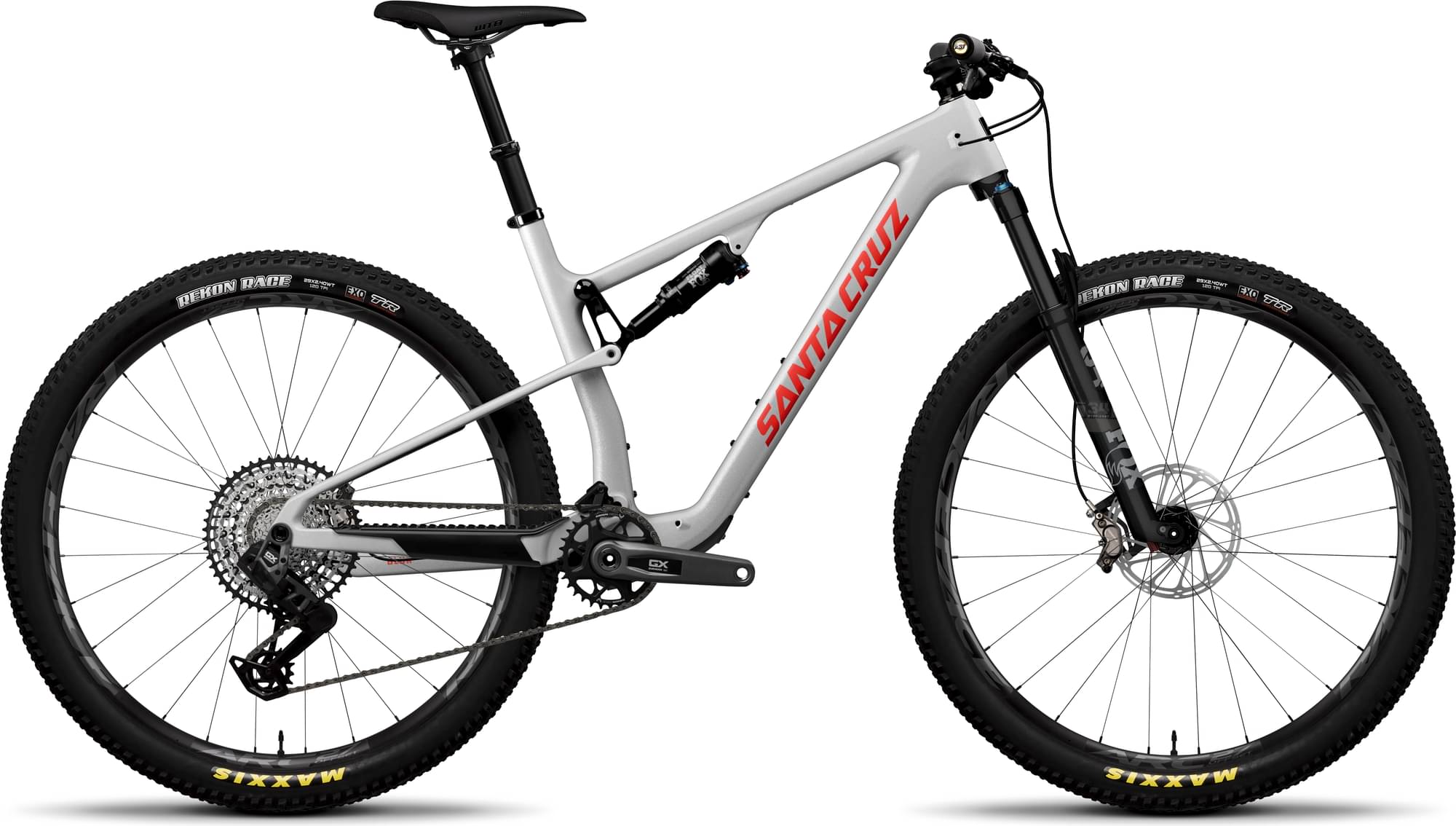

Santa Cruz Blur GX AXS Trail / Carbon C 2024
2024 Mountain
Estimate price |
8,028$
Weight | 11.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Performance Elite Float 34
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Bronze Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 34SC Float Performance Elite, 120mm
Rear Shock
FOX Float Performance Elite, 190x45
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Front Derailleur
No compatibility
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
SRAM GX Eagle DUB T-Type Crankset. 34t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Front: DT Swiss 370, 15x110, 6-Bolt, 28h, Rear: DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Hub
Front: DT Swiss 370, 15x110, 6-Bolt, 28h, Rear: DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: RaceFace ARC Offset 27 29", Rear: RaceFace ARC Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.4"WT, EXO, Rear: Maxxis Rekon Race 29"x2.4"WT, EXO
Brakes
Brakes
SRAM Level Bronze Stealth 4-Piston
Cockpit
Stem
SRAM Atmos Stem, 60mm
Handlebar
Santa Cruz Carbon
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
FOX Transfer SL Performance Dropper, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.364 mm | 1.326 mm | 1.286 mm |
| Bottom Bracket Height | 339.9 mm | 339.7 mm | 339.6 mm | 339.4 mm |
| Front Center | 695 mm | 723.7 mm | 747.4 mm | 778 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 108 mm | 109 mm | 109 mm | 109 mm |
| Stack | 587.4 mm | 597 mm | 606.5 mm | 620.7 mm |
| Reach | 412.3 mm | 437.8 mm | 457.5 mm | 482.5 mm |
| Top Tube Length | 568.4 mm | 597.3 mm | 621.4 mm | 651.7 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° | 74.8 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 433 mm | 435 mm | 438 mm |
| Wheelbase | 1125 mm | 1157 mm | 1183 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 33 mm |
| Standover Height | 744 mm | 746 mm | 745 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
