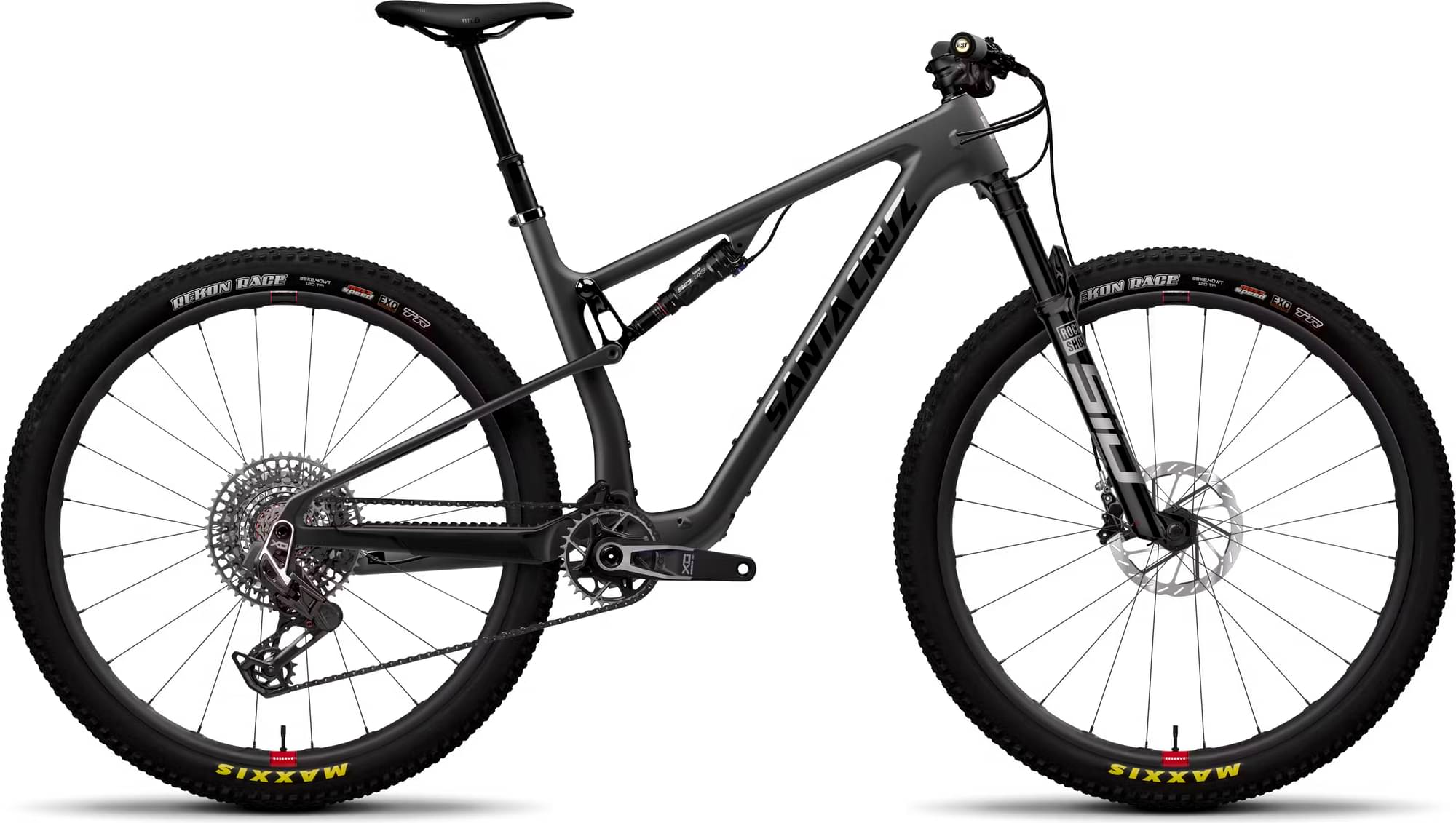

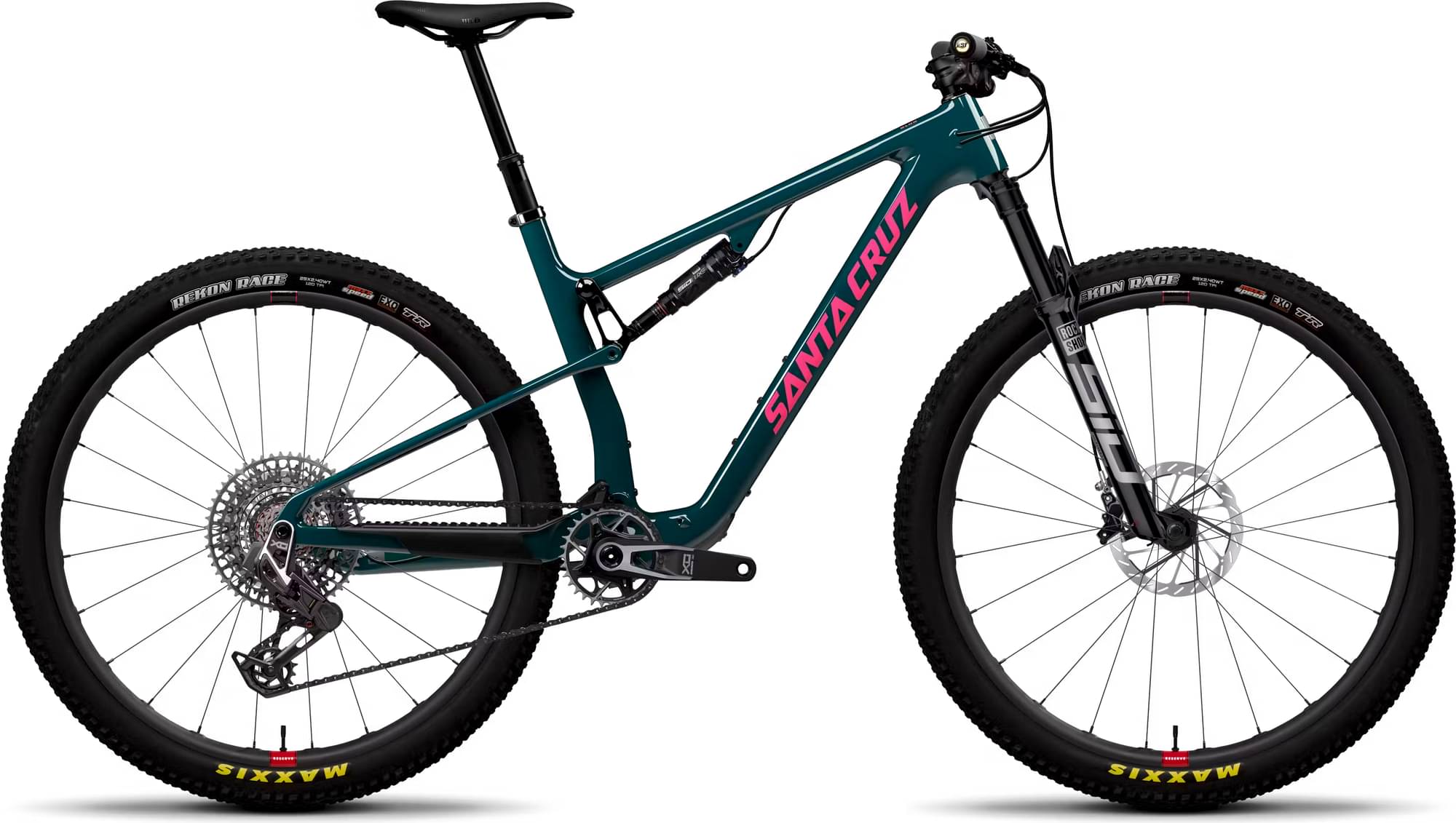

Santa Cruz BLUR X0 AXS RSV / Carbon CC 2025
2025 Mountain
Estimate price |
8,999$
Weight | 11.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 115mm -
Fork RockShox SID SL Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BLUR X0 AXS RSV / Carbon CC
Suspension Fork
RockShox SID SL Ultimate, 3-Position, 110mm, w/ Remote
Rear Shock
RockShox SidLuxe Ultimate, 3-Position, w/Remote, 190x42.5
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Controller Rocker Paddle
Cassette
SRAM X0 Eagle T-Type, 10-52t
Crank
SRAM X0 Eagle DUB T-Type Crankset, 34t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM X0 Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
DT Swiss 350, 15x110, Centerlock, 24h
Rear Hub
DT Swiss 350, 12x148, XD, Centerlock, 24h, 36t
Rims
Front: Reserve 28|XC Carbon, Rear: Reserve 28|XC Carbon
Tires
Front: Maxxis Rekon Race 29"x2.4" 3C MaxxSpeed, EXO, Rear: Maxxis Rekon Race 29"x2.4" 3C MaxxSpeed, EXO
Brakes
Brakes
SRAM Level Silver Stealth 4-Piston
Cockpit
Stem
SRAM Atmos 7k, 60mm
Handlebar
Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
Grips
SRAM Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Fusion, CroMo SL
Seatpost
OneUp Dropper Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.361 mm | 1.306 mm | 1.27 mm | 1.234 mm |
| Bottom Bracket Height | 330.5 mm | 330.5 mm | 330.5 mm | 330.5 mm |
| Front Center | 685.8 mm | 714.5 mm | 738.2 mm | 768.7 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 578.3 mm | 587.6 mm | 596.9 mm | 610.8 mm |
| Reach | 425 mm | 450 mm | 470 mm | 495 mm |
| Top Tube Length | 563.9 mm | 592.8 mm | 616.9 mm | 647.2 mm |
| Seat Tube Angle | 76.5 ° | 76.3 ° | 75.8 ° | 75.7 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.3 ° | 68.3 ° | 68.3 ° | 68.3 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 435 mm | 437 mm |
| Wheelbase | 1115 mm | 1147 mm | 1173 mm | 1206 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 736 mm | 740 mm | 739 mm | 745 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 196 cm |
