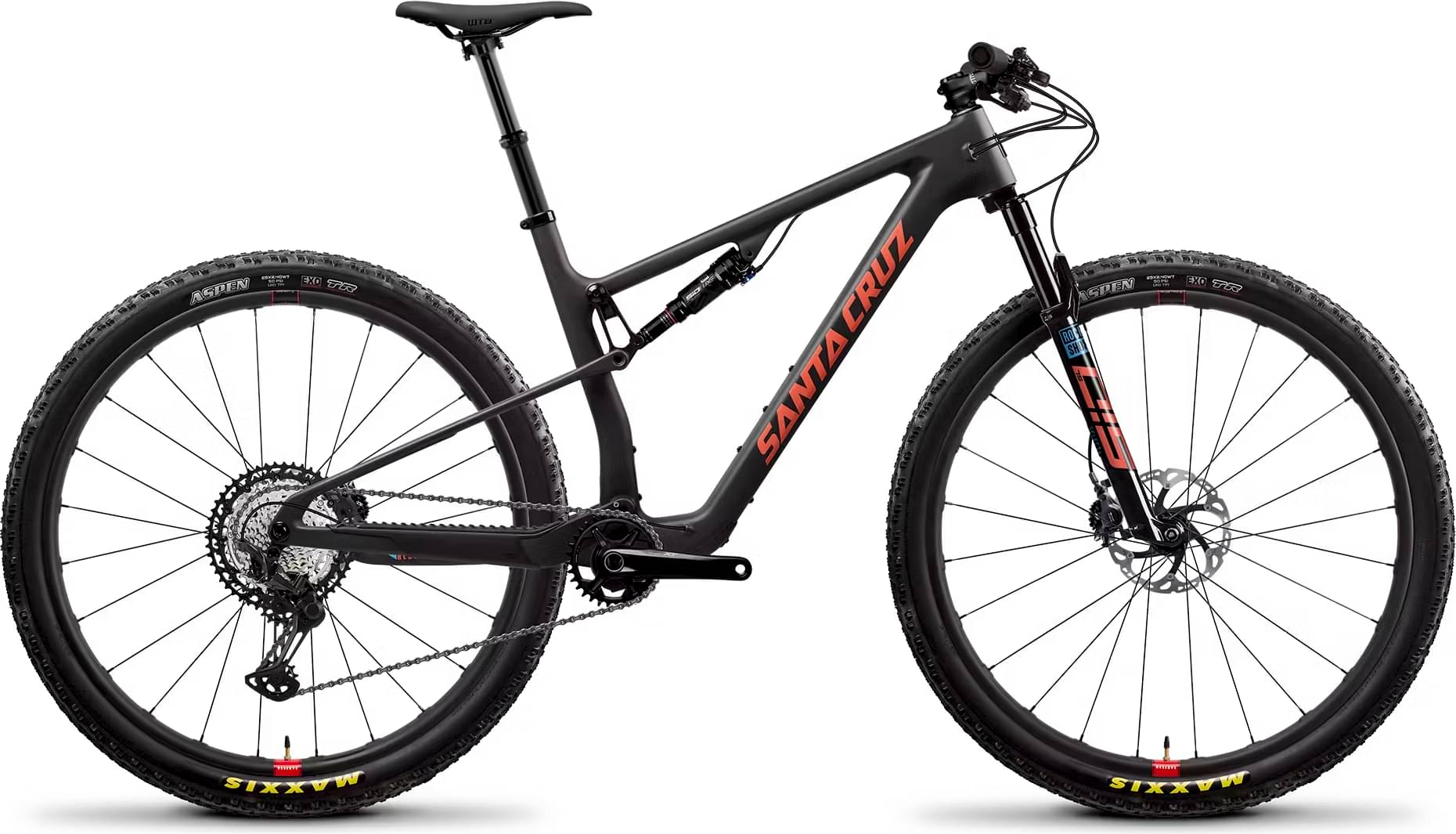

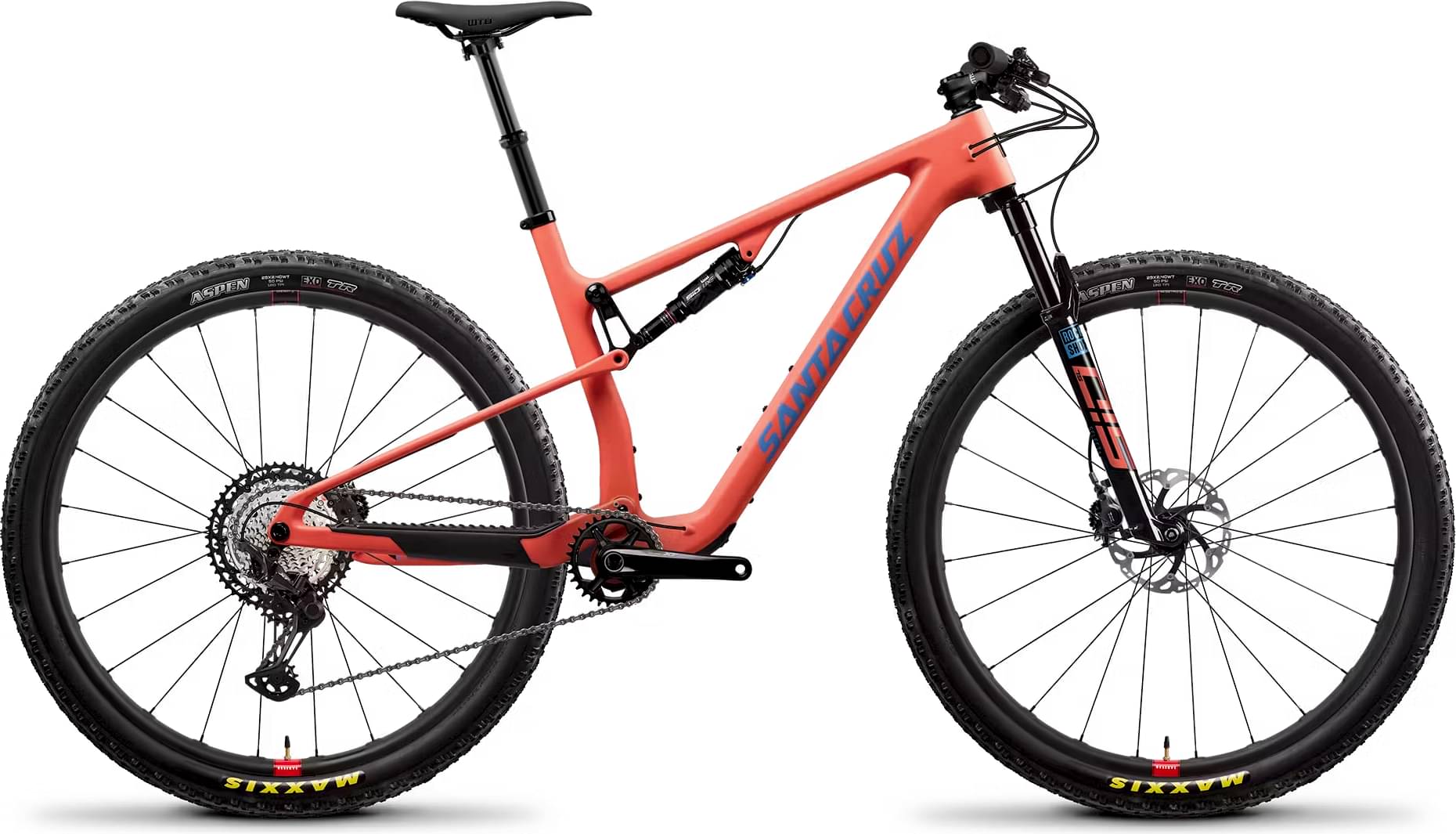

Santa Cruz BLUR XT RSV / Carbon C 2024
2024 Mountain
Estimate price |
9,174$
Weight | 11.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID SL Select
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BLUR XT RSV / Carbon C
Suspension Fork
RockShox Sid SL Select+, 100mm w/Remote
Rear Shock
RockShox SidLuxe Select+
Drivetrain
Rear Derailleur
Shimano XT M8100, 12spd
Shift Levers
Shimano XT M8100, 12spd
Cassette
Shimano XT M8100, 12spd, 10-51t
Crank
Shimano XT M8120 34t
Bottom Bracket
Shimano XT 68/73mm Threaded BB
Chain
Shimano XT, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Industry Nine 1/1, 110x15, Centerlock, 24h
Rear Hub
Industry Nine 1/1, 148x12, Miscrospline, Centerlock, 24h
Rims
Reserve 28 XC 29" Carbon Rims
Spokes
Sapim D-Light
Tires
Front: Maxxis Aspen, 29"x2.4WT, EXO, TR, Rear: Maxxis Aspen, 29"x2.4WT, EXO, TR
Brakes
Brakes
Shimano XT 8100
Cockpit
Stem
SRAM Atmos Stem, 60mm
Handlebar
Santa Cruz Bicycles Carbon Flat Bar
Grips
SRAM Twistlock
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle
Seatpost
FOX Transfer SL Performance Elite, 100mm, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.361 mm | 1.306 mm | 1.27 mm | 1.234 mm |
| Bottom Bracket Height | 330.5 mm | 330.5 mm | 330.5 mm | 330.5 mm |
| Front Center | 685.8 mm | 714.5 mm | 738.2 mm | 768.7 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 578.3 mm | 587.6 mm | 596.9 mm | 610.8 mm |
| Reach | 425 mm | 450 mm | 470 mm | 495 mm |
| Top Tube Length | 563.9 mm | 592.8 mm | 616.9 mm | 647.2 mm |
| Seat Tube Angle | 76.5 ° | 76.3 ° | 75.8 ° | 75.7 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.3 ° | 68.3 ° | 68.3 ° | 68.3 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 435 mm | 437 mm |
| Wheelbase | 1115 mm | 1147 mm | 1173 mm | 1206 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 736 mm | 740 mm | 739 mm | 745 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 196 cm |
