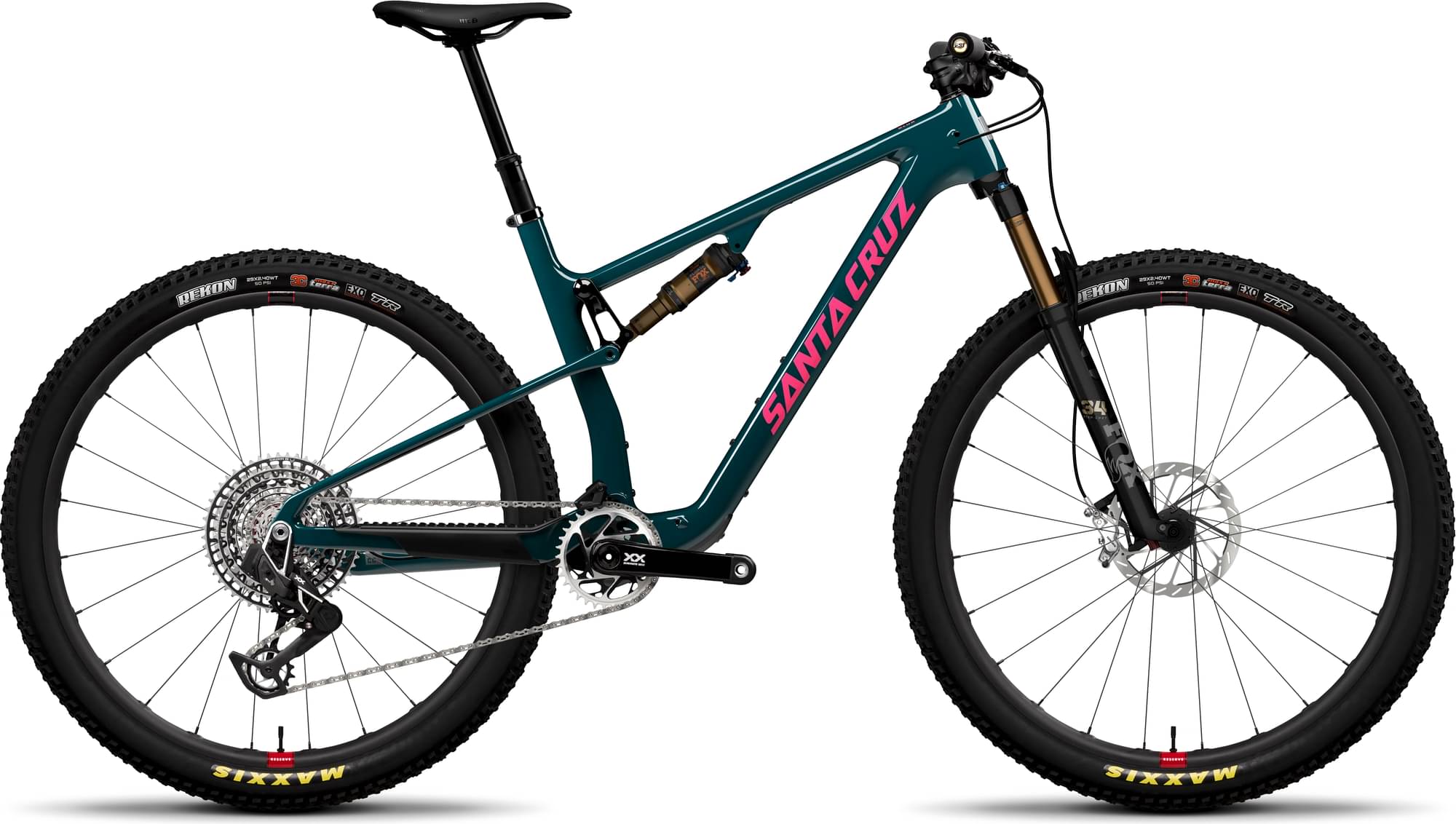

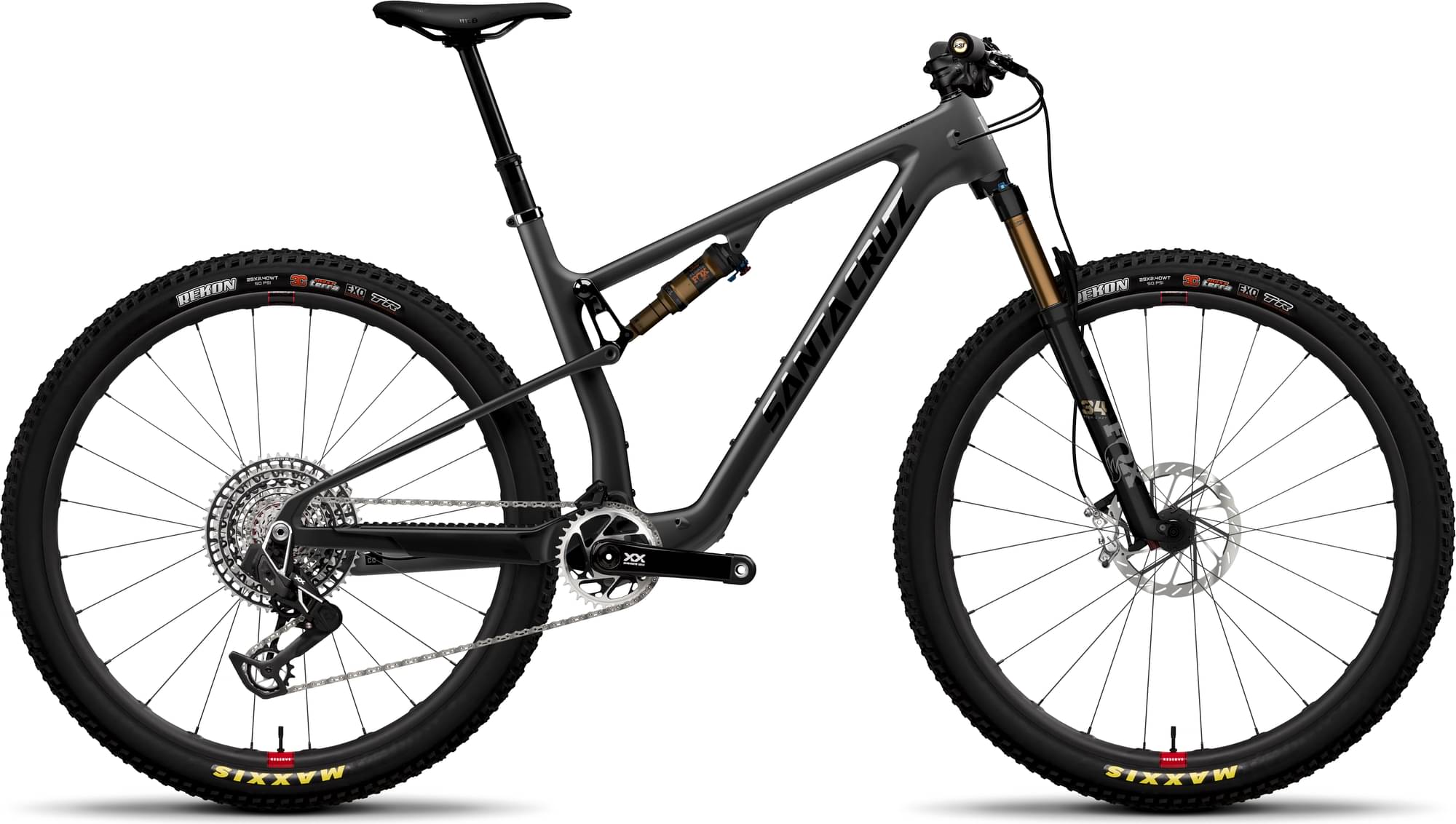

Santa Cruz Blur XX AXS Trail RSV / Carbon CC 2025
2025 Mountain
Estimate price |
13,959$
Weight | 11.27 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission, Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Ultimate Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 34SC Float Factory, Grip SL, 120mm
Rear Shock
FOX Float Factory, 190x45 -or- FOX Float SL Factory, 190x45
Drivetrain
Rear Derailleur
SRAM XX SL Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Controller Rocker Paddle
Cassette
SRAM XX SL Eagle T-Type, 10-52t
Crank
SRAM XX SL Eagle DUB T-Type Crankset, 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM XX SL Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Front: DT Swiss 180 EXP, 15x110, Centerlock, 24h, Rear: DT Swiss 180 EXP, 12x148, XD, Centerlock, 36t, 24h
Rear Hub
Front: DT Swiss 180 EXP, 15x110, Centerlock, 24h, Rear: DT Swiss 180 EXP, 12x148, XD, Centerlock, 36t, 24h
Rims
Front: Reserve 28|XC Carbon, Rear: Reserve 28|XC Carbon
Tires
Front: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO, Rear: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Brakes
Brakes
SRAM Level Ultimate Stealth 4-Piston
Cockpit
Stem
SRAM Atmos 7k, 60mm
Handlebar
Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
Headset
Cane Creek AER IS Tapered Headset
Seat
Saddle
WTB Silverado Medium Fusion, Stainless
Seatpost
OneUp Dropper Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.364 mm | 1.326 mm | 1.286 mm |
| Bottom Bracket Height | 339.9 mm | 339.7 mm | 339.6 mm | 339.4 mm |
| Front Center | 695 mm | 723.7 mm | 747.4 mm | 778 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 108 mm | 109 mm | 109 mm | 109 mm |
| Stack | 587.4 mm | 597 mm | 606.5 mm | 620.7 mm |
| Reach | 412.3 mm | 437.8 mm | 457.5 mm | 482.5 mm |
| Top Tube Length | 568.4 mm | 597.3 mm | 621.4 mm | 651.7 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° | 74.8 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 433 mm | 435 mm | 438 mm |
| Wheelbase | 1125 mm | 1157 mm | 1183 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 33 mm |
| Standover Height | 744 mm | 746 mm | 745 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
