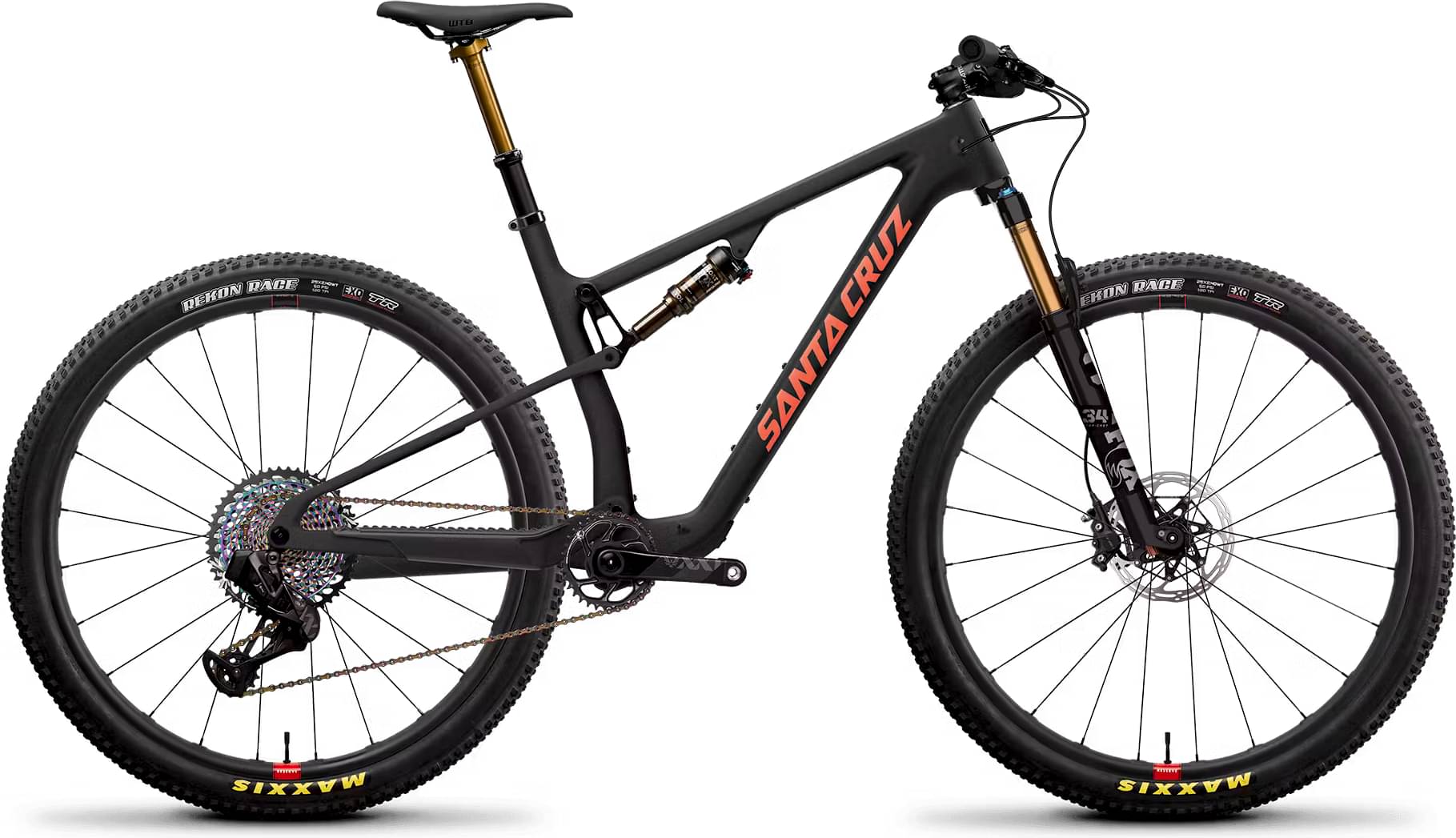

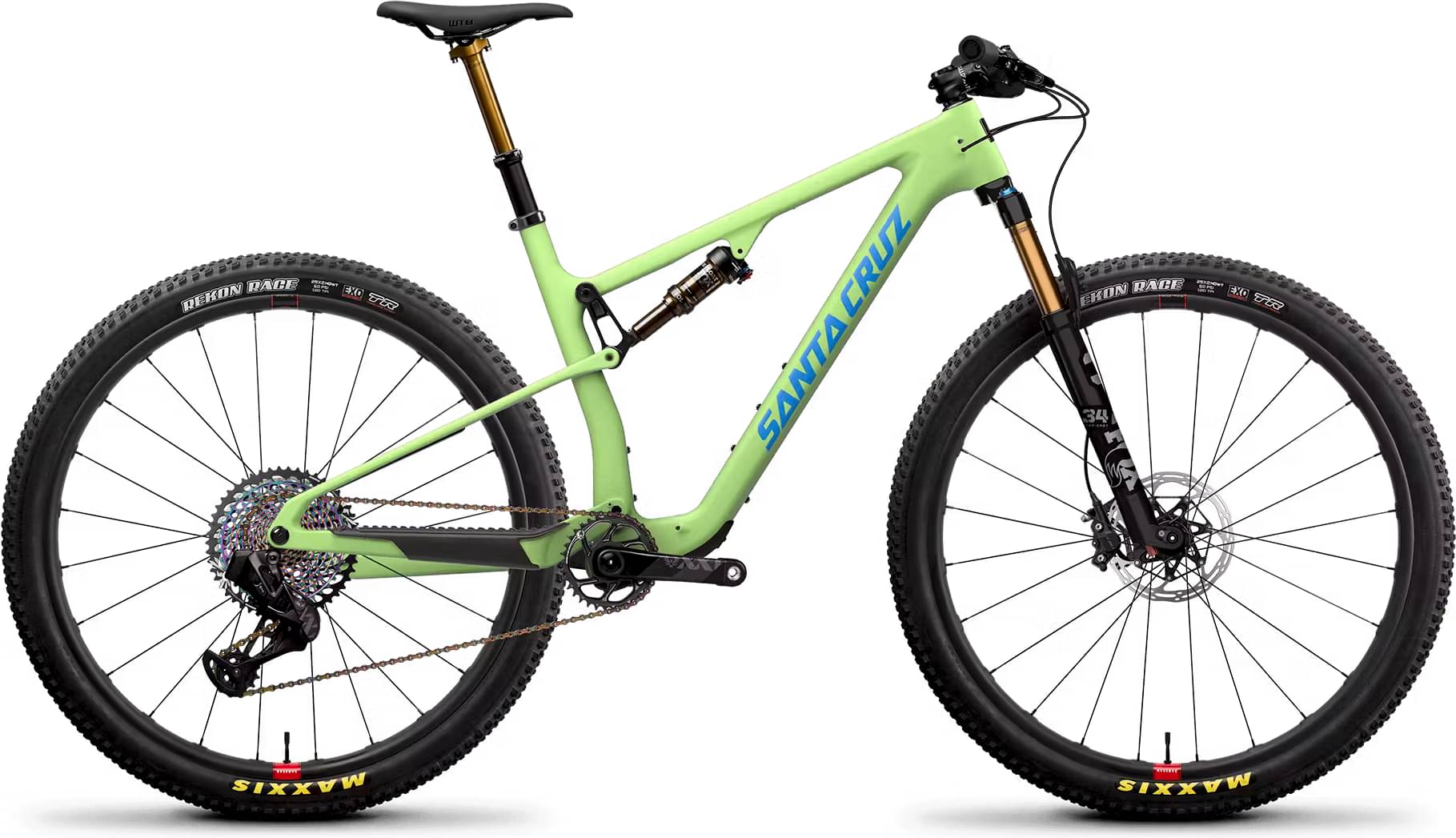

Santa Cruz BLUR XX1 AXS TR RSV / Carbon CC 2024
2024 Mountain
Estimate price |
14,450$
Weight | 10.23 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Performance Float 34
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BLUR XX1 AXS TR RSV / Carbon CC
Suspension Fork
FOX 34SC Performance Factory, 120mm
Rear Shock
FOX Float Factory DPS 190x45
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, 12spd
Shift Levers
SRAM AXS Controller w/ Rocker Paddle
Cassette
SRAM XG1295 Eagle Rainbow, 12spd, 10-50t
Crank
SRAM XX1 Eagle AXS 148 DUB, 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM XX1 Eagle, 12spd
Wheels
Front Hub
DT 180 EXP, 15x110, Centerlock, 24h
Rear Hub
DT 180 EXP, 12x148, XD, Centerlock, 36t, 24h
Rims
Front: Reserve 28|XC 29", 24h, Rear: Reserve 28|XC 29", 24h
Tires
Front: Maxxis Rekon Race 29"x2.4"WT, EXO, TR, Rear: Maxxis Rekon Race 29"x2.4"WT, EXO, TR
Brakes
Brakes
SRAM Level Ultimate
Cockpit
Stem
SRAM Atmos 7k Stem, 60mm
Handlebar
Santa Cruz Bicycles Carbon Flat Bar
Grips
ESI Chunky Grips
Headset
Cane Creek AER IS Tapered Headset
Seat
Saddle
WTB Silverado Medium Ti
Seatpost
FOX Transfer SL Factory, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.363 mm | 1.325 mm | 1.286 mm |
| Bottom Bracket Height | 339.9 mm | 339.7 mm | 339.6 mm | 339.4 mm |
| Front Center | 695 mm | 723.7 mm | 747.4 mm | 778 mm |
| Rake | 46 mm | 45 mm | 44 mm | 44 mm |
| Trail | 108 mm | 109 mm | 110 mm | 110 mm |
| Stack | 587 mm | 597 mm | 607 mm | 621 mm |
| Reach | 412 mm | 438 mm | 458 mm | 483 mm |
| Top Tube Length | 568.4 mm | 597.3 mm | 621.4 mm | 651.7 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° | 74.8 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 433 mm | 435 mm | 438 mm |
| Wheelbase | 1125 mm | 1157 mm | 1183 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 33 mm |
| Standover Height | 743 mm | 746 mm | 745 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 196 cm |
