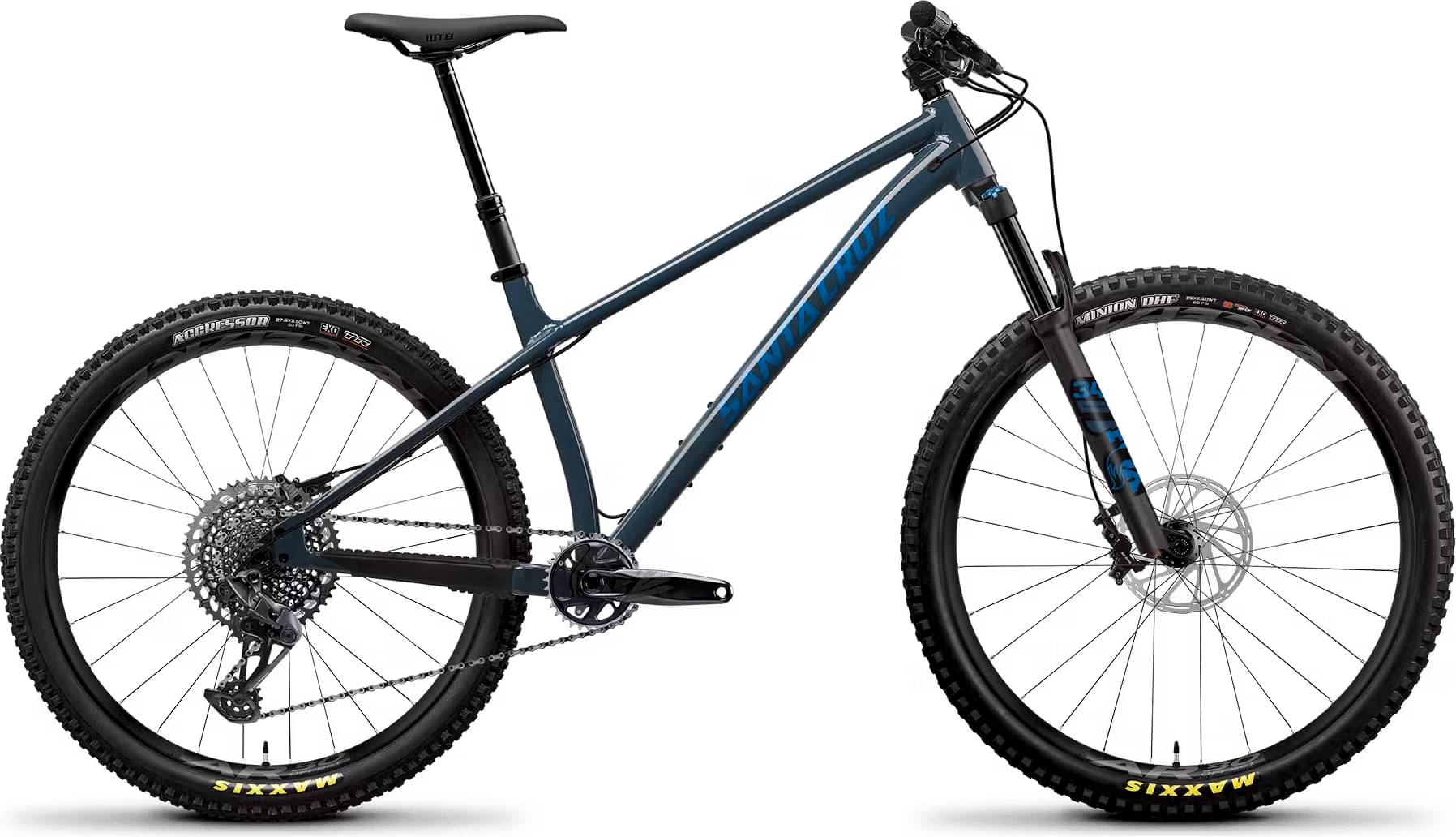

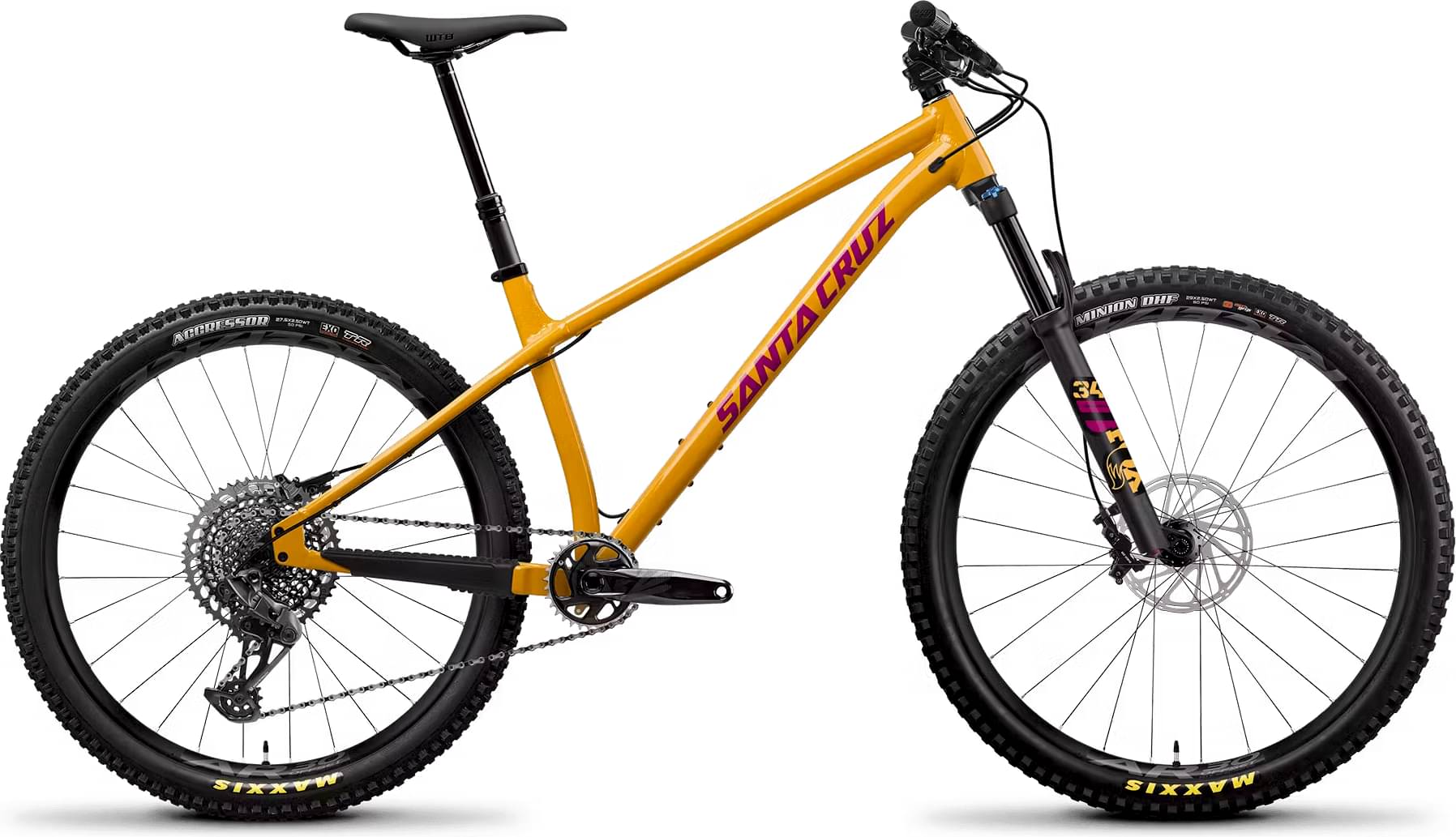

Santa Cruz CHAMELEON S MX / Aluminum 2024
2024 Mountain
Estimate price |
3,722$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 166cm
MD
164cm - 179cm
LG
177cm - 186cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CHAMELEON S MX / Aluminum
Suspension Fork
FOX 34 Float Performance, 130mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12spd
Shift Levers
SRAM GX Eagle, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
DT Swiss 370, 15x110, 28h
Rear Hub
DT Swiss 370, 12x148, XD, 36t, 28h
Rims
Front: RaceFace AR Offset 30 29", Rear: RaceFace AR Offset 30 27.5"
Tires
Front: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, TR, Rear: Maxxis Aggressor 27.5"x2.5", EXO, TR
Brakes
Brakes
SRAM G2 R
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Burgtec RideWide Alloy Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
SDG Tellis Dropper, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.414 mm | 1.372 mm | 1.321 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 729.4 mm | 758.6 mm | 782.8 mm | 812.1 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 620.1 mm | 629.2 mm | 638.2 mm | 647.3 mm |
| Reach | 420 mm | 445 mm | 465 mm | 490 mm |
| Top Tube Length | 596.1 mm | 621.3 mm | 643.4 mm | 668.8 mm |
| Seat Tube Angle | 74.1 ° | 74.3 ° | 74.4 ° | 74.6 ° |
| Seat Tube Length | 380 mm | 405 mm | 430 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1154 mm | 1183 mm | 1207 mm | 1237 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 682 mm | 682 mm | 686 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 179 cm | 186 cm | 198 cm |
