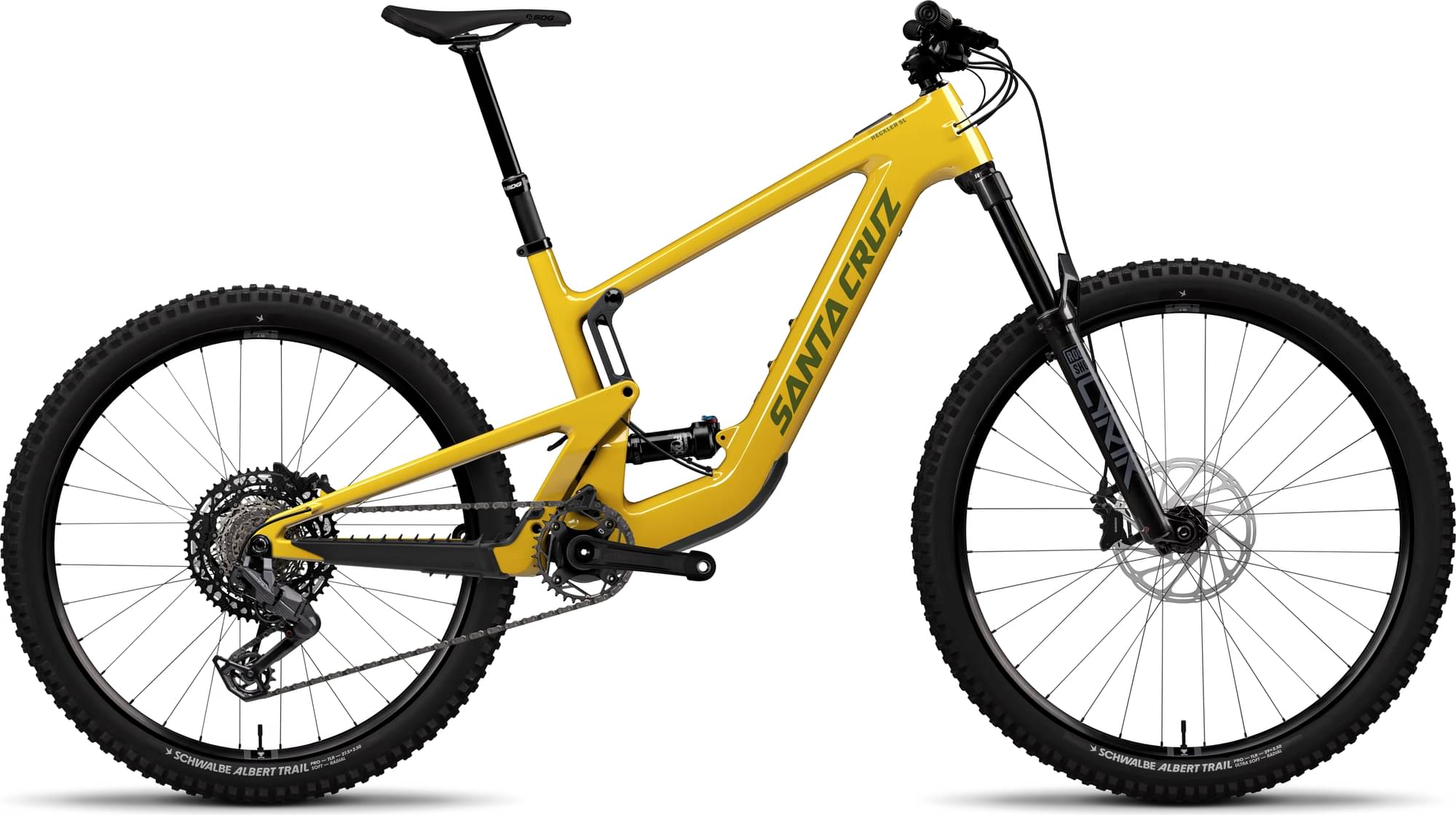

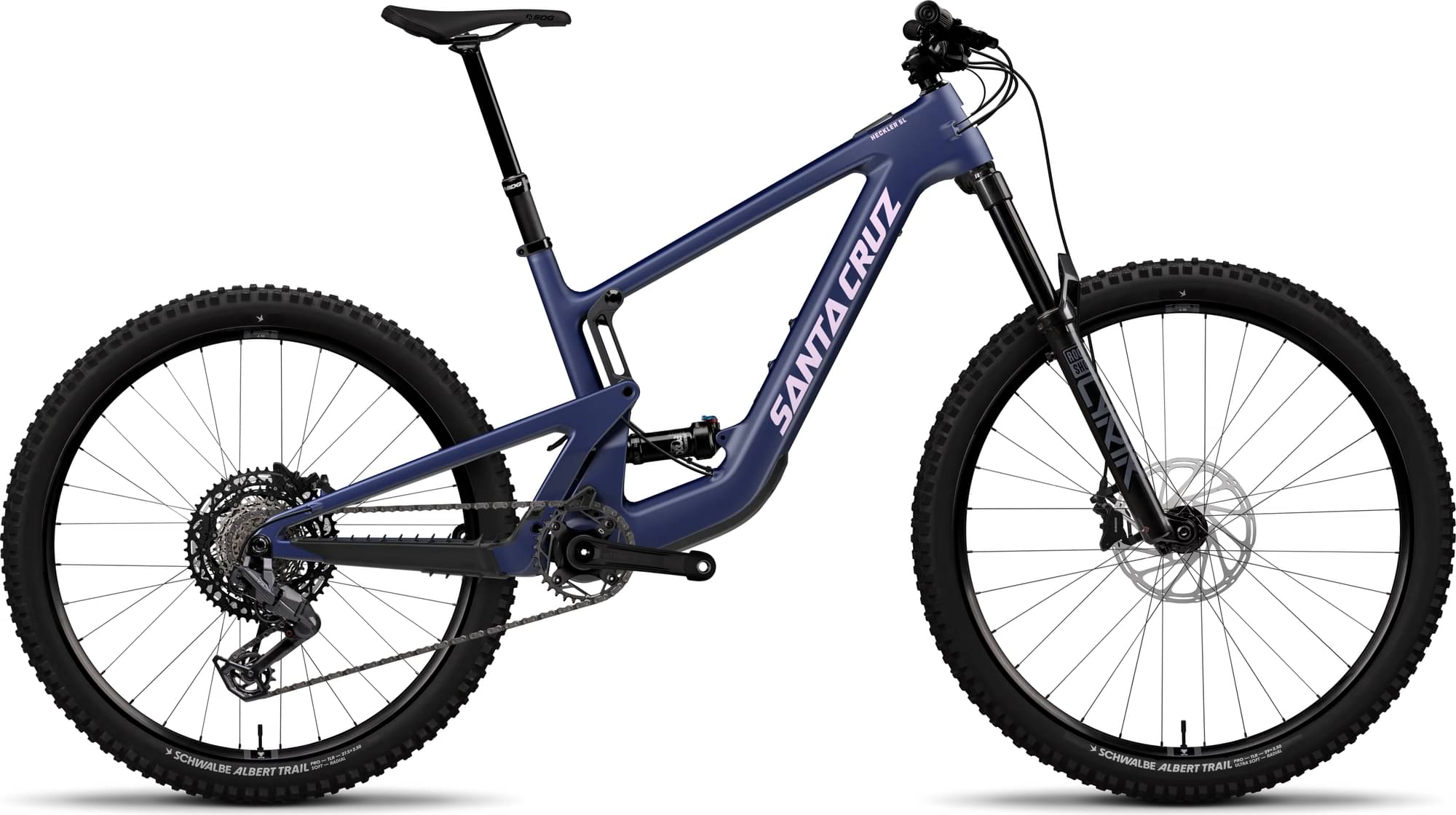

Santa Cruz Heckler SL 70 2026
2026 E-bike
Estimate price |
8,724$
Weight | 19.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik
-
Groupset SRAM, e*thirteen -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Energy 430Wh Integrated Battery -
Drivetrain 1 × 12 -
Brakes SRAM DB8 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon C MX 150mm Travel VPP™
Suspension Fork
RockShox Lyrik Base, 160mm
Rear Shock
FOX Float Performance, 210x55
Drivetrain
Rear Derailleur
SRAM 70 Eagle T-Type, 12spd
Shift Levers
SRAM 90 Eagle T-Type, Single Click, 12spd
Cassette
SRAM XS 1270 Eagle T-Type, 10-52t
Crank
E13 Helix eSpec, 165mm
Bottom Bracket
N/A
Chain
SRAM 70 Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Front: SRAM MTH 716, 15x110, 6-Bolt, 32h, Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Hub
Front: SRAM MTH 716, 15x110, 6-Bolt, 32h, Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rims
Front: WTB ST Tough 30, Rear: WTB ST Tough 30
Tires
Front: Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft, Rear: Schwalbe Albert, 27.5x2.5, Trail Radial Soft
Brakes
Brakes
Front: SRAM DB8
Cockpit
Stem
OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm
Handlebar
Burgtec Alloy Bar -or- e13 TRS Base Bar
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
SDG Bel-Air V3 Max
Seatpost
SDG Tellis Dropper, 31.6
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 430Wh Integrated Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.414 mm | 1.357 mm | 1.357 mm | 1.319 mm | 1.319 mm | 1.302 mm | 1.302 mm | 1.266 mm | 1.266 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 766.1 mm | 766.1 mm | 795.4 mm | 795.4 mm | 819.7 mm | 819.7 mm | 848.4 mm | 848.4 mm | 879.9 mm | 879.9 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 614.9 mm | 614.9 mm | 624 mm | 624 mm | 633 mm | 633 mm | 651 mm | 651 mm | 664.5 mm | 664.5 mm |
| Reach | 435 mm | 435 mm | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 525 mm | 525 mm |
| Top Tube Length | 569.2 mm | 569.2 mm | 602.7 mm | 602.7 mm | 620.6 mm | 620.6 mm | 641.8 mm | 641.8 mm | 669.1 mm | 669.1 mm |
| Seat Tube Angle | 76.8 ° | 76.8 ° | 77.1 ° | 77.1 ° | 77.5 ° | 77.5 ° | 77.7 ° | 77.7 ° | 77.8 ° | 77.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 140 mm | 140 mm | 155 mm | 155 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 446 mm | 446 mm | 450 mm | 450 mm |
| Wheelbase | 1209 mm | 1209 mm | 1238 mm | 1238 mm | 1262 mm | 1262 mm | 1294 mm | 1294 mm | 1329 mm | 1329 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 720 mm | 720 mm | 733 mm | 733 mm | 733 mm | 733 mm | 731 mm | 731 mm | 741 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
