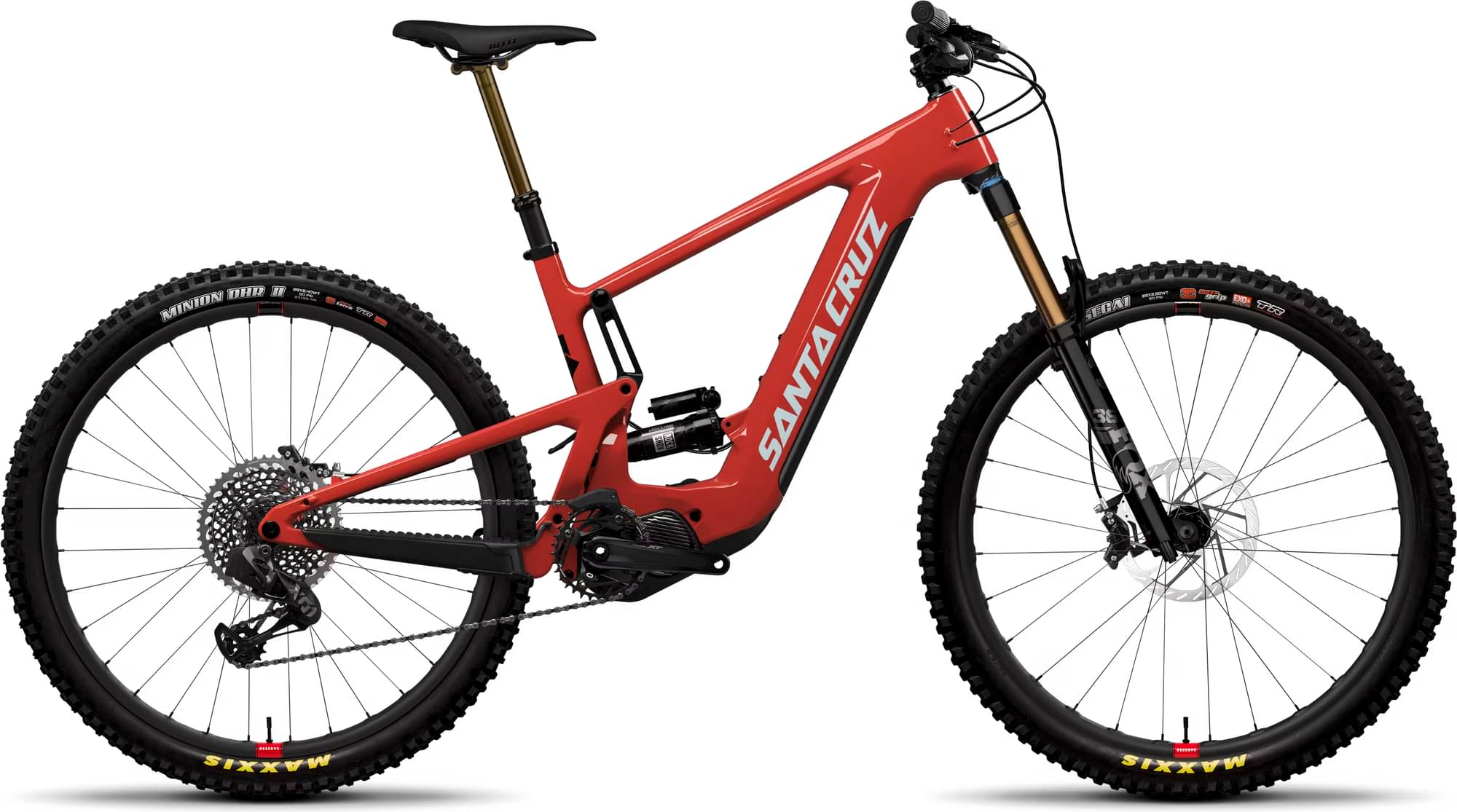

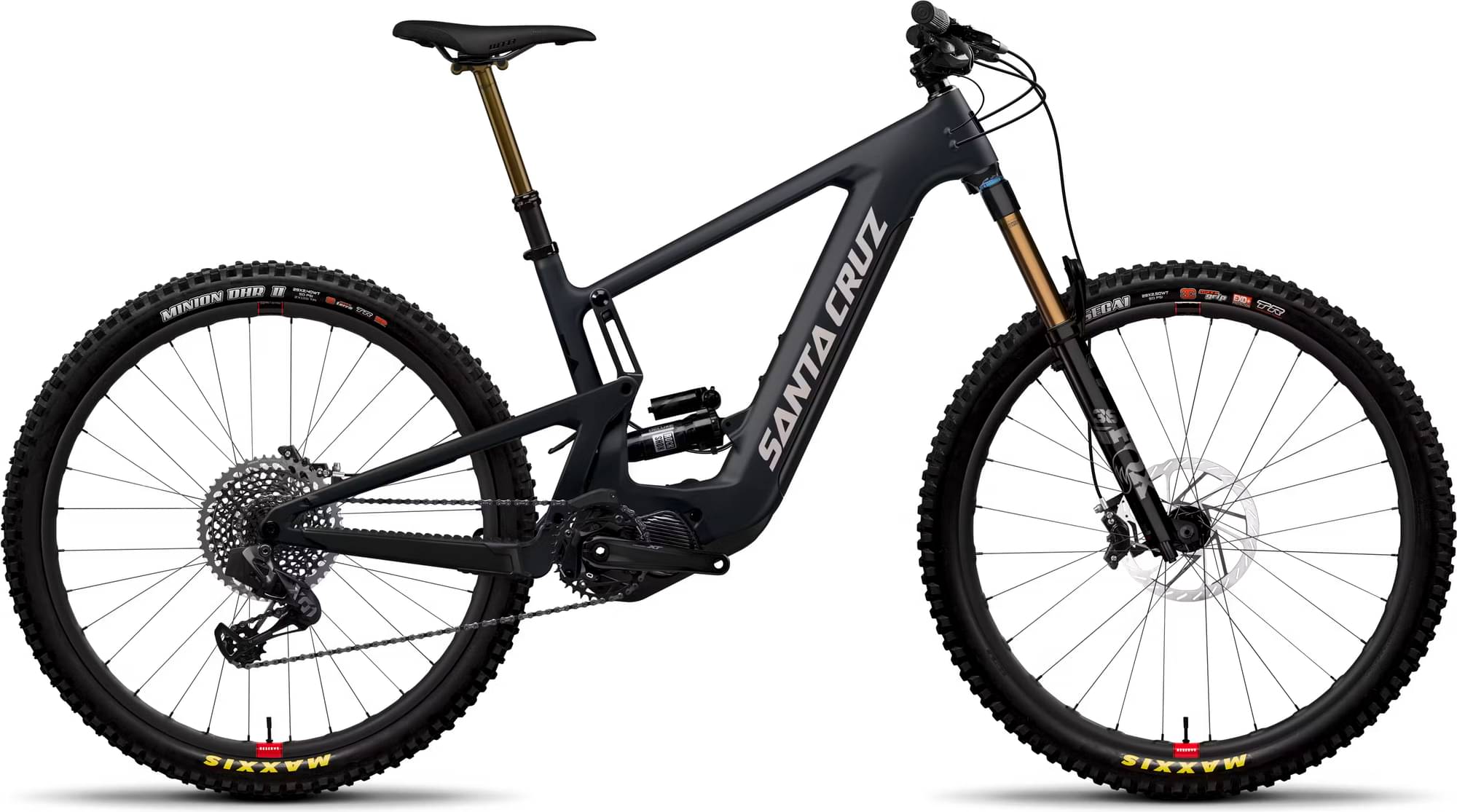

Santa Cruz HECKLER X01 AXS RSV 29 / Carbon CC 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- E-bike
- |
- Mountain
- |
- Enduro
Frame Carbon
Wheels 29"
Travel Front 160mm
Travel Rear 150mm
Fork Fox Factory Float 36
Groupset X01 Eagle AXS, GX Eagle AXS
Suspension Full
Motor Shimano 250W 85Nm mid-drive
Battery Darfon 720 Wh Integrated Battery
Drivetrain 1 × 12 Electronic
Brakes Hydraulic Disc

Sizing

Recommended size guide.

SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
XXL Low
192cm - 201cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

HECKLER X01 AXS RSV 29 / Carbon CC

Suspension Fork

RockShox Zeb Ultimate, 160mm -or- FOX 36 Float Factory

Rear Shock

RockShox Super Deluxe Ultimate, 210x55

Drivetrain

Rear Derailleur

SRAM X01 Eagle AXS, 12spd

Shift Levers

SRAM GX Eagle AXS Controller 2 Button

Cassette

SRAM XG1275 Eagle, 12spd, 10-50t

Crank

Shimano EM900 HollowTech Crank Arms 165mm

Chain

SRAM GX Eagle, 12spd

Chain Guide

E13 E-Spec+ AL

Wheels

Front Hub

DT Swiss 350, 15x110, Torque Cap, 6-Bolt, 28h

Rear Hub

DT Swiss 350, 12x148, XD, 6-Bolt, 24t, 32h

Rims

Front: Reserve 30|HD 29", Rear: Reserve 31|DH 29"

Tires

Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, Rear: Maxxis Minion 29x2.4" 3C MaxxTerra, Double Down

Brakes

SRAM Code Silver Stealth

Cockpit

Stem

Burgtec Enduro MK3, 42mm

Handlebar

Santa Cruz e35 Carbon Bar, 800mm

Grips

Santa Cruz Bicycles House Grips

Headset

Cane Creek 40 IS Integrated Headset

Seat

Saddle

WTB Silverado Medium, Ti

Seatpost

OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer

Motor & Battery

Motor

Shimano Drive Unit DU-EP800

Battery

Darfon 720 Wh Integrated Battery

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM High	SM Low	MD High	MD High	MD Low	MD Low	LG High	LG High	LG Low	LG Low	XL High	XL High	XL Low	XL Low	XXL High	XXL High	XXL Low	XXL Low
Stack Reach Ratio	1.412 mm	1.426 mm	1.353 mm	1.354 mm	1.367 mm	1.367 mm	1.325 mm	1.324 mm	1.339 mm	1.339 mm	1.308 mm	1.309 mm	1.321 mm	1.321 mm	1.28 mm	1.281 mm	1.292 mm	1.292 mm
Bottom Bracket Height	346 mm	342 mm	346 mm	346 mm	342 mm	342 mm	346 mm	346 mm	342 mm	342 mm	346 mm	346 mm	342 mm	342 mm	346 mm	346 mm	342 mm	342 mm
Front Center	760.6 mm	761 mm	780.9 mm	781 mm	781 mm	781 mm	807.3 mm	807 mm	807 mm	807 mm	835.8 mm	836 mm	736 mm	836 mm	869.4 mm	869 mm	869 mm	869 mm
Rake	46 mm	45 mm	46 mm	44 mm	43 mm	45 mm	46 mm	44 mm	42 mm	44 mm	46 mm	44 mm	43 mm	44 mm	46 mm	44 mm	42 mm	44 mm
Trail	125 mm	129 mm	125 mm	128 mm	131 mm	129 mm	125 mm	128 mm	132 mm	130 mm	125 mm	128 mm	131 mm	130 mm	125 mm	128 mm	132 mm	130 mm
Stack	607.3 mm	609 mm	615.8 mm	616 mm	618 mm	618 mm	629.4 mm	629 mm	632 mm	632 mm	647.5 mm	648 mm	650	650	665.6 mm	666 mm	668 mm	668 mm
Reach	430 mm	427 mm	455 mm	455 mm	452 mm	452 mm	475 mm	475 mm	472 mm	472 mm	495 mm	495 mm	492 mm	492 mm	520 mm	520 mm	517 mm	517 mm
Top Tube Length	571.4 mm	572 mm	599 mm	599 mm	600 mm	600 mm	623.6 mm	624 mm	625 mm	625 mm	644.6 mm	645 mm	646 mm	646 mm	673.5 mm	674 mm	675 mm	675 mm
Seat Tube Angle	76.9 °	76.7 °	76.8 °	76.8 °	76.6 °	76.6 °	76.7 °	76.7 °	76.4 °	76.4 °	77 °	77 °	76.7 °	76.7 °	77 °	77 °	76.8 °	76.8 °
Seat Tube Length	390 mm	390 mm	405 mm	405 mm	405 mm	405 mm	430 mm	430 mm	430 mm	430 mm	460 mm	460 mm	460 mm	460 mm	500 mm	500 mm	500 mm	500 mm
Head Tube Angle	64.8 °	64.5 °	64.8 °	64.8 °	64.5 °	64.5 °	64.8 °	64.8 °	64.5 °	64.5 °	64.8 °	64.8 °	64.5 °	64.5 °	64.8 °	64.8 °	64.5 °	64.5 °
Head Tube Length	130 mm	130 mm	100 mm	100 mm	100 mm	100 mm	115 mm	115 mm	115 mm	115 mm	135 mm	135 mm	135 mm	135 mm	155 mm	155 mm	155 mm	155 mm
Chainstay Length	445 mm	446 mm	445 mm	460 mm	446 mm	461 mm	445 mm	460 mm	446 mm	461 mm	445 mm	460 mm	446 mm	461 mm	445 mm	460 mm	446 mm	461 mm
Wheelbase	1205 mm	1207 mm	1225 mm	1241 mm	1227 mm	1242 mm	1252 mm	1267 mm	1253 mm	1268 mm	1280 mm	1296 mm	1282 mm	1297 mm	1314 mm	1329 mm	1315 mm	1330 mm
Bottom Bracket Drop	12 mm	12 mm	30 mm	26 mm	26 mm	30 mm	30 mm	26 mm	26 mm	30 mm	30 mm	26 mm	26 mm	30 mm	30 mm	26 mm	26 mm	30 mm
Standover Height	720 mm	716 mm	745 mm	745 mm	741 mm	741 mm	743 mm	743 mm	740 mm	740 mm	741 mm	741 mm	737 mm	737 mm	741 mm	741 mm	738 mm	738 mm
Wheels	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
Rider Min Height	155 cm	155 cm	164 cm	164 cm	164 cm	164 cm	174 cm	174 cm	174 cm	174 cm	184 cm	184 cm	184 cm	184 cm	192 cm	192 cm	192 cm	192 cm
Rider Max Height	166 cm	166 cm	176 cm	176 cm	176 cm	176 cm	186 cm	186 cm	186 cm	186 cm	194 cm	194 cm	194 cm	194 cm	201 cm	201 cm	201 cm	201 cm
