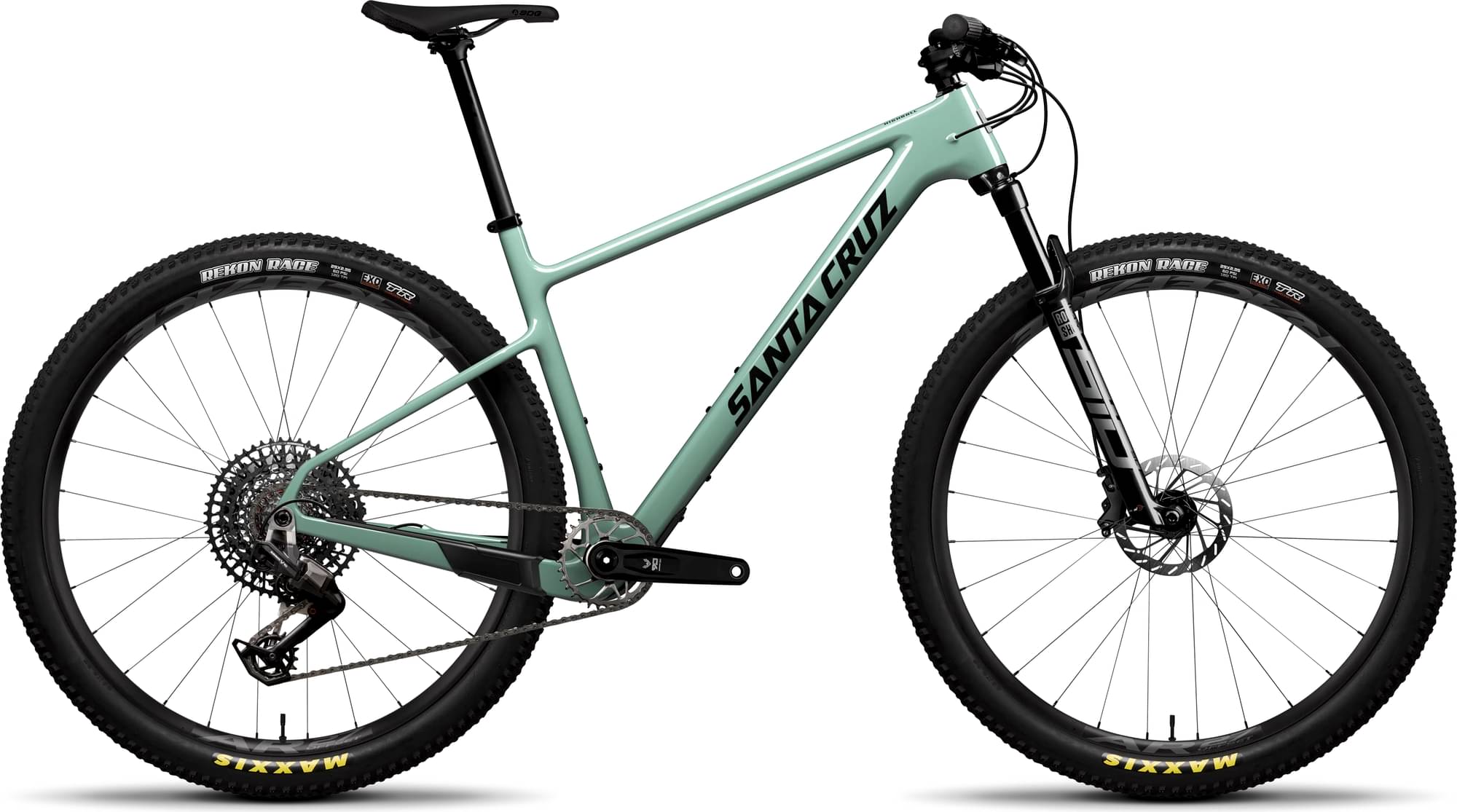

Santa Cruz Highball 90 2026
2026 Mountain
Estimate price |
4,149$
Weight | 10.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset SRAM -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM DB8 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon C 29" Hardtail
Suspension Fork
RockShox Sid SL Select+, 100mm, w/ Remote
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM 90 Eagle T-Type, 12spd
Shift Levers
SRAM 90 Eagle T-Type, 12spd
Cassette
SRAM XS 1275 Eagle T-Type, 10-52t
Crank
SRAM 90 Eagle DUB T-Type Crankset, 34t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Chain Guide
N/A
Wheels
Front Hub
Front: DT Swiss 370, 15x110, 6-Bolt, 28h, Rear: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Hub
Front: DT Swiss 370, 15x110, 6-Bolt, 28h, Rear: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: RaceFace AR Offset 27 29", Rear: RaceFace AR Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, Rear: Maxxis Rekon Race 29"x2.35", EXO
Brakes
Brakes
Front: SRAM DB8
Cockpit
Stem
SRAM Atmos Stem, 60mm
Handlebar
SRAM Atmos Flat Bar, 31.8x760
Headset
Cane Creek 50 IS Integrated Headset
Seat
Saddle
SDG Bel-Air V3 Lux-Alloy
Seatpost
RaceFace Next, 27.2, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.375 mm | 1.335 mm | 1.292 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 596 mm | 605 mm | 614 mm | 633 mm |
| Reach | 415 mm | 440 mm | 460 mm | 490 mm |
| Top Tube Length | 595 mm | 619 mm | 642 mm | 677 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1119 mm | 1145 mm | 1169 mm | 1207 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 707 mm | 704 mm | 739 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
