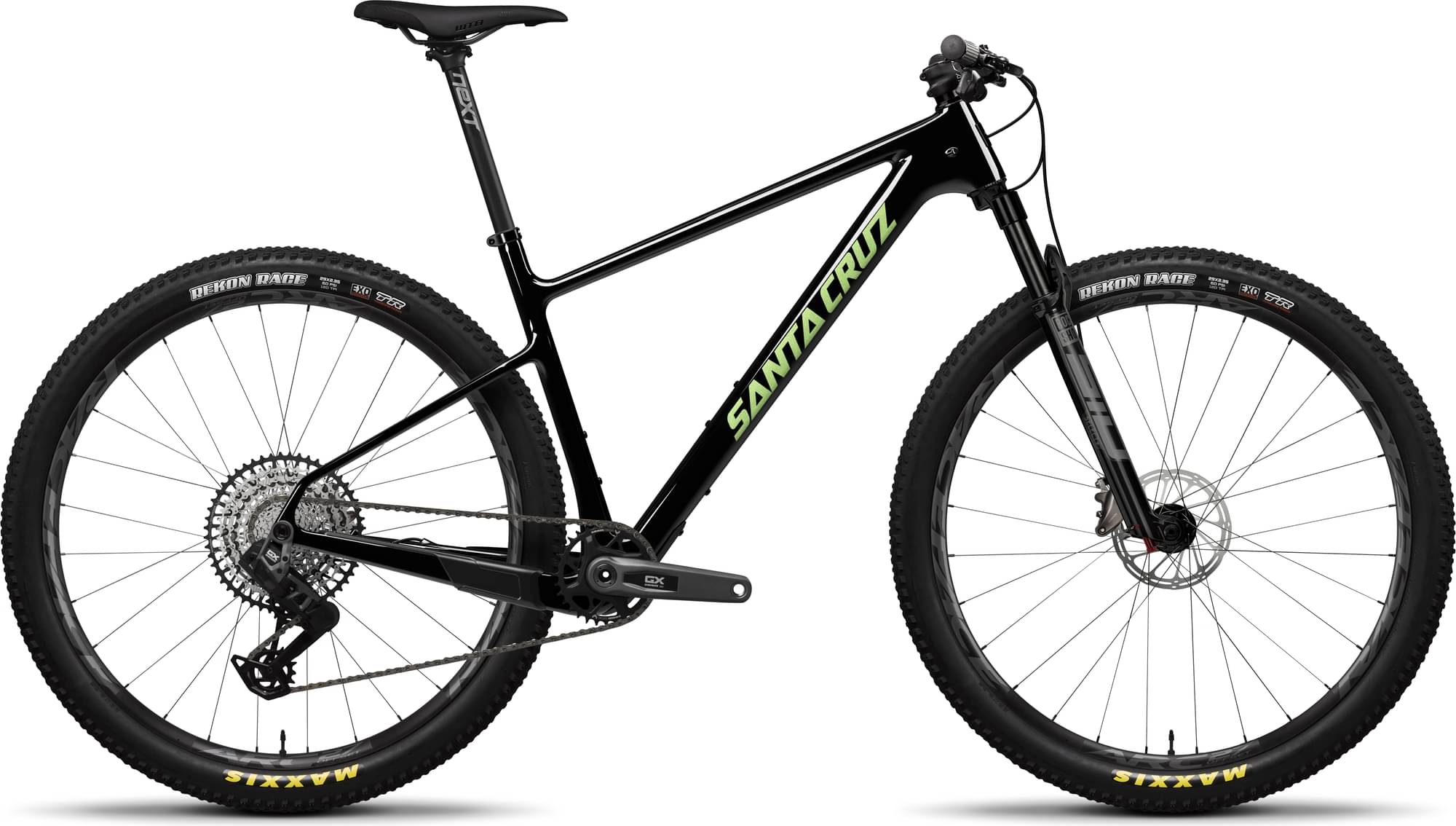

Santa Cruz Highball GX AXS 2024
2024 Mountain
Estimate price |
6,773$
Weight | 10.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Bronze Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Sid SL Select+, 100mm, w/Remote
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Front Derailleur
No compatibility
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
SRAM GX Eagle DUB T-Type Crankset. 34t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
Front: DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h, Rear: DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Hub
Front: DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h, Rear: DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: RaceFace ARC Offset 27 29", Rear: RaceFace ARC Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, Rear: Maxxis Rekon Race 29"x2.35", EXO
Brakes
Brakes
SRAM Level Bronze Stealth 2-Piston
Cockpit
Stem
SRAM Atmos Stem, 60mm
Handlebar
Santa Cruz Carbon
Grips
SRAM Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
RaceFace Next, 27.2, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.375 mm | 1.335 mm | 1.292 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 596 mm | 605 mm | 614 mm | 633 mm |
| Reach | 415 mm | 440 mm | 460 mm | 490 mm |
| Top Tube Length | 595 mm | 619 mm | 642 mm | 677 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1119 mm | 1145 mm | 1169 mm | 1207 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 707 mm | 704 mm | 739 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
