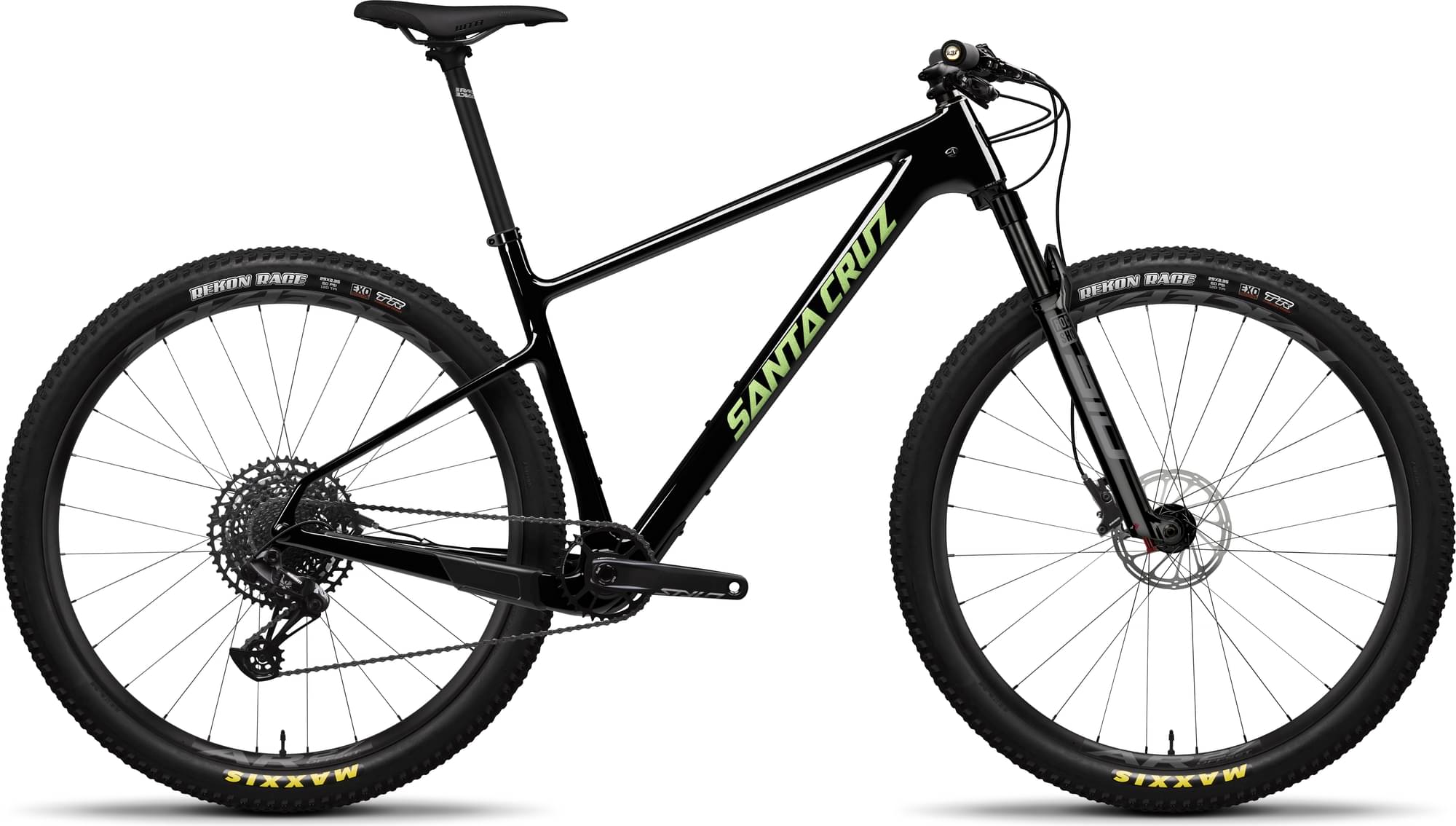

Santa Cruz Highball R 2024
2024 Mountain
Estimate price |
6,773$
Weight | 11.27 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 100mm -
Fork RockShox SID
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM Level T Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Sid SL Base, 100mm, w/Remote
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Front Derailleur
No compatibility
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM Stylo 148 DUB 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle, 12spd
Wheels
Front Hub
Front: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h, Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Hub
Front: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h, Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rims
Front: RaceFace AR Offset 27, 29", Rear: RaceFace AR Offset 27, 29"
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, Rear: Maxxis Rekon Race 29"x2.35", EXO
Brakes
Brakes
SRAM Level T
Cockpit
Stem
RaceFace Ride, 60mm
Handlebar
RaceFace Ride
Grips
ESI Chunky Grips
Headset
FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
Seat
Saddle
WTB Silverado, CroMo
Seatpost
RaceFace Ride, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.375 mm | 1.335 mm | 1.292 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 596 mm | 605 mm | 614 mm | 633 mm |
| Reach | 415 mm | 440 mm | 460 mm | 490 mm |
| Top Tube Length | 595 mm | 619 mm | 642 mm | 677 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1119 mm | 1145 mm | 1169 mm | 1207 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 707 mm | 704 mm | 739 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
