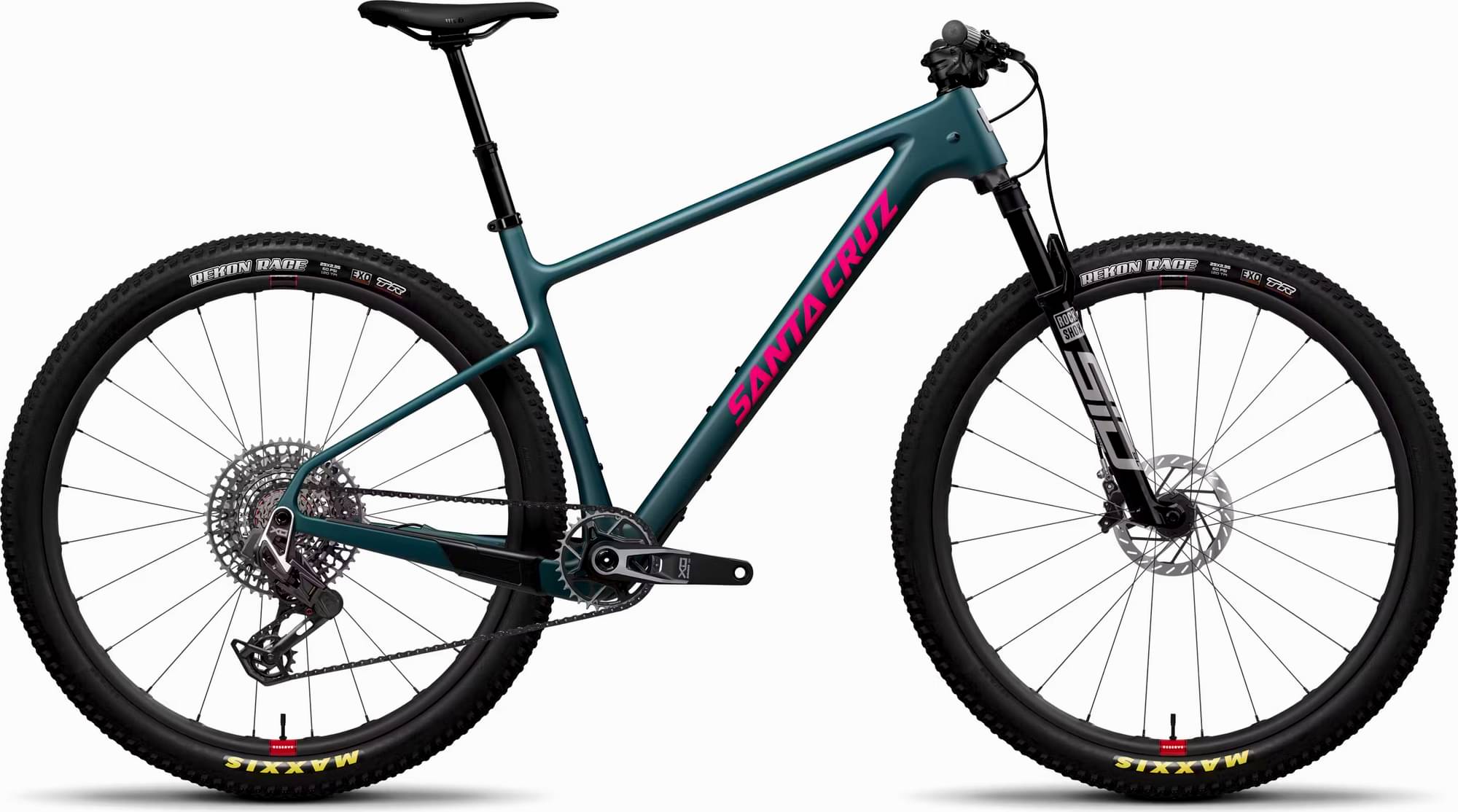

Santa Cruz HIGHBALL X0 AXS RSV / Carbon CC 2025
2025 Mountain
Estimate price |
7,599$
Weight | 10.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 166cm
MD
164cm - 179cm
LG
177cm - 186cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHBALL X0 AXS RSV / Carbon CC
Suspension Fork
RockShox SID SL Ultimate, 3-Position, 100mm, w/ Remote
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Controller Rocker Paddle
Cassette
SRAM X0 Eagle T-Type, 10-52t
Crank
SRAM X0 Eagle DUB T-Type Crankset, 34t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM X0 Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
DT Swiss 350, 15x110, Centerlock, 24h
Rear Hub
DT Swiss 350, 12x148, XD, Centerlock, 24h, 36t
Rims
Front: Reserve 28|XC Carbon, Rear: Reserve 28|XC Carbon
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, Rear: Maxxis Rekon Race 29"x2.35", EXO
Brakes
Brakes
SRAM Level Silver Stealth 4-Piston
Cockpit
Stem
SRAM Atmos 7k, 60mm
Handlebar
Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Fusion, CroMo SL
Seatpost
OneUp Dropper Post, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.375 mm | 1.335 mm | 1.292 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 596 mm | 605 mm | 614 mm | 633 mm |
| Reach | 415 mm | 440 mm | 460 mm | 490 mm |
| Top Tube Length | 595 mm | 619 mm | 642 mm | 677 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1119 mm | 1145 mm | 1169 mm | 1207 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 707 mm | 704 mm | 739 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 179 cm | 186 cm | 198 cm |
