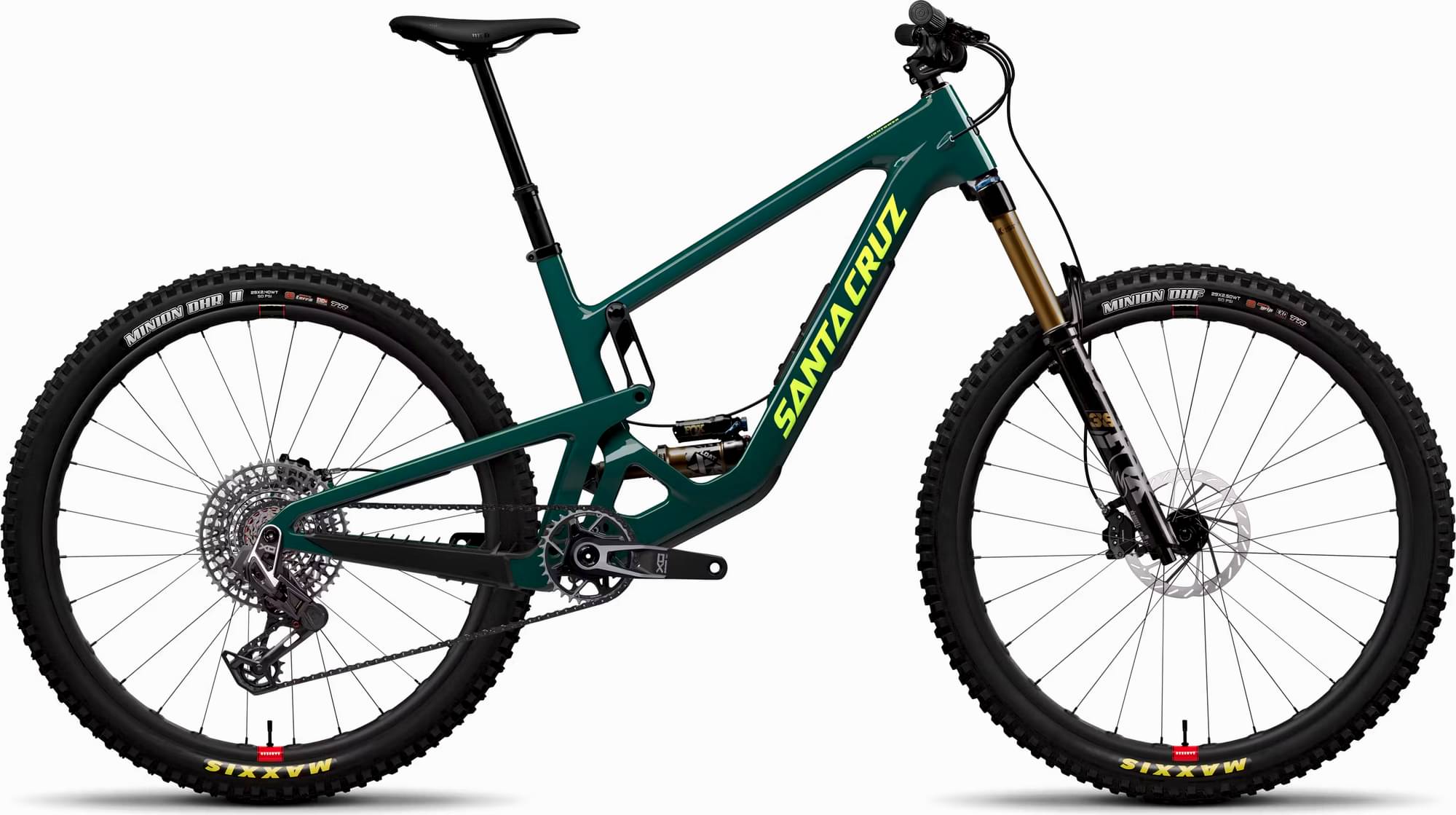

Santa Cruz HIGHTOWER X0 AXS RSV / Carbon CC 2025
2025 Mountain
Estimate price |
11,632$
Weight | 14.59 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHTOWER X0 AXS RSV / Carbon CC
Suspension Fork
Fox 36 Float Factory, Grip X2, 160mm
Rear Shock
FOX Float X Factory, 230x57.5
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Controller Rocker Paddle
Cassette
SRAM X0 Eagle T-Type, 10-52t
Crank
SRAM X0 Eagle DUB T-Type Crankset, 32t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM X0 Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
Industry Nine 1/1, 15x110, 6-Bolt, 28h
Rear Hub
Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h
Rims
Front: Reserve 30|HD Carbon, Rear: Reserve 30|HD Carbon
Tires
Front: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+
Brakes
Brakes
SRAM Maven Silver Stealth
Cockpit
Stem
OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Fusion, CroMo SL
Seatpost
OneUp Dropper Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.447 mm | 1.374 mm | 1.387 mm | 1.335 mm | 1.348 mm | 1.318 mm | 1.33 mm | 1.272 mm | 1.284 mm |
| Bottom Bracket Height | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm |
| Front Center | 771 mm | 771 mm | 800 mm | 800 mm | 825 mm | 825 mm | 853 mm | 853 mm | 883 mm | 883 mm |
| Rake | 19 mm | 19 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 160 mm | 162 mm | 131 mm | 133 mm | 131 mm | 133 mm | 131 mm | 133 mm | 131 mm | 133 mm |
| Stack | 623 mm | 625 mm | 632 mm | 634 mm | 641 mm | 643 mm | 659 mm | 661 mm | 668 mm | 670 mm |
| Reach | 435 mm | 432 mm | 460 mm | 457 mm | 480 mm | 477 mm | 500 mm | 497 mm | 525 mm | 522 mm |
| Top Tube Length | 572 mm | 572 mm | 595 mm | 595 mm | 614 mm | 614 mm | 636 mm | 636 mm | 662 mm | 662 mm |
| Seat Tube Angle | 77.6 ° | 77.3 ° | 77.9 ° | 77.6 ° | 78.2 ° | 77.9 ° | 78.3 ° | 78 ° | 78.4 ° | 78.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm | 150 mm | 150 mm | 160 mm | 160 mm |
| Chainstay Length | 434 mm | 434 mm | 436 mm | 436 mm | 439 mm | 439 mm | 442 mm | 442 mm | 445 mm | 445 mm |
| Wheelbase | 1176 mm | 1176 mm | 1237 mm | 1237 mm | 1264 mm | 1264 mm | 1296 mm | 1296 mm | 1328 mm | 1328 mm |
| Bottom Bracket Drop | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm |
| Standover Height | 721 mm | 721 mm | 723 mm | 723 mm | 725 mm | 725 mm | 727 mm | 727 mm | 731 mm | 731 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
