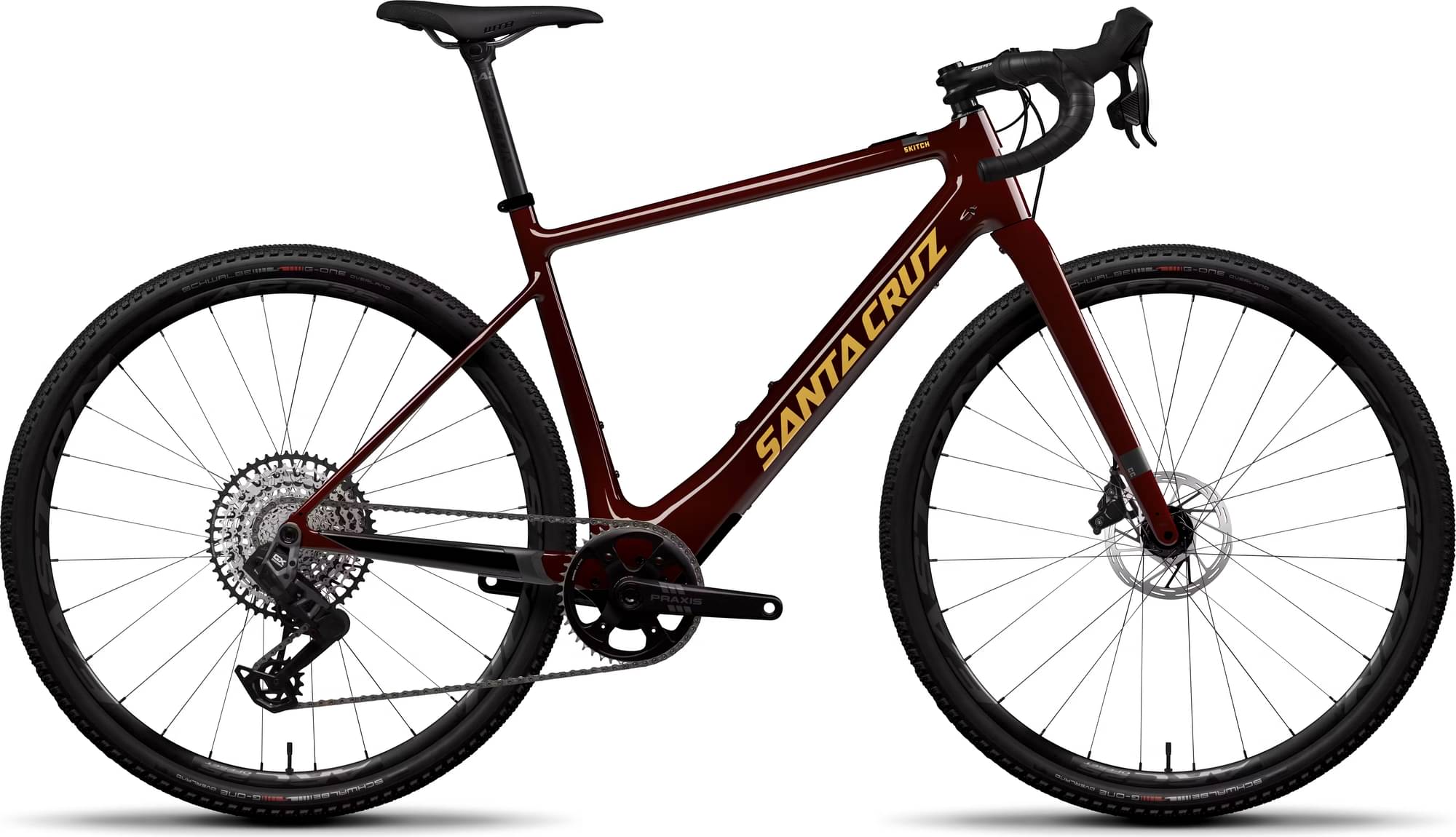

Santa Cruz SKITCH GX AXS / Carbon CC 2025
2025 E-bike
Estimate price |
7,299$
Weight | 13.57 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GX Eagle Transmission, Rival AXS -
Suspension Rigid -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua 430 Wh Integrated Battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SKITCH GX AXS / Carbon CC
Suspension Fork
Carbon
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shift Levers
SRAM Rival eTap AXS
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
Praxis eTor AL, 107BCD
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
DT Swiss 370, 12x100, Centerlock, 28h
Rear Hub
DT Swiss 370, 12x148, XD, Centerlock, 28h
Rims
Front: Easton ARC Offset 25 700c, Rear: Easton ARC Offset 25 700c
Tires
Front: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip, Rear: Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Brakes
Brakes
SRAM Rival eTap AXS
Cockpit
Stem
Zipp Service Course Stem, 70mm
Handlebar
Zipp Service Course 70 XPLR AL Bar
Grips
Velo Bar Tape
Headset
FSA IS-2/47/42 ACB -or- Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
Easton EC70, 27.2, Zero Offset, 350mm
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua 430 Wh Integrated Battery
Charger
Fazua Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.43 mm | 1.419 mm | 1.402 mm | 1.4 mm |
| Bottom Bracket Height | 279 mm | 281 mm | 281 mm | 283 mm | 283 mm |
| Front Center | 624 mm | 646 mm | 668 mm | 689 mm | 711 mm |
| Rake | 45 mm | 45 mm | 46 mm | 44 mm | 45 mm |
| Trail | 86 mm | 86 mm | 85 mm | 87 mm | 86 mm |
| Stack | 563 mm | 579 mm | 596 mm | 610 mm | 630 mm |
| Reach | 390 mm | 405 mm | 420 mm | 435 mm | 450 mm |
| Top Tube Length | 551 mm | 571 mm | 591 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1047 mm | 1070 mm | 1092 mm | 1112 mm | 1135 mm |
| Bottom Bracket Drop | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 728 mm | 753 mm | 778 mm | 804 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
