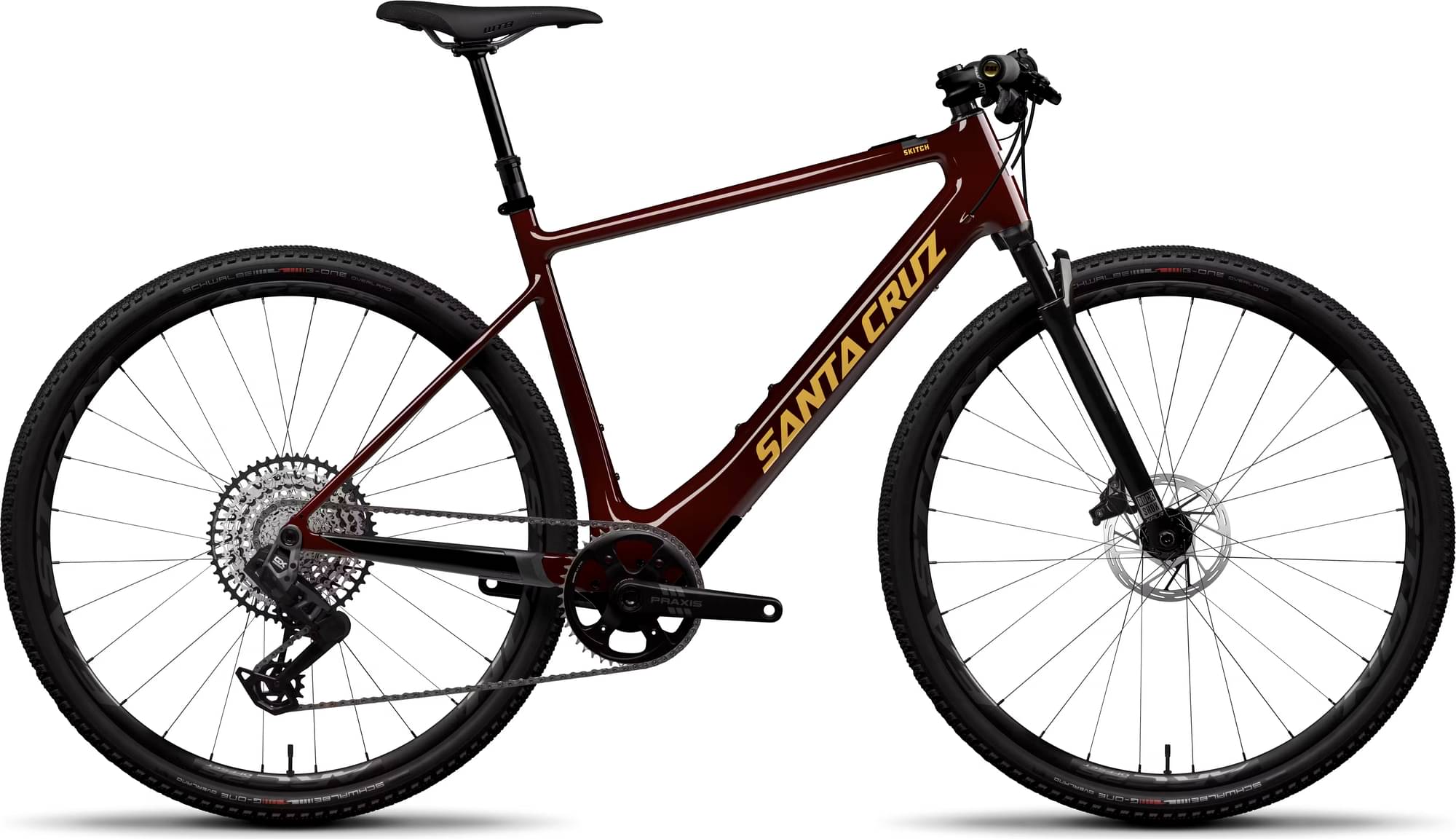

Santa Cruz SKITCH GX AXS Flat Bar / Carbon CC 2025
2025 E-bike
Estimate price |
7,599$
Weight | 14.99 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset RED AXS, GX Eagle Transmission -
Suspension Hardtail -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua 430 Wh Integrated Battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SKITCH GX AXS Flat Bar / Carbon CC
Suspension Fork
RockShox Rudy Base XPLR, 40mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
Praxis eTor AL, 107BCD
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
DT Swiss 370, 12x100, Centerlock, 28h
Rear Hub
DT Swiss 370, 12x148, XD, Centerlock, 28h
Rims
Front: Easton ARC Offset 25 700c, Rear: Easton ARC Offset 25 700c
Tires
Front: Schwalbe G-One Overland Evo, 700x50c, ADDIX SpeedGrip, Rear: Schwalbe G-One Overland Evo, 700x50c, ADDIX SpeedGrip
Brakes
Brakes
SRAM Level Silver Stealth 2-Piston
Cockpit
Stem
SRAM Atmos Stem, 80mm
Handlebar
SRAM Atmos Flat Bar, 31.8x760
Grips
ESI Chunky Grips
Headset
FSA IS-2/47/42 ACB -or- Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
OneUp Dropper Post, 27.2
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua 430 Wh Integrated Battery
Charger
Fazua Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.43 mm | 1.419 mm | 1.402 mm | 1.4 mm |
| Bottom Bracket Height | 279 mm | 281 mm | 281 mm | 283 mm | 283 mm |
| Front Center | 624 mm | 646 mm | 668 mm | 689 mm | 711 mm |
| Rake | 45 mm | 45 mm | 46 mm | 44 mm | 45 mm |
| Trail | 86 mm | 86 mm | 85 mm | 87 mm | 86 mm |
| Stack | 563 mm | 579 mm | 596 mm | 610 mm | 630 mm |
| Reach | 390 mm | 405 mm | 420 mm | 435 mm | 450 mm |
| Top Tube Length | 551 mm | 571 mm | 591 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1047 mm | 1070 mm | 1092 mm | 1112 mm | 1135 mm |
| Bottom Bracket Drop | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 728 mm | 753 mm | 778 mm | 804 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
