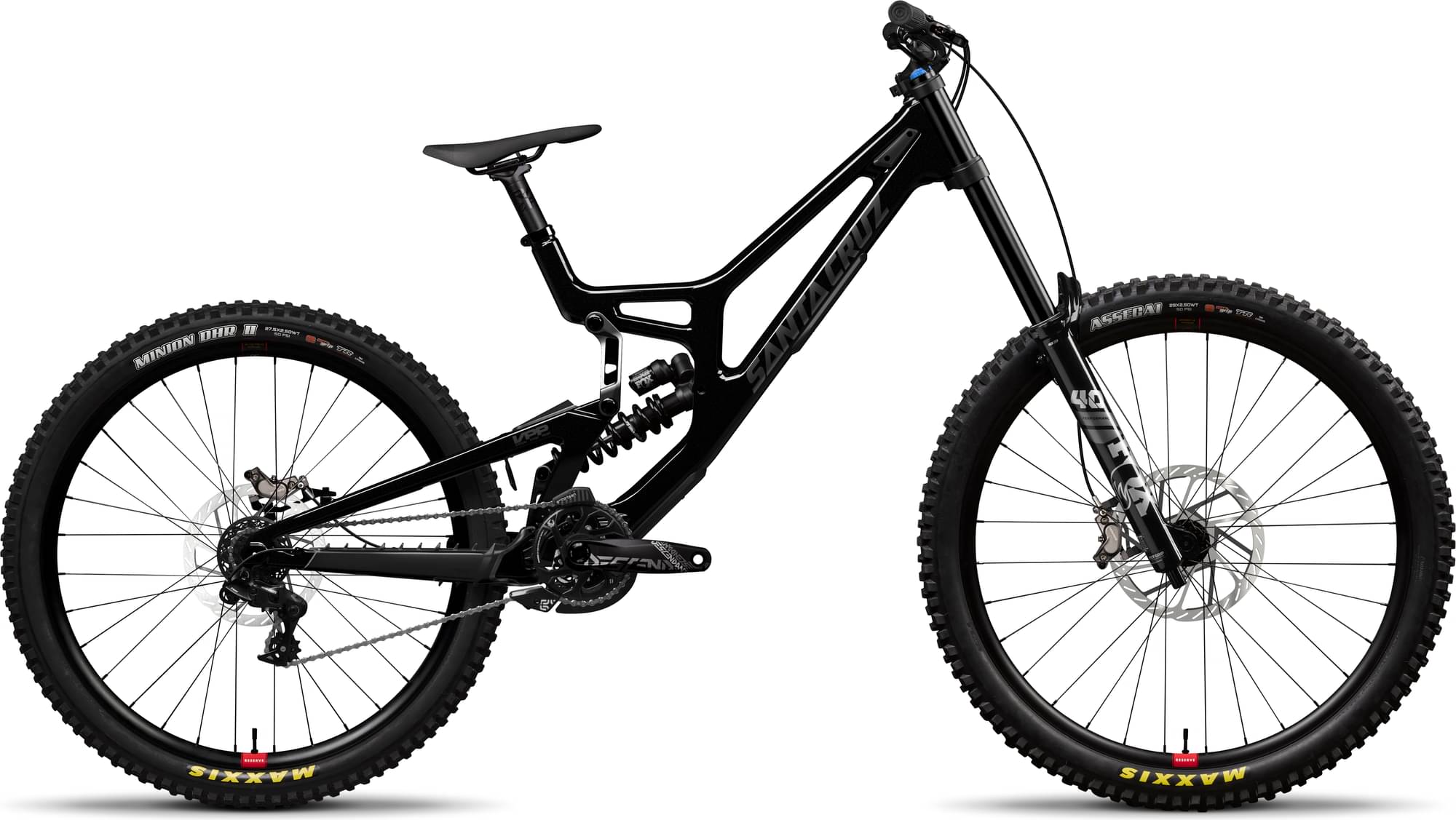

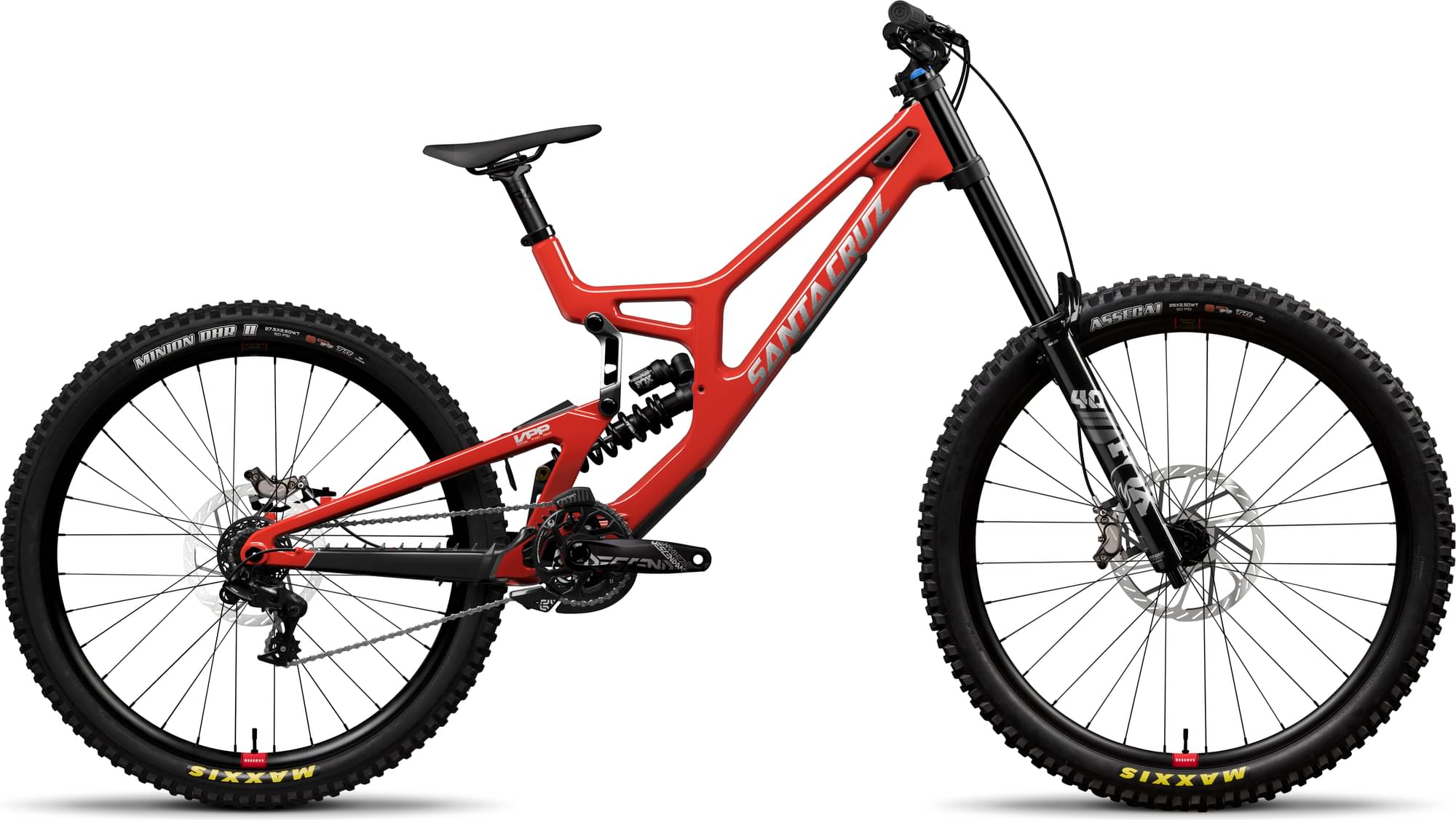

Santa Cruz V10 DH S 2024
2024 Mountain
Estimate price |
9,194$
Weight | 16.69 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 203mm -
Travel Rear 208mm -
Fork Fox Performance Float 40
-
Groupset Truvativ Descendant, GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 40 Float Performance, 203mm
Rear Shock
FOX DHX2 Performance Elite Coil
Drivetrain
Rear Derailleur
SRAM GX DH, 7spd
Front Derailleur
No compatibility
Shift Levers
SRAM GX, 7spd
Cassette
SRAM PG720 DH, 11-25t
Crank
SRAM Descendant DH, 165mm, 36t
Bottom Bracket
SRAM DUB 83mm Threaded BB
Chain
SRAM PC1110, 11spd
Chain Guide
E13 LG1+ Chainguide
Wheels
Front Hub
Front: Industry Nine 1/1 -or- DT 350, 20x110 Boost, 32h, Rear: 157x12
Rear Hub
Front: Industry Nine 1/1 -or- DT 350, 20x110 Boost, 32h, Rear: 157x12
Rims
Front: Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD, Rear: Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD
Tires
Front: Maxxis Assegai 2.5", 3C, MaxxGrip, Rear: Maxxis Assegai 27.5"x2.5", 3C, MaxxGrip -OR- Maxxis Minion DHR II 27.5"x2.5, 3C, MaxxGrip, DH
Brakes
Brakes
Rear: 200mm or 220mm Post
Cockpit
Stem
Santa Cruz Direct Mount 35x45/50 -OR- OneUp Direct Mount 35x45/50
Handlebar
OneUp Aluminum Bar, 35mm Rise, 800mm -OR- Burgtec RideWide DH Alloy Bar, 30mm Rise, 800mm
Grips
Burgtec Bartender Pro Grip
Headset
Cane Creek 40 IS41 Headset 1-1/8"
Seat
Saddle
Fizik Alpaca Gravita X5 Saddle
Seatpost
RaceFace Chester, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.405 mm | 1.354 mm | 1.296 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 785 mm | 825 mm | 847 mm | 874 mm |
| Rake | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm |
| Stack | 626 mm | 635 mm | 639 mm | 644 mm |
| Reach | 417 mm | 452 mm | 472 mm | 497 mm |
| Seat Tube Angle | 77.6 ° | 77.1 ° | 77 ° | 76.7 ° |
| Seat Tube Length | 435 mm | 445 mm | 455 mm | 465 mm |
| Head Tube Angle | 62.7 ° | 62.7 ° | 62.7 ° | 62.7 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 445 mm | 451 mm | 456 mm | 461 mm |
| Wheelbase | 1231 mm | 1276 mm | 1303 mm | 1335 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 724 mm | 726 mm | 726 mm | 726 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
