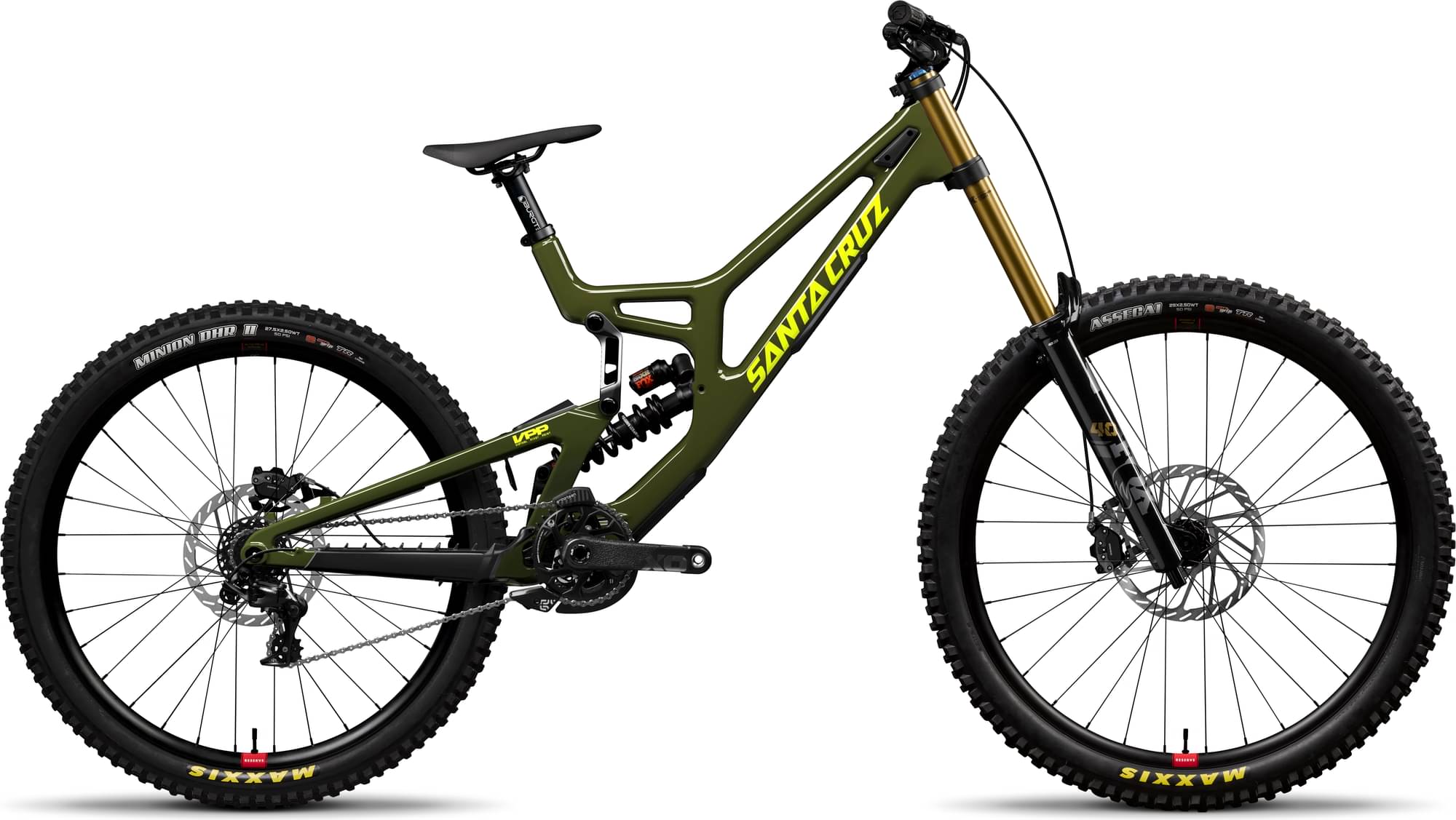

Santa Cruz V10 DH X01 / Carbon CC 2025
2025 Mountain
Estimate price |
11,283$
Weight | 16.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 203mm -
Travel Rear 208mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon CC MX 208mm Travel VPP™
Suspension Fork
FOX 40 Float Factory, Grip X2, 203mm
Rear Shock
Fox DHX2 Factory Coil
Drivetrain
Rear Derailleur
SRAM X01 DH, 7spd
Shift Levers
SRAM X01 DH
Cassette
SRAM X01 DH, 7spd
Crank
SRAM X01 DH, DUB 83, 165mm, 36t
Bottom Bracket
SRAM DUB 83mm Threaded BB
Chain
SRAM PC1170, 11spd
Chain Guide
E13 LG1+ Chainguide
Wheels
Front Hub
Front: Industry Nine 1/1, 20x110 Boost, 32h, Rear: Industry Nine 1/1, 12x157, XD, 32h
Rear Hub
Front: Industry Nine 1/1, 20x110 Boost, 32h, Rear: Industry Nine 1/1, 12x157, XD, 32h
Rims
Front: Reserve 30|HD AL 6069, Rear: Reserve 30|HD AL 6069
Tires
Front: Maxxis Minion DHR II 29"x2.5", 3C MaxxGrip, DH -or- Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH, Rear: Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH
Brakes
Brakes
SRAM Maven Silver
Cockpit
Stem
OneUp Direct Mount Stem
Handlebar
OneUp Aluminum Bar
Headset
Cane Creek 50 IS41 Headset 1-1/8"
Seat
Saddle
Fizik Alpaca Gravita X5 Saddle
Seatpost
Burgtec Aluminum Post, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.405 mm | 1.354 mm | 1.296 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 785 mm | 825 mm | 847 mm | 874 mm |
| Rake | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm |
| Stack | 626 mm | 635 mm | 639 mm | 644 mm |
| Reach | 417 mm | 452 mm | 472 mm | 497 mm |
| Seat Tube Angle | 77.6 ° | 77.1 ° | 77 ° | 76.7 ° |
| Seat Tube Length | 435 mm | 445 mm | 455 mm | 465 mm |
| Head Tube Angle | 62.7 ° | 62.7 ° | 62.7 ° | 62.7 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 445 mm | 451 mm | 456 mm | 461 mm |
| Wheelbase | 1231 mm | 1276 mm | 1303 mm | 1335 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 724 mm | 726 mm | 726 mm | 726 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
