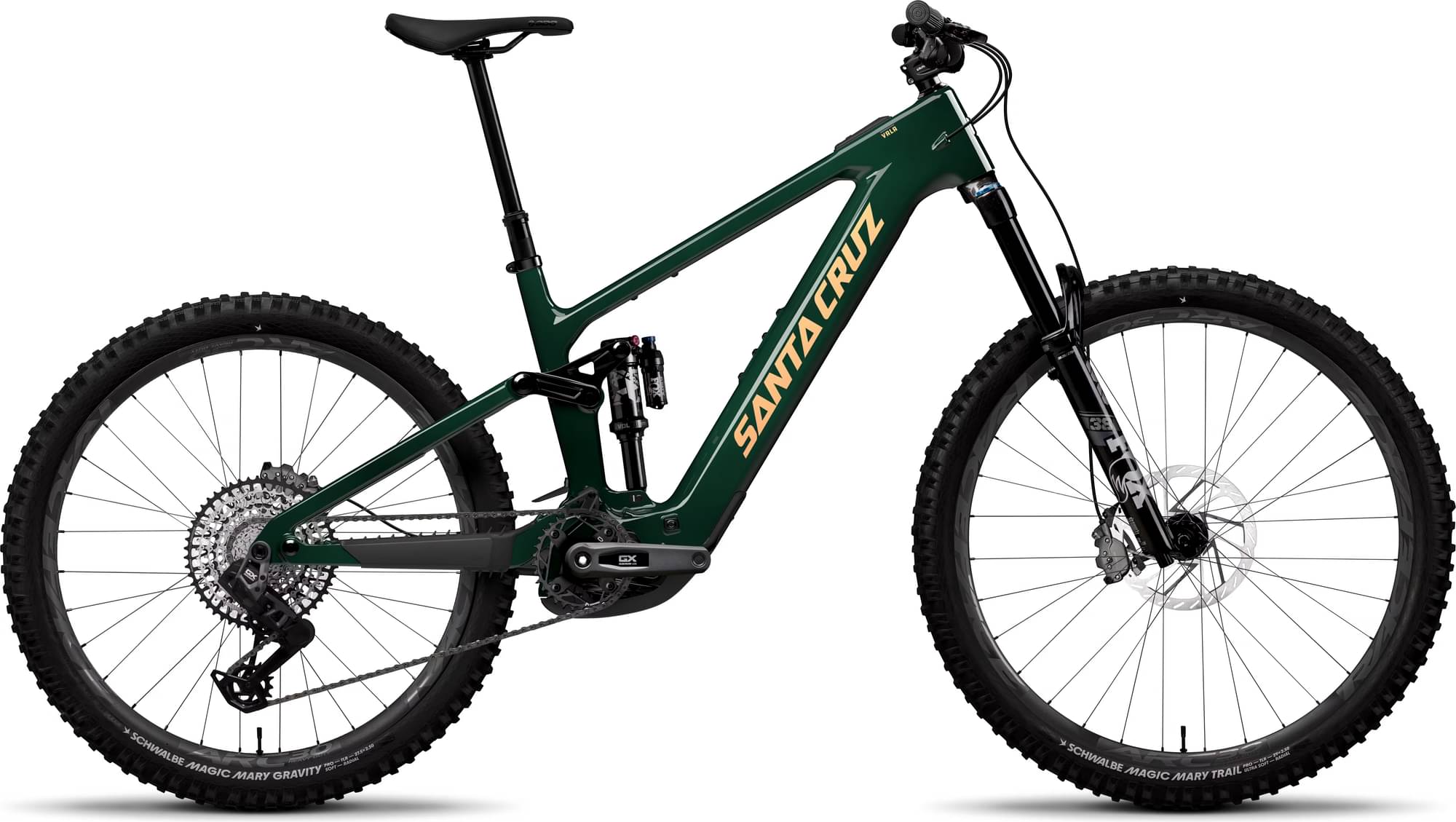

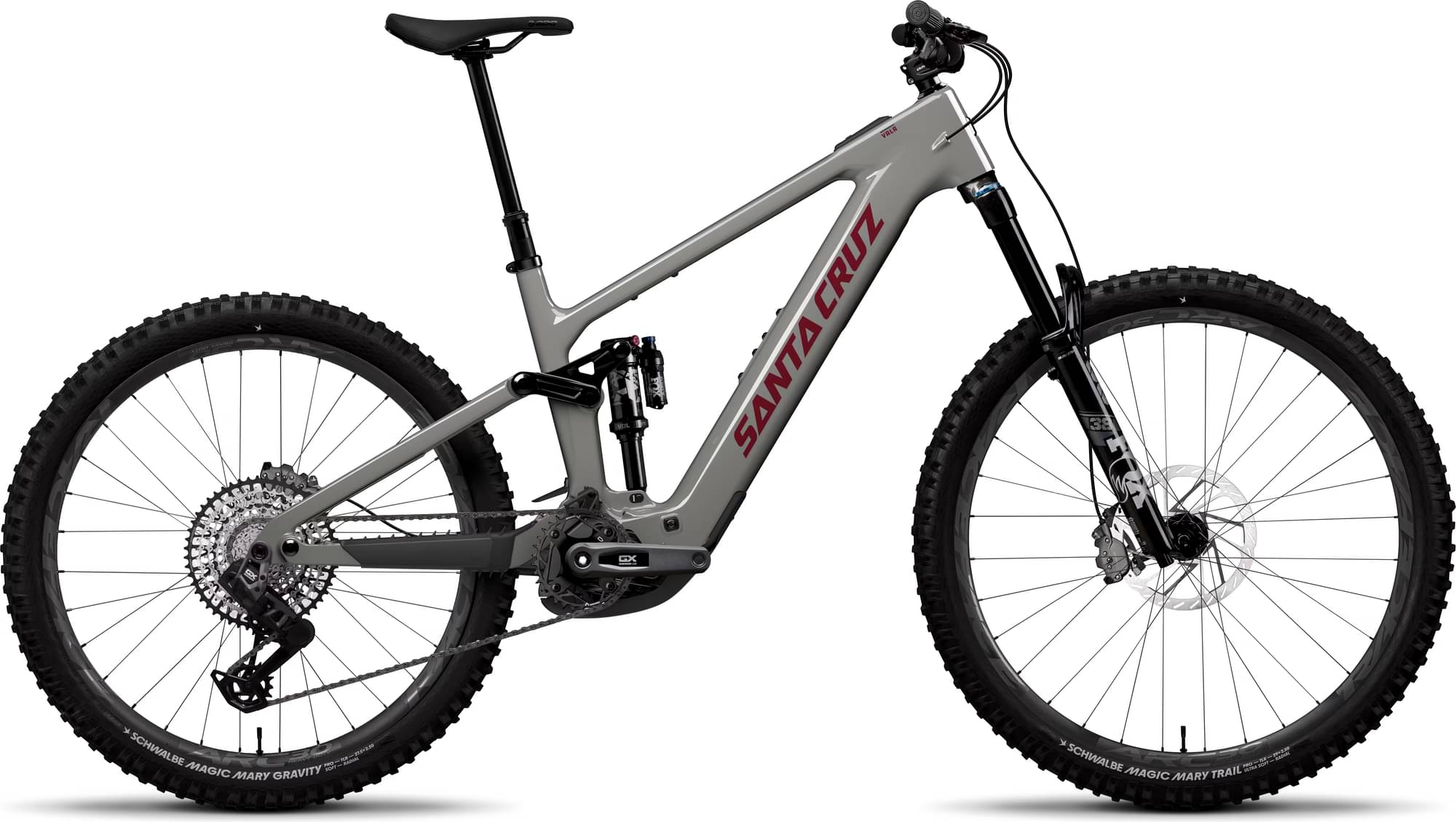

Santa Cruz VALA GX AXS / Carbon C 2025
2025 E-bike
Estimate price |
11,400$
Weight | 22.37 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube Battery 600Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
VALA GX AXS / Carbon C
Suspension Fork
FOX 38 Float Performance Elite, Grip X2, 160mm
Rear Shock
FOX Float X Performance Elite, 205x60
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
SRAM GX Eagle Cranks, 160mm
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
E13 SL, 15x110, 6-Bolt, 32h
Rear Hub
E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rims
Front: Raceface ARC 30 HD, Rear: Raceface ARC 30 HD
Tires
Front: Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft, Rear: Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Brakes
Brakes
SRAM Maven Bronze Stealth
Cockpit
Stem
OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm
Handlebar
OneUp Aluminum Bar, 35mm Rise, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 50 IS Integrated Headset
Seat
Saddle
SDG Bel-Air V3, Max Lux-Alloy Atmos
Seatpost
OneUp Dropper Post, 31.6
Motor & Battery
Motor
Bosch Performance CX BDU38
Battery
Bosch PowerTube Battery 600Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.447 mm | 1.374 mm | 1.393 mm | 1.335 mm | 1.348 mm | 1.31 mm | 1.322 mm | 1.272 mm | 1.284 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 771 mm | 771 mm | 800 mm | 800 mm | 825 mm | 825 mm | 851 mm | 851 mm | 883 mm | 883 mm |
| Rake | 44 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 132 mm | 133 mm | 132 mm | 133 mm | 131 mm | 133 mm | 132 mm | 134 mm | 131 mm | 133 mm |
| Stack | 623 mm | 625 mm | 632 mm | 635 mm | 641 mm | 643 mm | 655 mm | 657 mm | 668 mm | 670 mm |
| Reach | 435 mm | 432 mm | 460 mm | 456 mm | 480 mm | 477 mm | 500 mm | 497 mm | 525 mm | 522 mm |
| Top Tube Length | 573 mm | 573 mm | 601 mm | 601 mm | 622 mm | 622 mm | 645 mm | 645 mm | 673 mm | 673 mm |
| Seat Tube Angle | 77.5 ° | 77.2 ° | 77.5 ° | 77.2 ° | 77.5 ° | 77.2 ° | 77.5 ° | 77.2 ° | 77.5 ° | 77.2 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 420 mm | 420 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° | 64.2 ° | 63.9 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm | 145 mm | 145 mm | 160 mm | 160 mm |
| Chainstay Length | 439 mm | 439 mm | 440 mm | 440 mm | 443 mm | 443 mm | 446 mm | 446 mm | 450 mm | 450 mm |
| Wheelbase | 1210 mm | 1210 mm | 1240 mm | 1240 mm | 1268 mm | 1268 mm | 1297 mm | 1297 mm | 1333 mm | 1333 mm |
| Bottom Bracket Drop | 28 mm | 32 mm | 28 mm | 32 mm | 28 mm | 32 mm | 28 mm | 32 mm | 28 mm | 32 mm |
| Standover Height | 741 mm | 741 mm | 735 mm | 735 mm | 734 mm | 734 mm | 734 mm | 734 mm | 728 mm | 728 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
