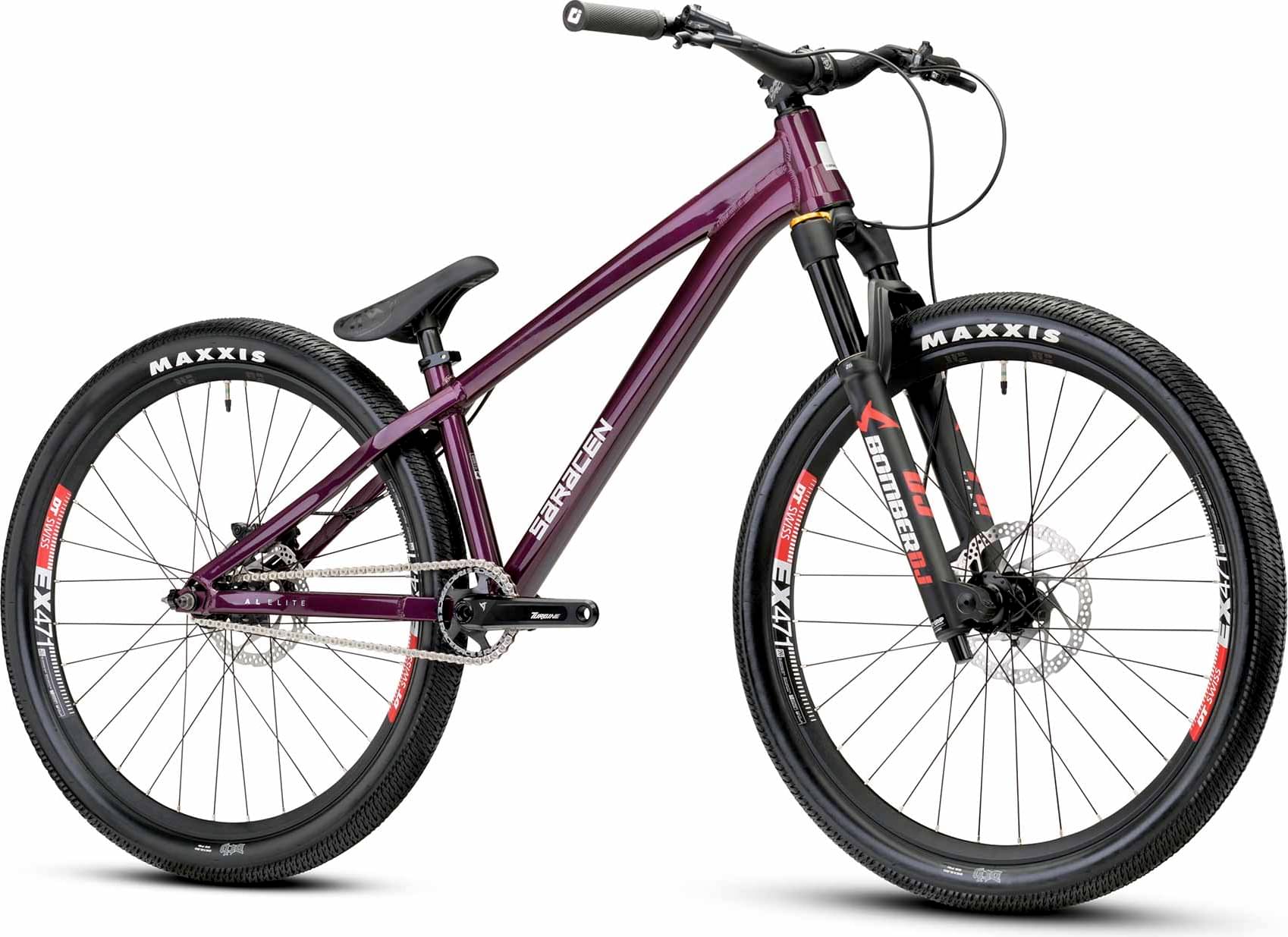

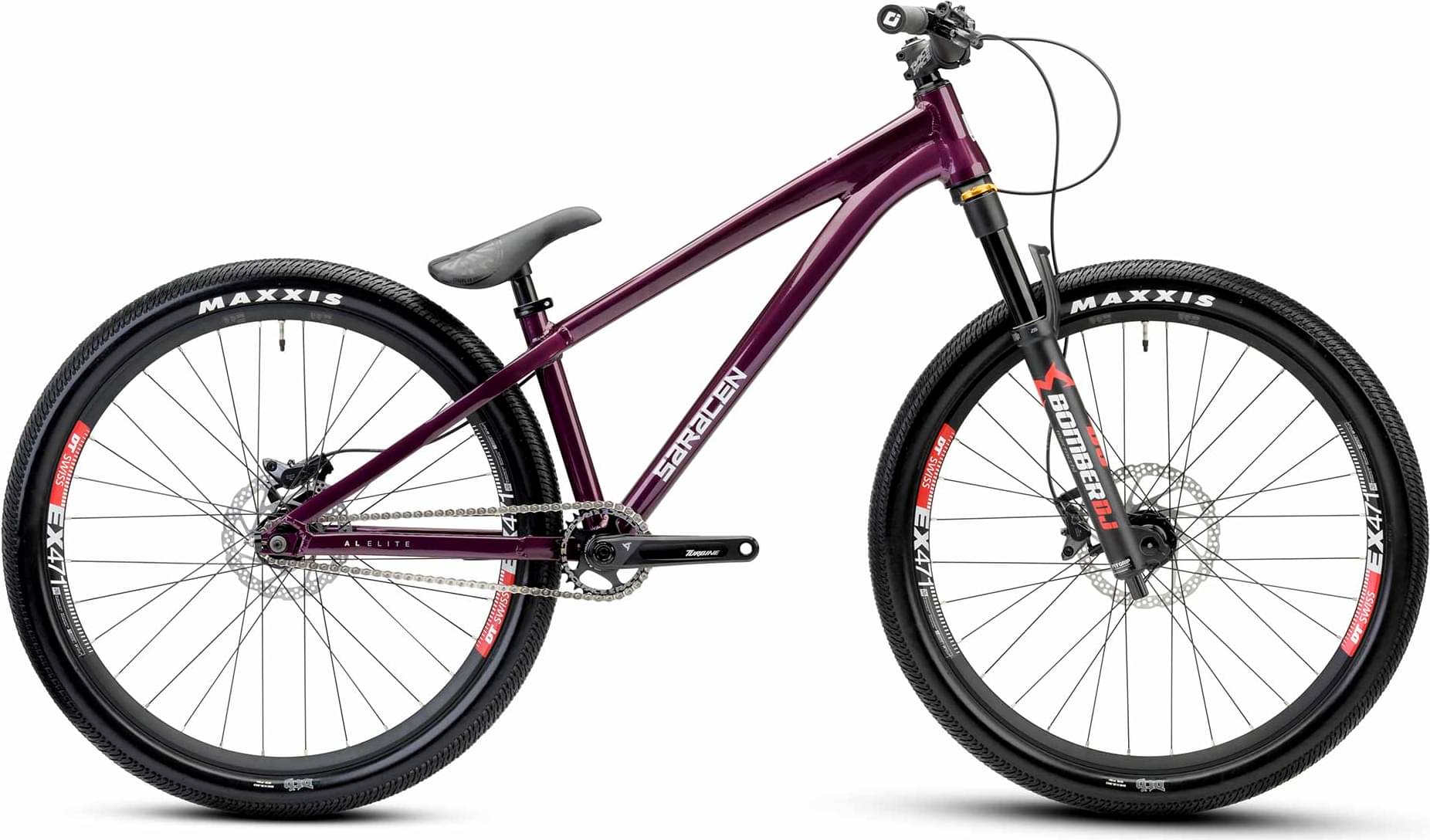

Saracen Amplitude AL Elite 2025
2025 Mountain
Estimate price |
2,031$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset Race Face -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
One Size
154cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY TUBESET. Headtube: ZS44-ZS56 tapered headtube. Dropout Design: singlespeed specific.
Suspension Fork
MARZOCCHI BOMBER DJ. Travel: 100mm. Technology: GRIP damper. Axle: 20mm thru-axle.
Drivetrain
Cassette
STEEL 12T. Speed: singlespeed.
Crank
RACEFACE TURBINE. Chain Ring: 28T. Crank Length: 170mm.
Bottom Bracket
RACEFACE SEALED BEARINGS.
Chain
KMC K1.
Wheels
Front Hub
FORMULA. Front: Formula DHL-92. Rear: Formula DC-52N. Brake Fitting: 6-bolt. Front Axle Type: 20 x 110. Rear Axle Type: 10 x 135 Nutted axle. Hole: 32H.
Rear Hub
FORMULA. Front: Formula DHL-92. Rear: Formula DC-52N. Brake Fitting: 6-bolt. Front Axle Type: 20 x 110. Rear Axle Type: 10 x 135 Nutted axle. Hole: 32H.
Rims
DT SWISS EX471. Hole: 32H. Size: 26''. Tubeless Ready: No.
Spokes
STEEL 14G.
Tires
MAXXIS. Model: DTH wire bead. Size: 26 x 2.3.
Brakes
Brakes
SHIMANO DEORE. Model: M6100. Brake Type: Hydraulic two piston. Rotor Size: 160/160mm.
Brake Levers
SHIMANO DEORE M6100.
Cockpit
Stem
RACEFACE CHESTER. Length: 35mm. Rise: 0 degree. Clamp: 35mm. Type: Ahead.
Handlebar
RACEFACE CHESTER. Width: 780mm. Rise: 35mm. Bar Bore: 35mm.
Grips
ODI ELITE MOTION.
Headset
FSA NO.8D.
Seat
Saddle
SARACEN CUSTOM INTEGRATED.
Seatpost
SARACEN. Type: Integrated with saddle. Size: 27.2mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.545 mm |
| Bottom Bracket Height | 328 mm |
| Front Center | 650 |
| Rake | 6 mm |
| Trail | 132 mm |
| Stack | 618 mm |
| Reach | 400 mm |
| Top Tube Length | 580 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 310 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 115 mm |
| Chainstay Length | 390 mm |
| Wheelbase | 1040 mm |
| Bottom Bracket Drop | 15 mm |
| Wheels | 26" |
| Rider Min Height | 154 cm |
| Rider Max Height | 184 cm |
