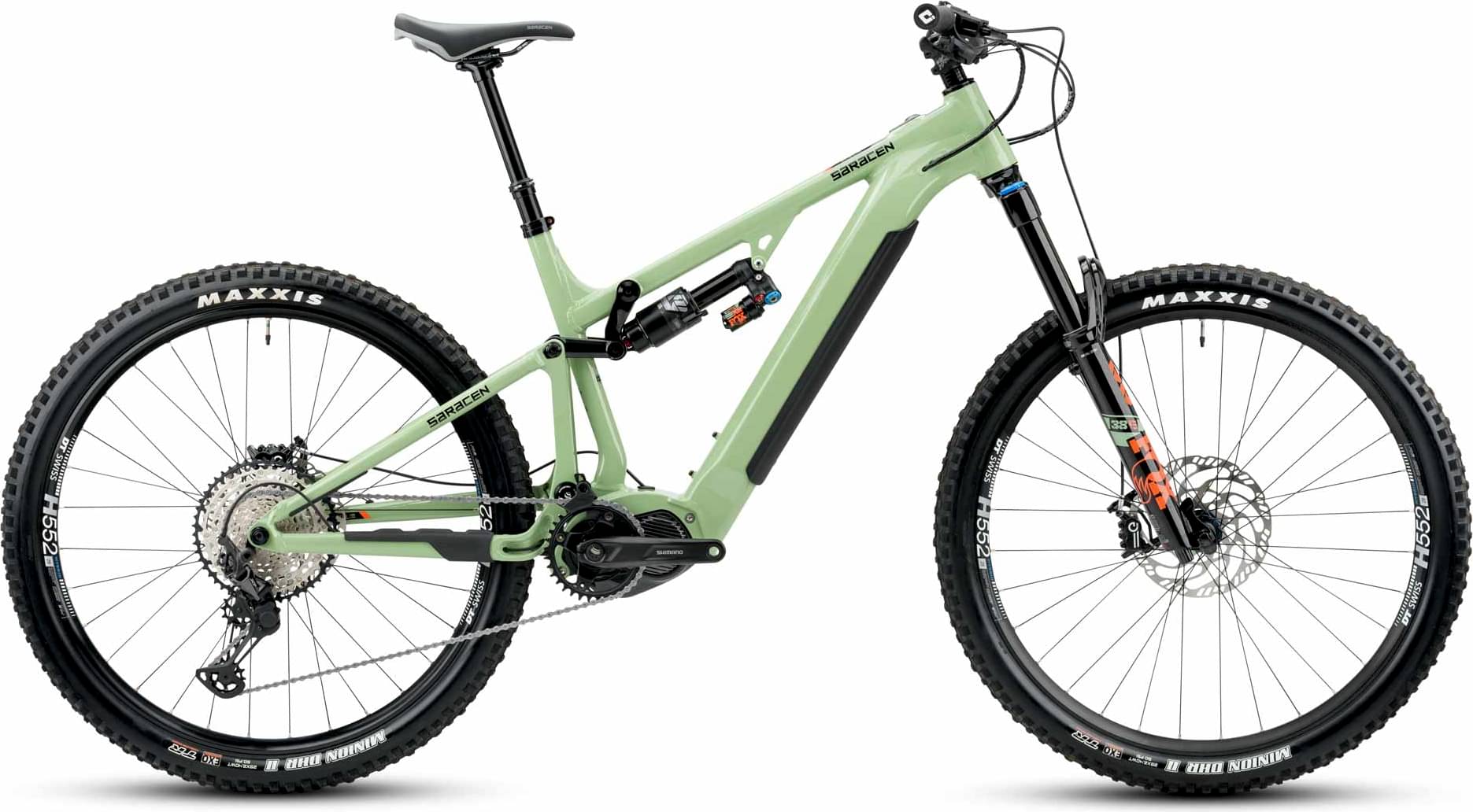

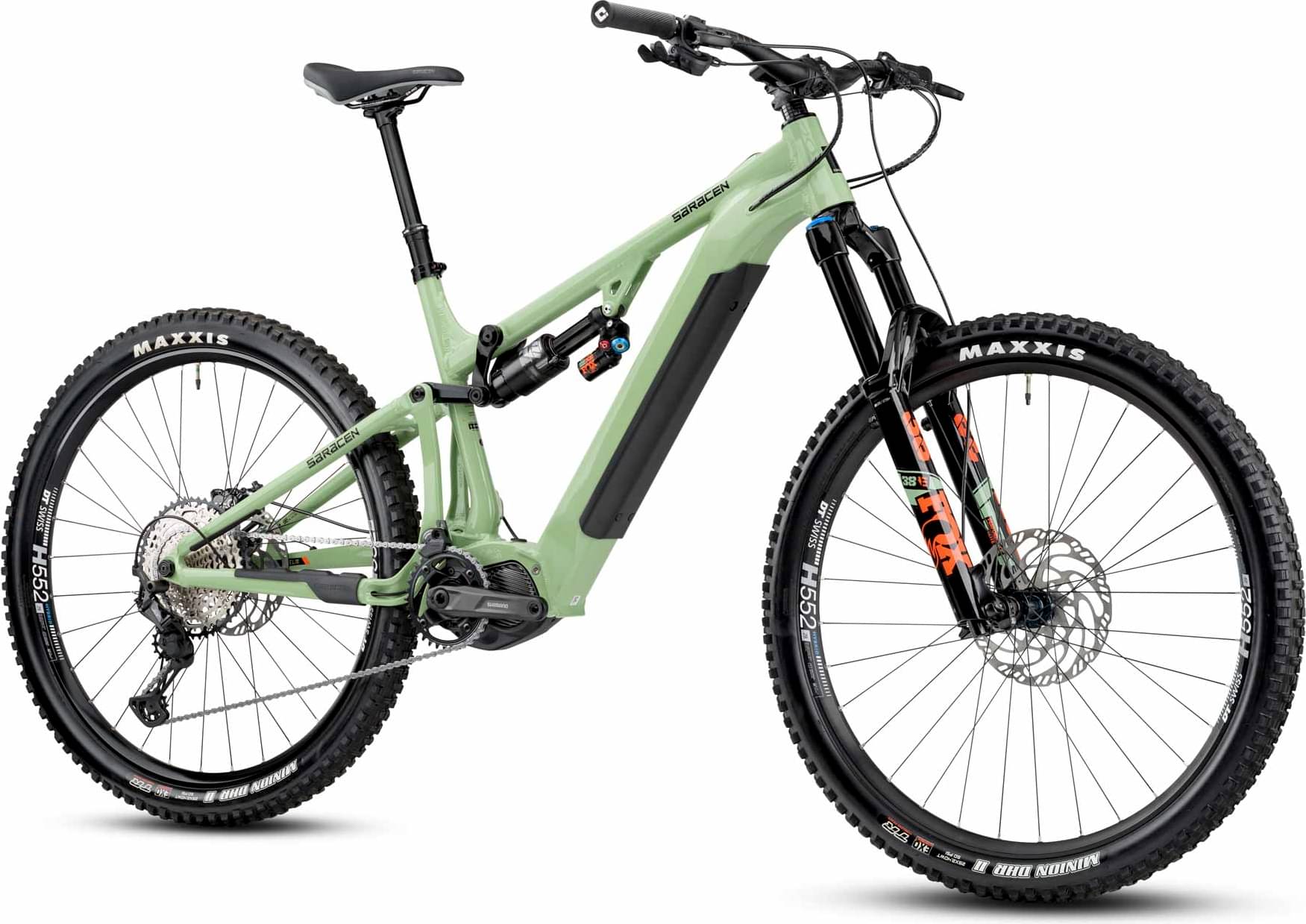

Saracen Ariel 50E Pro 2025
2025 E-bike
Estimate price |
8,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 500W 85Nm mid-drive -
Battery DARFON. Model: fully integrated. Power: 720Wh. -
Drivetrain 1 × 12 -
Brakes Magura MT5 eSTOP Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 172cm
MD
170cm - 180cm
LG
178cm - 186cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM. Design: Integrated battery and motor mount / Integrated charger port. Headtube: ZS44-ZS56 tapered headtube. Bearings: 37mm main pivot bearings / 28mm linkage bearings. Linkage: Convertible CNC linkage included for both mullet and 29er setups. Suspension: Signature TRL suspension design. Cable Routing: Internal. Axle: 12 x 157mm SuperBoost dropout system. Rear Travel: 150mm.
Suspension Fork
FOX 38-E PERFORMANCE ELITE. Travel: 160mm. Technology: Tapered steerer / HSC LSC HSR LSR adjust / Grip2 damper. Axle: 15x110 Boost. : 44mm.
Rear Shock
FOX FLOAT X2 PERFORMANCE. Model: HSC LSC HSR LSR adjust / 2 position adjust. Adjustment: 230 x 65.
Drivetrain
Rear Derailleur
SHIMANO XT. Model: M8100 SGS Shadow Plus. Speed: 12 speed.
Shift Levers
SHIMANO SLX. Model: M7100 Rapidfire Plus 2-way release. Speed: 1x12 speed.
Cassette
SHIMANO DEORE. Model: M7100. Speed: 12 speed. Ratio: 10-51T.
Crank
SHIMANO. Model: FC-EM600. Chain Ring: 34T. Crank Length: 165mm.
Chain
KMC E12.
Wheels
Front Hub
SHIMANO. Front: SLX HB-M7110 32H. Rear: SLX FH-M7130 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rear Hub
SHIMANO. Front: SLX HB-M7110 32H. Rear: SLX FH-M7130 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rims
DT SWISS H552. Hole: 32H. Size: 29'' Front / 29'' Rear (Sizes Large / XL) 29'' Front / 27.5'' Rear (Sizes Small / Medium). Tubeless Ready: Yes.
Spokes
DOUBLE-BUTTED STAINLESS STEEL.
Tires
MAXXIS MINION DHRII. Model: EXO TR. Size: 29 x 2.4 Front & Rear (Sizes Large / XL) / 29 x 2.4 Front / 27.5 x 2.3 Rear (Sizes Small / Medium).
Brakes
Brakes
MAGURA. Brake Type: MT5 eSTOP. Rotor Size: Hydraulic four piston. : 203/203mm.
Brake Levers
MAGURA.
Cockpit
Stem
RACEFACE CHESTER 35. Length: 40mm. Clamp: 0 degree. Type: 35mm. : Ahead.
Handlebar
RACEFACE ATLAS 35. Width: 820mm. Rise: 35mm. Bend: 35mm.
Grips
ODI ELITE MOTION.
Headset
PRESTINE PT-F13.
Seat
Saddle
SARACEN CUSTOM CRMO E-MTB.
Seatpost
KS RAGE I. Size: Internal. Length: 30.9mm. : 150mm, 125mm on size small. : Westy remote.
Motor & Battery
Motor
SHIMANO STEPS. Model: Shimano EP-800. Assistance: Up to 25Km/h.
Battery
DARFON. Model: fully integrated. Power: 720Wh.
Charger
DARFON. Model: UK Charger.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.317 mm | 1.269 mm | 1.248 mm |
| Front Center | 786 mm | 811 mm | 840 mm | 866 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 127 mm | 127 mm | 127 mm | 127 mm |
| Stack | 632 mm | 632 mm | 641 mm | 655 mm |
| Reach | 455 mm | 480 mm | 505 mm | 525 mm |
| Top Tube Length | 612 mm | 637 mm | 665 mm | 688 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1250 mm | 1275 mm | 1304 mm | 1330 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 794 mm | 794 mm | 793 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 170 cm | 178 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 186 cm | 196 cm |
