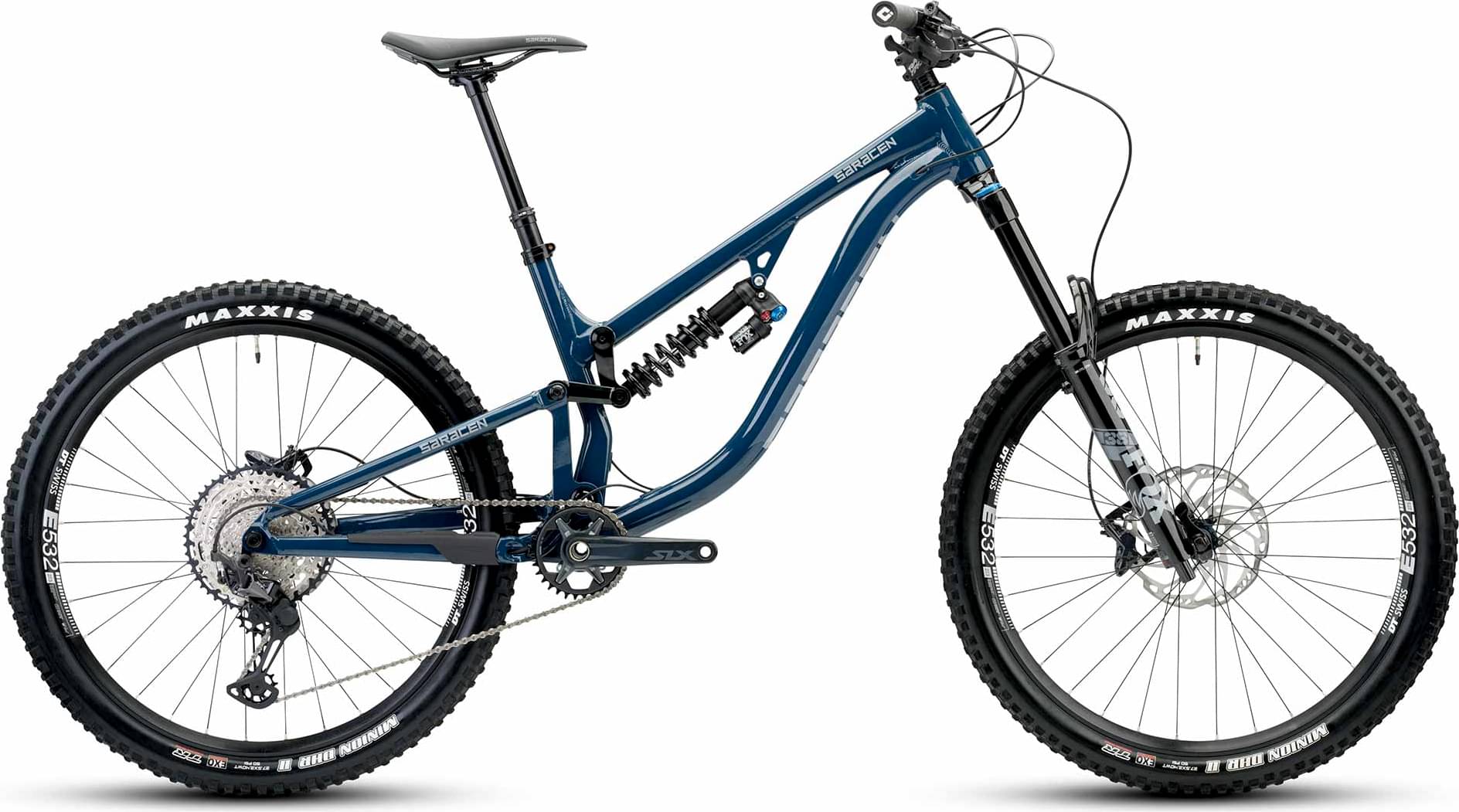

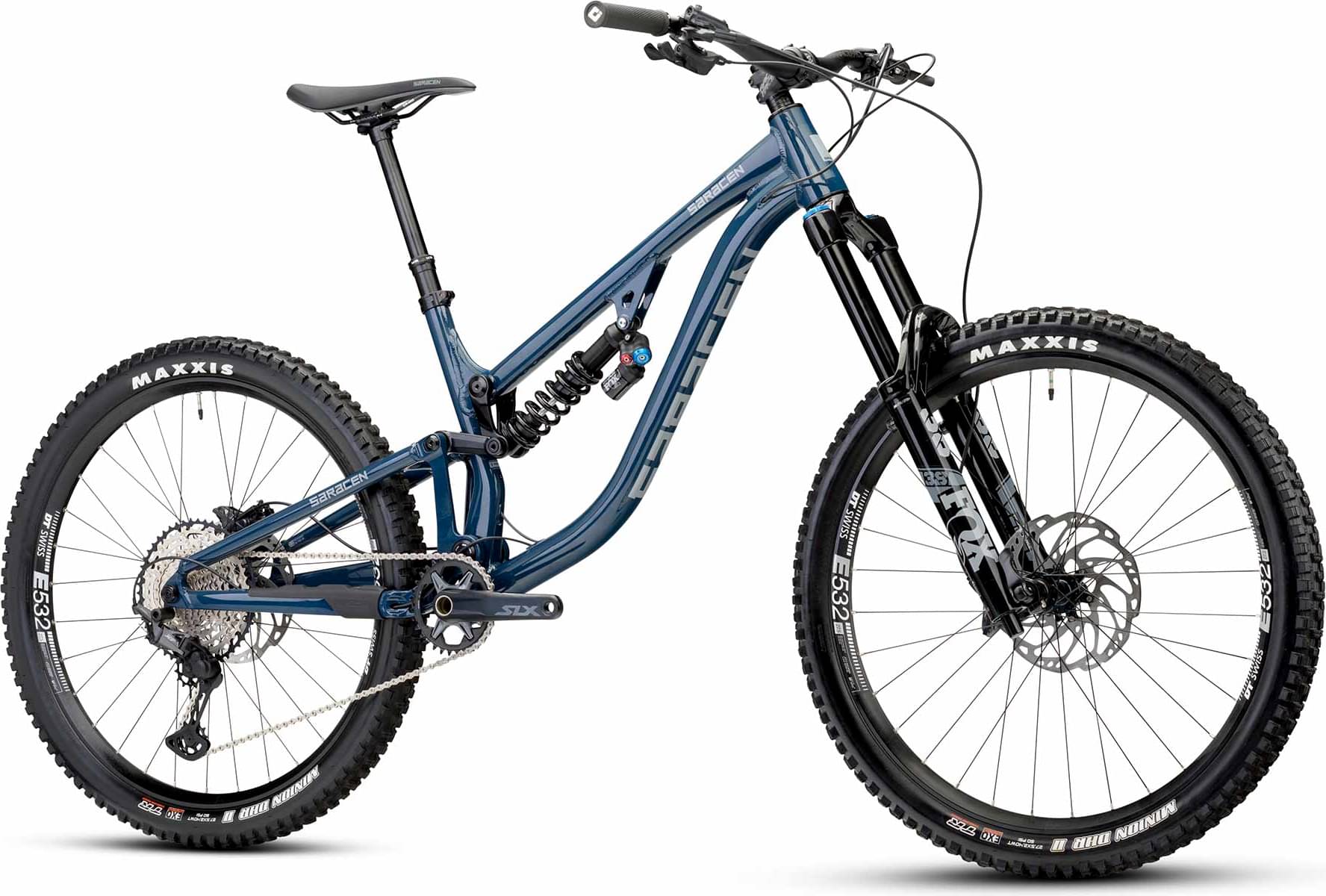

Saracen Ariel 80 Pro – Blue 2024
2024 Mountain
Estimate price |
4,741$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 172cm
MD
170cm - 180cm
LG
178cm - 186cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM. Headtube: ZS44-ZS56 tapered headtube. Bearings: 37mm main pivot bearings / 28mm linkage bearings. Suspension: Signature TRL suspension design. Cable Routing: Internal. Axle: 12 x 157mm SuperBoost dropout system. Rear Travel: 180mm.
Suspension Fork
FOX 38 PERFORMANCE ELITE. Travel: 180mm. Technology: Tapered steerer / HSC LSC HSR LSR adjust / Grip2 damper. Axle: 15x110 Boost. Rake: 44mm.
Rear Shock
FOX FLOAT DHX2 PERFORMANCE. Adjustment: 2-position adjust. Length / Stroke: 250 x 70.
Drivetrain
Rear Derailleur
SHIMANO XT. Model: M8100 SGS Shadow Plus. Speed: 12 speed.
Shift Levers
SHIMANO SLX; M7100 RAPIDFIRE PLUS 2-WAY RELEASE. Model: 1x12 speed.
Cassette
SHIMANO SLX. Model: M7100. Speed: 12 speed. Ratio: 10-51T.
Crank
SHIMANO SLX. Model: FC-M7130. Chain Ring: 32T. Crank Length: 170mm / 56.5mm.
Bottom Bracket
SHIMANO BB-MT800 73MM.
Chain
KMC X12.
Wheels
Front Hub
KT. Front: Sealed Bearing 32H. Rear: Sealed Bearing 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rear Hub
KT. Front: Sealed Bearing 32H. Rear: Sealed Bearing 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rims
DT SWISS E532. Hole: 32H. Size: 27.5''. Tubeless Ready: Yes.
Spokes
DOUBLE-BUTTED STAINLESS STEEL.
Tires
MAXXIS MINION DHRII. Model: EXO TR. Size: 27.5 x 2.4.
Brakes
Brakes
SHIMANO SLX. Model: BR-M7120. Brake Type: Hydraulic four piston. Rotor Size: 203/203mm.
Brake Levers
SHIMANO SLX.
Cockpit
Stem
RACEFACE CHESTER 35. Length: 40mm. Rise: 0 degree. Clamp: 35mm. Type: Ahead.
Handlebar
RACEFACE ATLAS 35. Width: 820mm. Rise: 35mm. Bar Bore: 35mm.
Grips
ODI ELITE MOTION.
Headset
PRESTINE PT-F13.
Seat
Saddle
SARACEN CUSTOM CRMO MTB.
Seatpost
KS RAGE I. Routing: Internal. Size: 30.9mm. Travel: 170mm, 150mm on size small. Lever: Westy remote.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.326 mm | 1.287 mm | 1.249 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 769 mm | 798 mm | 830 mm | 862 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 602 mm | 610 mm | 624 mm | 637 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 580 mm | 607 mm | 635 mm | 663 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 360 mm | 360 mm | 410 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1207 mm | 1236 mm | 1268 mm | 1300 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 735 mm | 735 mm | 736 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 170 cm | 178 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 186 cm | 196 cm |
