Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork Marzocchi Bomber Z2
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Marzocchi Bomber Z2, RAIL damper, Sweep Adjust, rebound adjust
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
Truvativ Stylo 6K Eagle DUB, 170-175mm length
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Formula, sealed bearings, DC-711 110x15mm Boost front, DCL-348S 148x12mm Boost rear with HG driver
Rear Hub
Formula, sealed bearings, DC-711 110x15mm Boost front, DCL-348S 148x12mm Boost rear with HG driver
Rims
Jalco SHL320S, 29mm internal width, 32 hole, tubeless ready
Spokes
Double-butted stainless steel
Tires
VEE Tire Co. Flow Snap, Tackee Compound, TR, 29" x 2.6"
Brakes
Brakes
Shimano MT420, 4-piston, 180mm 6-bolt rotors
Brake Levers
Shimano M4100
Cockpit
Stem
Saracen, 6061 die-cast alloy, 40mm length, 3° rise, 31.8mm bar clamp
Handlebar
Saracen, OS double-butted 6061 alloy, 780mm width, 30mm rise, 6° bend, 31.8mm clamp diameter
Grips
Saracen, lock-on
Headset
FSA No.57SC, ZS44 upper, ZS56 lower
Seat
Saddle
Saracen Custom MTB, CrMo rails
Seatpost
KS Rage-i dropper, Southpaw remote lever, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 744 mm | 771 mm | 803 mm | 827 mm |
| Rake | 43 mm | 43 mm | 44 mm | 43 mm |
| Trail | 123 mm | 123 mm | 122 mm | 123 mm |
| Stack | 620 mm | 625 mm | 638 mm | 648 mm |
| Reach | 434 mm | 459 mm | 484 mm | 504 mm |
| Top Tube Length | 602 mm | 628 mm | 657 mm | 679 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 360 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 135 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1174 mm | 1201 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

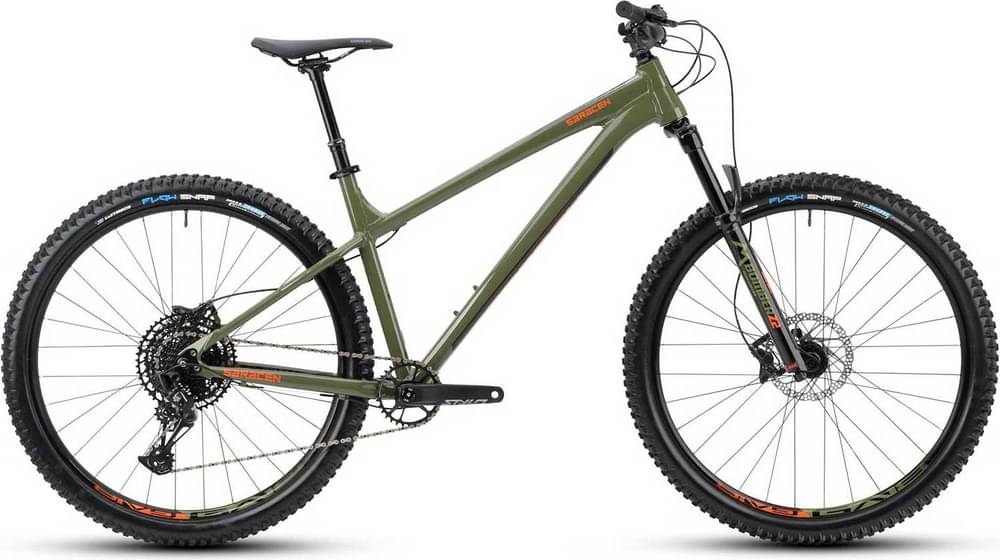

Zenith Elite LSL completes the Saracen Zenith model. Saracen launched 3 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Zenith Elite LSL weighs 14.1 kg (31.09 lbs) and is a bit heavier than the average. In other words, this model is 8.63% heavier than the average Trail bike.
Overview of components
Fork
Saracen Zenith Elite LSL 2021 bike is equipped with the Marzocchi Bomber Z2 fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Zenith Elite LSL are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Zenith Elite LSL. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
