Bike details
Overview
Key information split into simple groups.

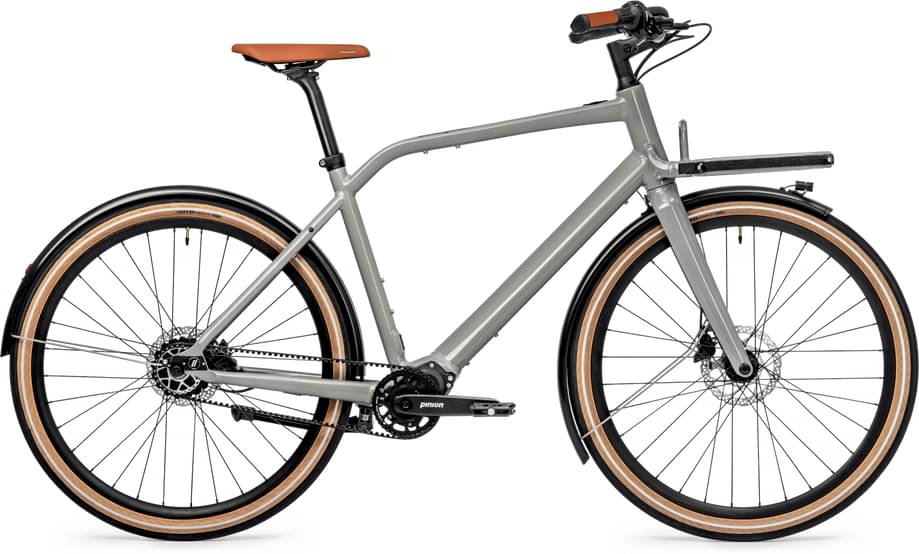

Bike summary
-
-
Frame Aluminum -
Groupset Pinion -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle-ebikemotion – intube battery, energy: 250 Wh -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged PINION bracket, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, points for frame mounted front rack, smooth welded, internal cable routing
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Pinion C-Line gear box 6-/9-speed (XR)
Crank
Pinion
Bottom Bracket
Pinion
Pedals
VP – Nylon, with grip tape
Wheels
Rims
Schindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – DP23 27,5“ rims, Sapim – spokes, 3-cross and 1-cross laced
Tires
WTB – Horizon 47-584, with reflex stripes
Brakes
Brakes
Shimano – MT200 disc brakes (hydraulic) 160 mm
Cockpit
Stem
Satori – Stealth, aluminium
Handlebar
Schindelhauer - CITY, aluminium
Grips
Schindelhauer
Headset
Acros - ICR 1,5'
Seat
Saddle
Schindelhauer
Seatpost
Schindelhauer
Motor & Battery
Motor
Mahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h
Battery
Mahle-ebikemotion – intube battery, energy: 250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.428 mm | 1.432 mm |
| Stack | 605 mm | 624 mm | 643 mm |
| Reach | 419 mm | 437 mm | 449 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1077 mm | 1097 mm | 1117 mm |
| Standover Height | 808 mm | 836 mm | 873 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
