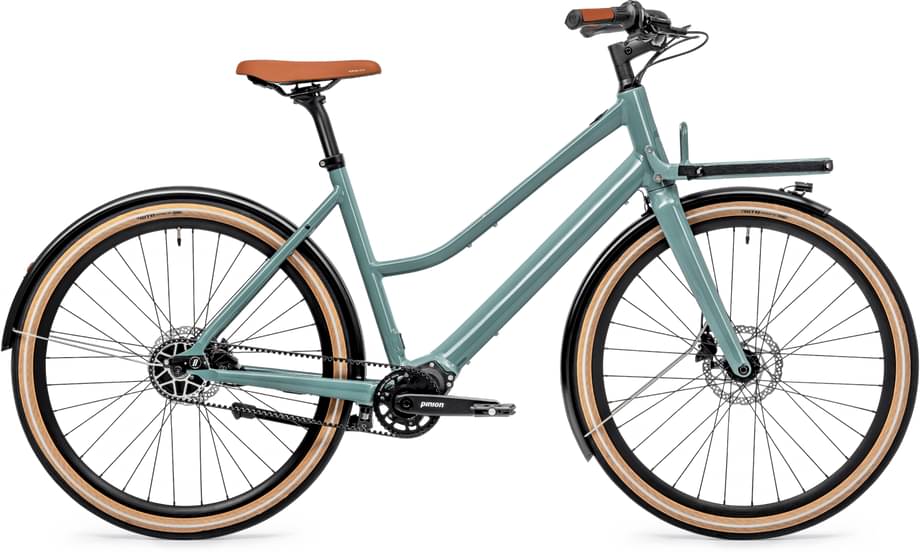

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Pinion -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle-ebikemotion – intube battery, energy: 250 Wh -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged PINION bracket, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, points for frame mounted front rack, smooth welded, internal cable routing
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Pinion C-Line gear box 6-/9-speed (XR)
Crank
Pinion
Bottom Bracket
Pinion
Pedals
VP – Nylon, with grip tape
Wheels
Rims
Schindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – DP23 27,5“ rims, Sapim – spokes, 3-cross and 1-cross laced
Tires
WTB – Horizon 47-584, with reflex stripes
Brakes
Brakes
Shimano – MT200 disc brakes (hydraulic) 160 mm
Cockpit
Stem
Satori – Stealth, aluminium
Handlebar
Schindelhauer - CITY, aluminium
Grips
Schindelhauer
Headset
Acros - ICR 1,5''
Seat
Saddle
Schindelhauer
Seatpost
Schindelhauer
Motor & Battery
Motor
Mahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h
Battery
Mahle-ebikemotion – intube battery, energy: 250 Wh
Fit data
Geometry
