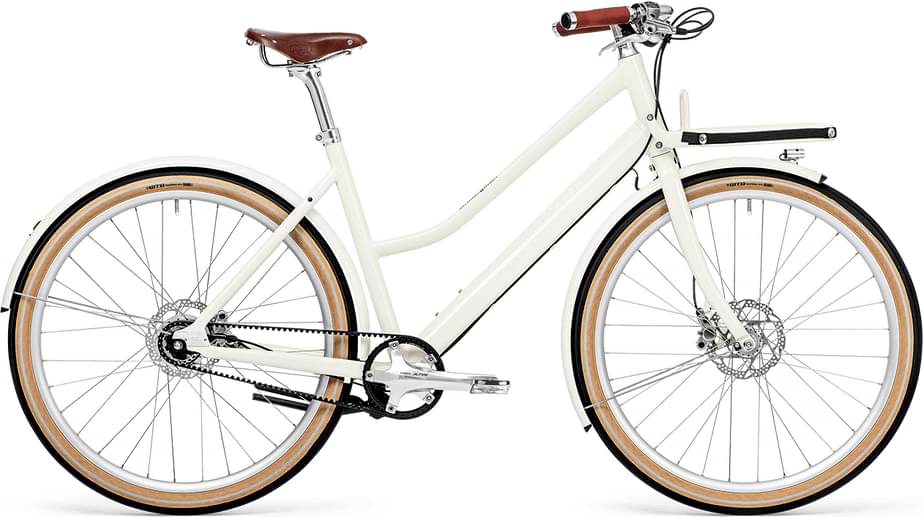

schindelhauer Greta Classic Edition 2025
2025 Urban
Weight | 15.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Shimano Alfine Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded
Suspension Fork
curved aluminium fork for disc brake mount
Drivetrain
Shift Levers
Shimano - Alfine 8-speed
Crank
Shimano – Alfine Hollowtech II
Bottom Bracket
BSA, Shimano – Alfine Hollowtech II
Pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
Wheels
Rims
Shutter Presision – PL-8 hub dynamo, SRAM – Shimano Alfine 8-speed, RYDE – RIVAL 26 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced
Tires
WTB - Horizon 47 - 584, with reflex stripes
Brakes
Brakes
Shimano - Alfine S7000 disc brake (hydraulic), 160mm
Cockpit
Stem
Schindelhauer
Handlebar
Schindelhauer - Jane, Aluminium
Grips
Schindelhauer – ergo leather grips
Headset
Tange Seiki - integrated, 1 1/8
Seat
Saddle
Brooks – B17S lady
Seatpost
Schindelhauer
Fit data
Geometry
