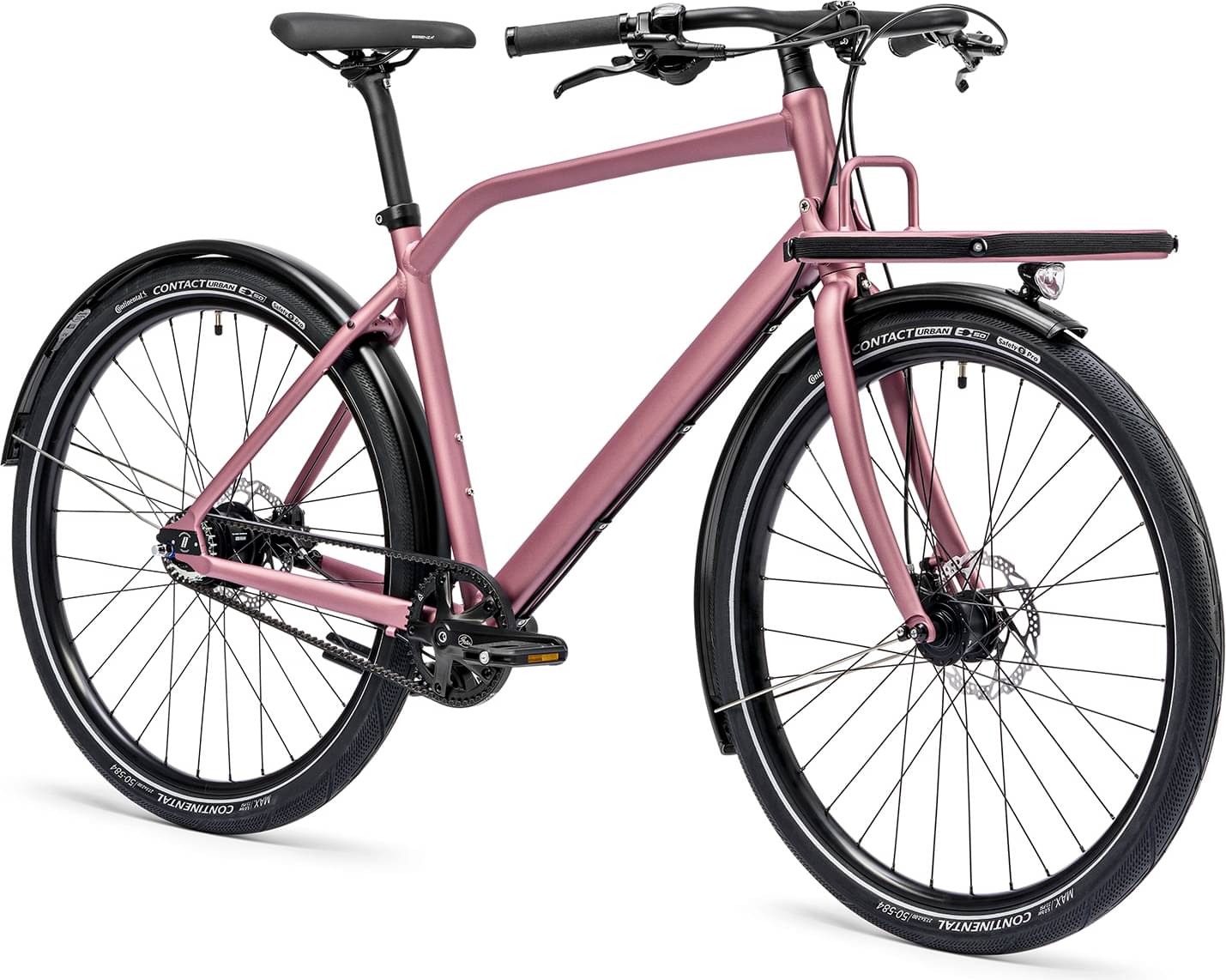

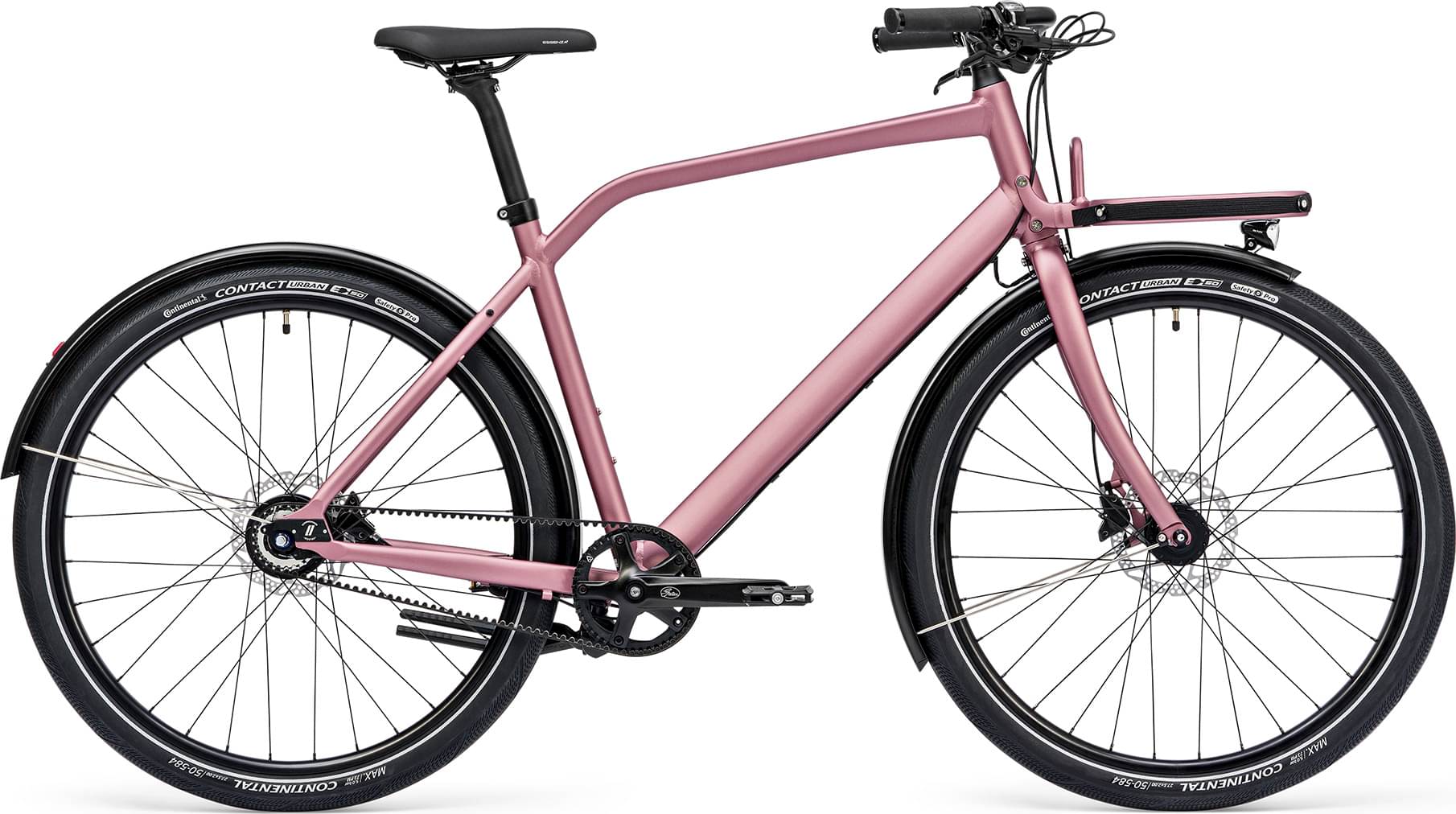

schindelhauer Gustav 2023
2023 Urban
Estimate price |
2,036$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus, Gates -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
168cm - 178cm
MD
176cm - 187cm
LG
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded
Suspension Fork
curved aluminium fork for disc brake mount
Drivetrain
Shift Levers
Shimano - Nexus 8-speed
Crank
Gates Carbon Drive - S150
Bottom Bracket
THUN - Zumba
Pedals
VP - Nylon, with grip tape
Wheels
Rims
Shimano - DH-T4050 hub dynamo, Shimano Nexus 8-speed, Alexrims - DP23 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced
Tires
Continental - Contact Urban
Brakes
Brakes
Shimano – MT200 disc brakes (hydraulic) 160 mm
Cockpit
Stem
Schindelhauer
Handlebar
Schindelhauer - Jane, Aluminium
Grips
Schindelhauer
Headset
Tange Seiki - integrated, 1 1/8
Seat
Saddle
Schindelhauer
Seatpost
Schindelhauer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.396 mm | 1.442 mm |
| Stack | 615 mm | 624 mm | 653 mm |
| Reach | 409 mm | 447 mm | 453 mm |
| Top Tube Length | 590 mm | 630 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 190 mm | 200 mm | 230 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1063 mm | 1104 mm | 1118 mm |
| Standover Height | 808 mm | 836 mm | 873 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 168 cm | 176 cm | 185 cm |
| Rider Max Height | 178 cm | 187 cm | 200 cm |
About this model
Gustav is part of the Schindelhauer Gustav model. 2 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter bikes
Our math shows that the average cost of a dependable Commuter bike is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1858$. Doing a quick comparison, we notice that Gustav price is 143.83% more expensive than the average cost of a Commuter bike.
Average weight for Commuter bikes
Commuter bikes weigh an average of 13.77 kg (30.36 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Gustav has a weight of 15 kg (33.07 lbs). In short, the average Commuter bike weight is 8.93% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Schindelhauer Gustav 2023, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 168 cm – 200 cm (5.51 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
