schindelhauer Gustav Classic Edition 2025

2025 Urban
Weight | 15.2 kg
Open compare Use advisor

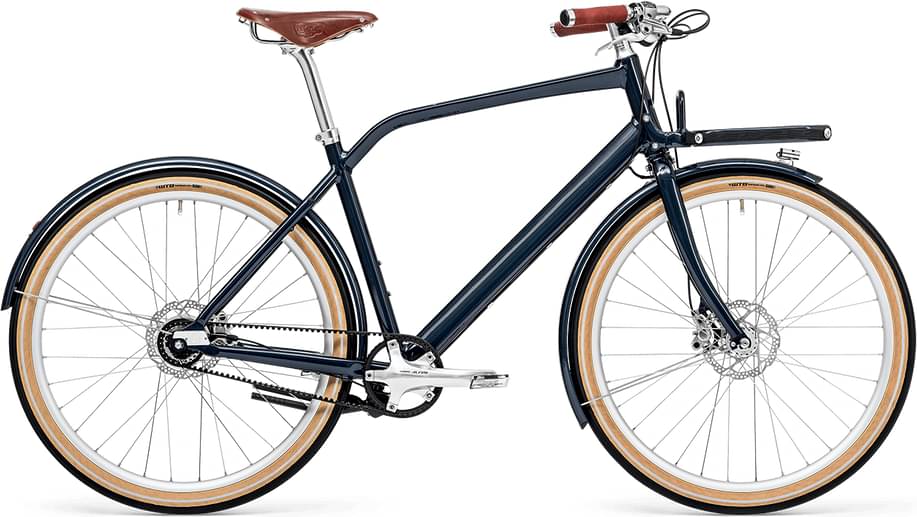

Schindelhauer Gustav Classic Edition 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset Alfine
  • Suspension Rigid
  • Drivetrain Internally Geared Hub
  • Brakes Shimano Alfine Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 170cm

  • MD

    168cm - 179cm

  • LG

    176cm - 187cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded

Suspension Fork

curved aluminium fork for disc brake mount

Drivetrain

Shift Levers

Shimano - Alfine 8-speed

Crank

Shimano – Alfine Hollowtech II

Bottom Bracket

BSA, Shimano – Alfine Hollowtech II

Pedals

Schindelhauer – Urban Pedal, aluminium, CNC machined

Wheels

Rims

Shutter Presision – PL-8 hub dynamo, SRAM – Shimano Alfine 8-speed, RYDE – RIVAL 26 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced

Tires

WTB - Horizon 47 - 584, with reflex stripes

Brakes

Brakes

Shimano - Alfine S7000 disc brake (hydraulic), 160mm

Cockpit

Stem

Schindelhauer

Handlebar

Schindelhauer - Jane, Aluminium

Grips

Schindelhauer – ergo leather grips

Headset

Tange Seiki - integrated, 1 1/8

Seat

Saddle

Brooks – B17

Seatpost

Schindelhauer

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLG
Stack Reach Ratio
1.504 mm1.396 mm1.442 mm
Stack
615 mm624 mm653 mm
Reach
409 mm447 mm453 mm
Top Tube Length
590 mm630 mm644 mm
Seat Tube Angle
73 °73 °73 °
Seat Tube Length
450 mm500 mm550 mm
Head Tube Angle
72.5 °72.5 °72.5 °
Head Tube Length
190 mm200 mm230 mm
Chainstay Length
438 mm438 mm438 mm
Wheelbase
1063 mm1104 mm1118 mm
Standover Height
808 mm836 mm873 mm
Wheels650650650
Rider Min Height158 cm168 cm176 cm
Rider Max Height170 cm179 cm187 cm
