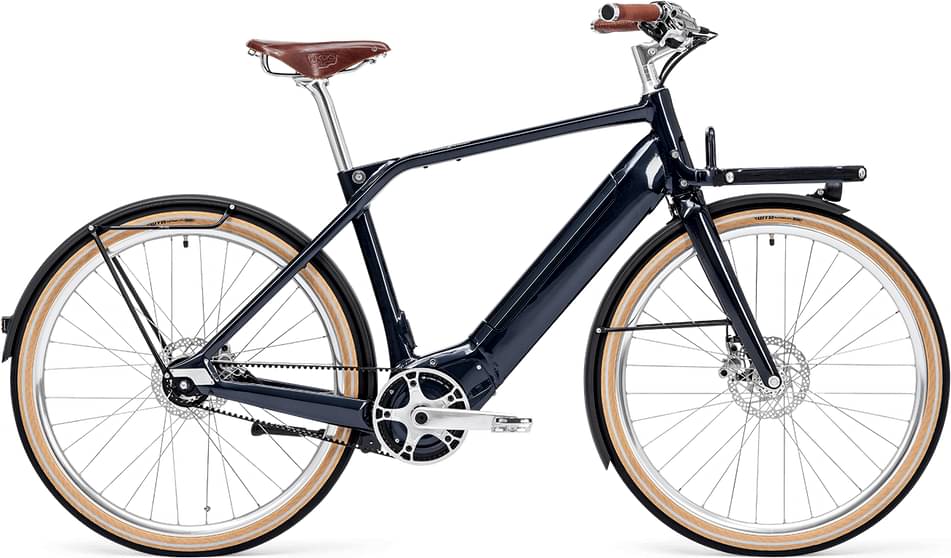

schindelhauer Heinrich VIII 2025
2025 E-bike
Weight | 23.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alfine -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch - Powertube 500, intube battery, energy: 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Formula Cura Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, 5-year warranty
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Shimano - Alfine 8-speed internal gear hub
Crank
Miranda - Delta
Bottom Bracket
-
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub disc, Shimano - Alfine 8-speed internal gear hub, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross and 2-cross laced
Tires
WTB - Horizon 47-584, with reflex stripes
Brakes
Brakes
Formula - CURA disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori - Stealth, aluminium
Handlebar
Satori - Noirette aluminium
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki integrated, tapered 1 1/8-1,5
Seat
Saddle
Brooks - B17
Seatpost
Schindelhauer
Motor & Battery
Motor
Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h
Battery
Bosch - Powertube 500, intube battery, energy: 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.507 mm | 1.372 mm | 1.389 mm |
| Stack | 609 mm | 609 mm | 628 mm |
| Reach | 404 mm | 444 mm | 452 mm |
| Top Tube Length | 590 mm | 630 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 200 mm | 200 mm | 220 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1067 mm | 1107 mm | 1122 mm |
| Standover Height | 784 mm | 807 mm | 840 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
