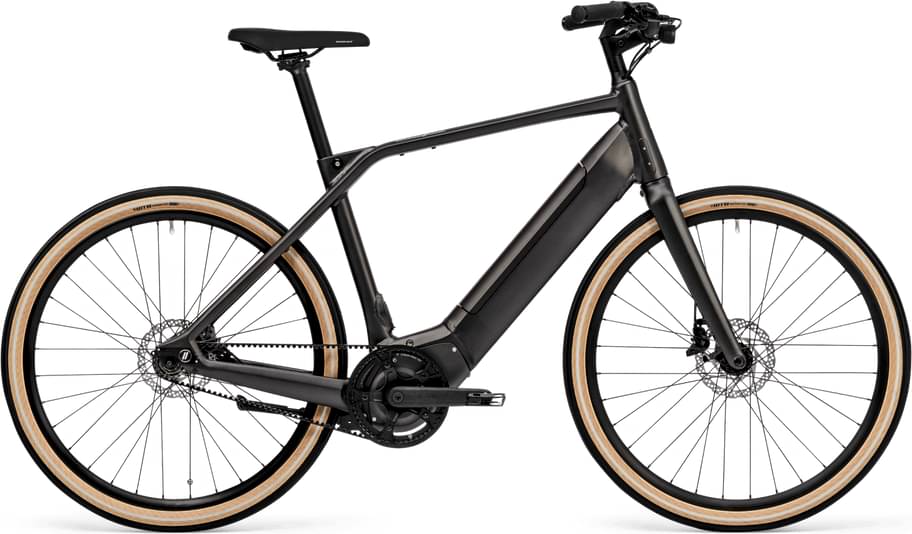

schindelhauer Heinrich XIV 2025
2025 E-bike
Weight | 23.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch – Powertube 500, intube battery, energy: 500 Wh -
Brakes Shimano Alfine Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Rohloff - Speedhub 14-speed internal gear hub with Rohloff E-14 - shifting system (eShift)
Crank
Miranda – Delta
Pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer – high flange front hub disc, Schindelhauer – rear hub disc, Alexrims – EXR25 rims with eyelets, Sapim – Race spokes, 3-cross laced
Tires
WTB – Horizon 47-584, with reflex stripes
Brakes
Brakes
Shimano - Alfine S7000 disc brake (hydraulic), 160mm
Cockpit
Stem
Satori – Stealth, aluminium
Handlebar
Satori – Noirette, aluminium
Grips
Schindelhauer (bolt-on)
Headset
Acros - ICR 1,5''
Seat
Saddle
Selle Royal - Essenza
Seatpost
LightSKIN – seat post integrated LED-rear-light
Motor & Battery
Motor
Bosch – Performance Line (BES2), power: 250 W, torque: 65 Nm, max. support up to 25 km/h
Battery
Bosch – Powertube 500, intube battery, energy: 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.507 mm | 1.372 mm | 1.389 mm |
| Stack | 609 mm | 609 mm | 628 mm |
| Reach | 404 mm | 444 mm | 452 mm |
| Top Tube Length | 590 mm | 630 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 200 mm | 200 mm | 220 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1067 mm | 1107 mm | 1122 mm |
| Standover Height | 784 mm | 807 mm | 840 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
