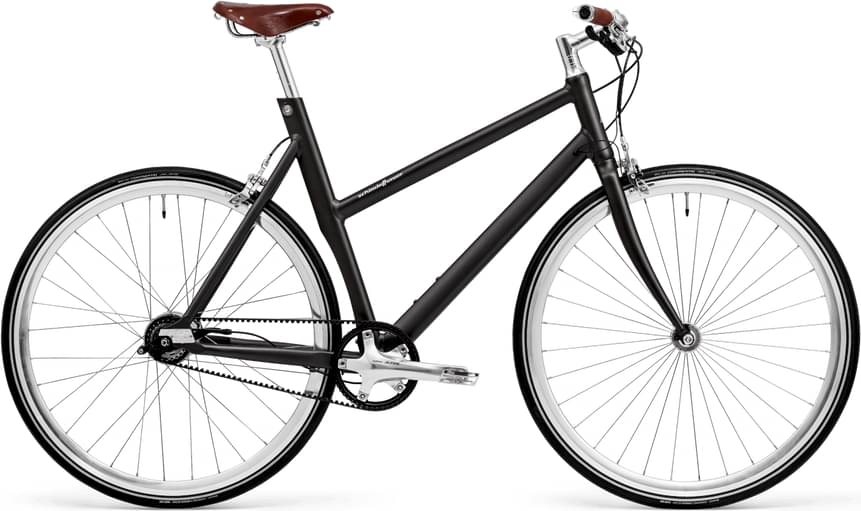

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, internal cable routing, smooth welded
Suspension Fork
Curved aluminium fork
Drivetrain
Shift Levers
Shimano - Alfine 8-speed internal gear hub
Crank
Shimano - Alfine Hollowtech II
Bottom Bracket
BSA, Shimano - Alfine Hollowtech II
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub / Shutter Presision – PL-8 hub dynamo (Graphite Black Edition), Shimano - Alfine 8-/11-speed internal gear hub, Alexrims - CX30 rims, Sapim - Race spokes, radial and 2-cross laced
Tires
Continental – Contact Urban with reflective stripes 28-622
Brakes
Brakes
Tektro - R539, Tektro - FL750
Cockpit
Stem
Schindelhauer
Handlebar
Schindelhauer - aluminium moon bar / LightSKIN LED (Graphite Black Edition)
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki - integrated
Seat
Saddle
Brooks - B17 S Lady
Seatpost
Schindelhauer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.393 mm | 1.408 mm |
| Stack | 554 mm | 564 mm | 573 mm |
| Reach | 397 mm | 405 mm | 407 mm |
| Top Tube Length | 560 mm | 570 mm | 580 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 155 mm | 165 mm | 175 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1014 mm | 1024 mm | 1029 mm |
| Standover Height | 703 mm | 717 mm | 730 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
