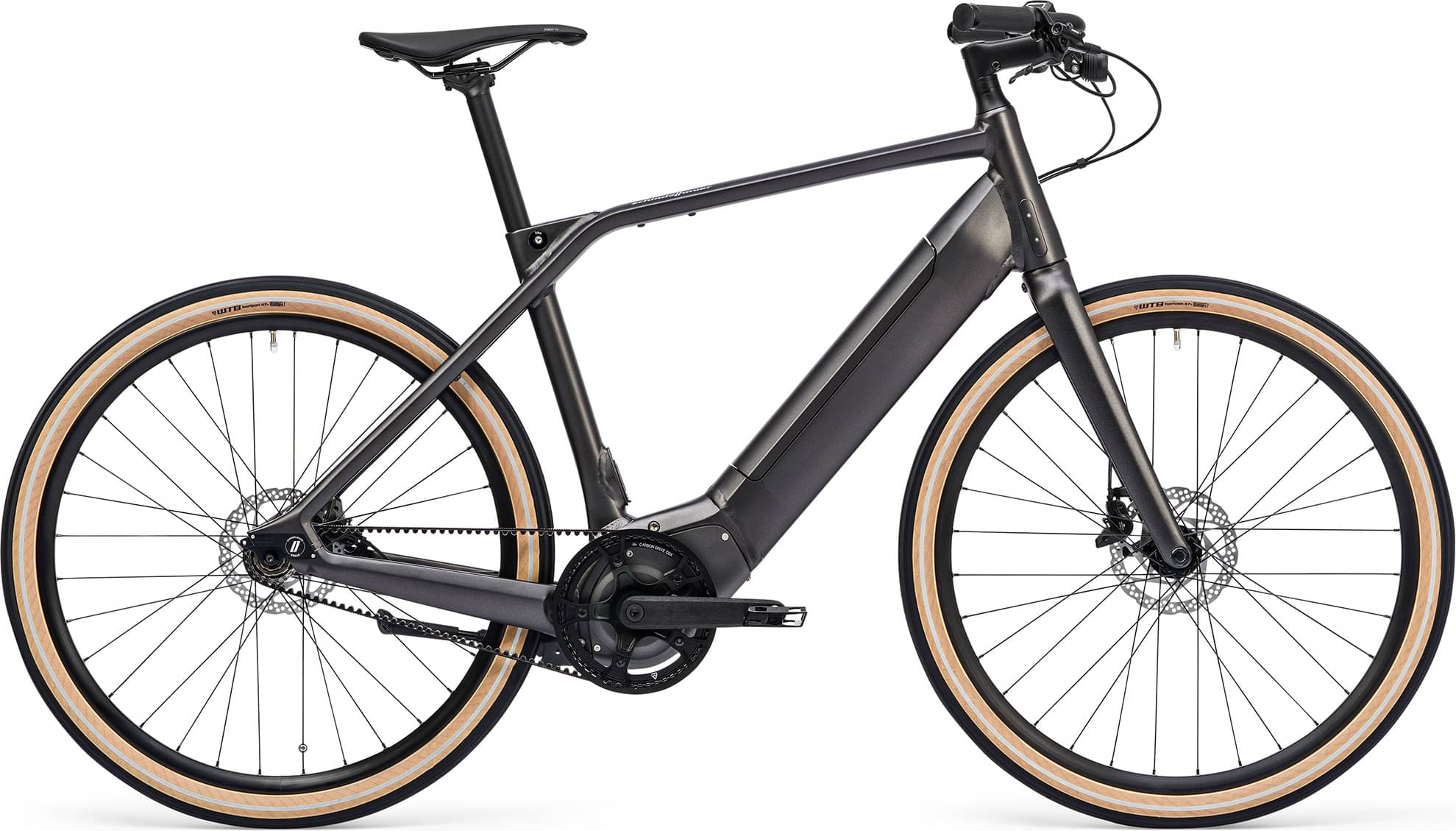

schindelhauer Oskar 2022
2022 E-bike
Estimate price |
5,113$
Weight | 19.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch - Powertube 500, intube battery, energy: 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
168cm - 178cm
MD
176cm - 187cm
LG
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, 5-year warranty
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
-
Crank
Miranda - Delta
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub disc, Schindelhauer - rear hub disc, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross laced
Tires
WTB - Horizon 47-584, with reflex stripes
Brakes
Brakes
Formula - CURA disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori - Stealth, aluminium
Handlebar
Satori - Noirette aluminium
Grips
Schindelhauer (bolt-on)
Headset
Tange Seiki integrated, tapered 1 1/8-1,5
Seat
Saddle
FABRIC - Scoop Shallow Sport
Seatpost
LightSKIN - seat post integrated LED-rear-light
Motor & Battery
Motor
Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h Bosch - Performance Line (Cruise), power: 250 W, torque: 65 Nm, max. support up to 25 km/h
Battery
Bosch - Powertube 500, intube battery, energy: 500 Wh
Remote
Bosch - Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.507 mm | 1.372 mm | 1.389 mm |
| Stack | 609 mm | 609 mm | 628 mm |
| Reach | 404 mm | 444 mm | 452 mm |
| Top Tube Length | 590 mm | 630 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 200 mm | 200 mm | 220 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1067 mm | 1107 mm | 1122 mm |
| Standover Height | 784 mm | 807 mm | 840 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 168 cm | 176 cm | 185 cm |
| Rider Max Height | 178 cm | 187 cm | 200 cm |
About this model
Oskar is a Schindelhauer E Oskar model. Schindelhauer released 2 e-bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Schindelhauer Oskar price was 4667$. Doing a quick comparison, we notice that Oskar price is 81.67% higher than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 19.7 kg (43.43 lbs), the Oskar model is much lighter than average. In short, the average Commuter e-bike weight is 27.92% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Oskar components
Fork material
Oskar has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Schindelhauer Oskar 2022, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Oskar comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 168 cm – 200 cm (5.51 ft – 6.56 ft). In short, you can easily find one that suits you.
