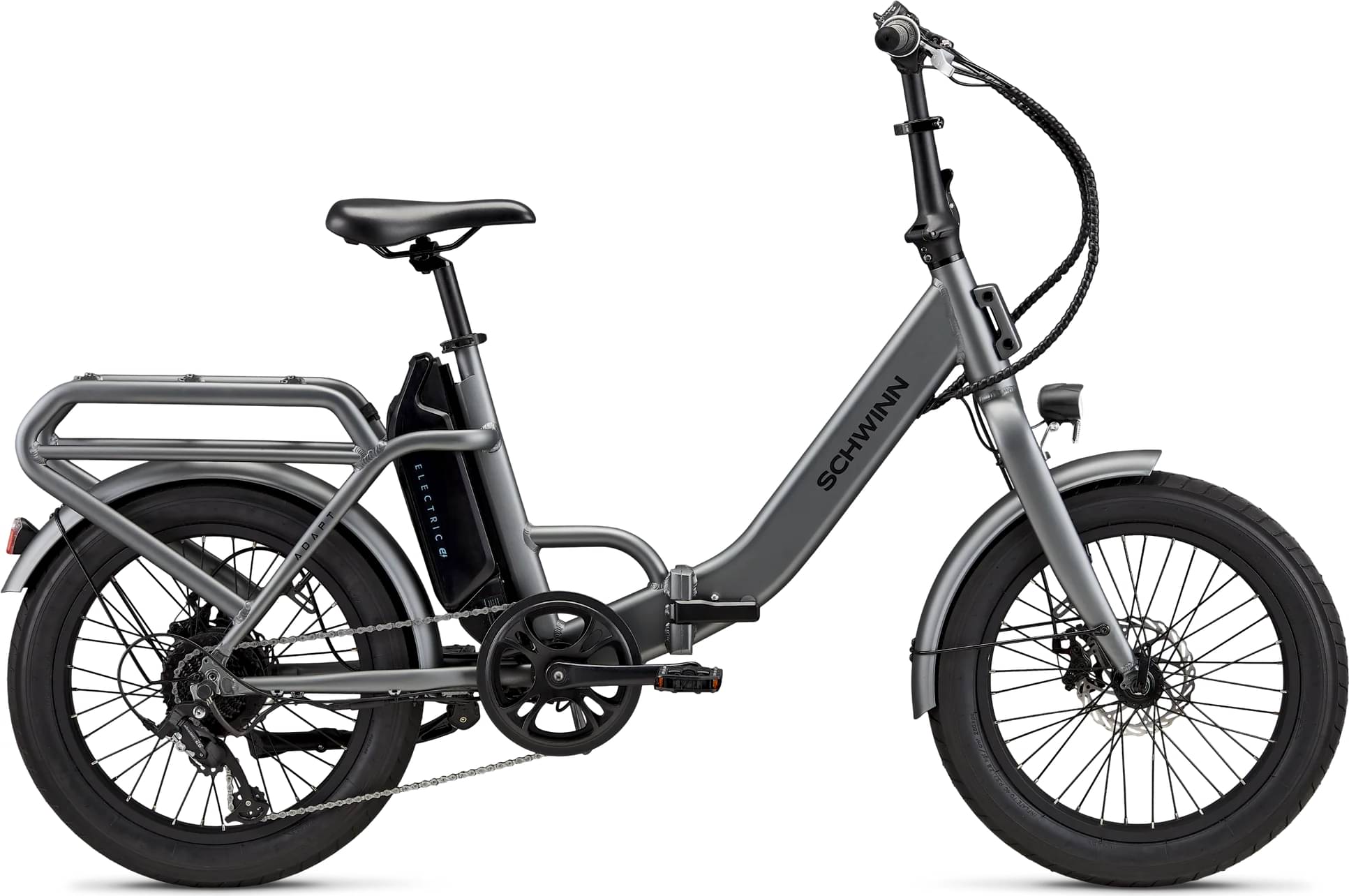

Schwinn Adapt Folding Electric Bike 2024
2024 E-bike
Estimate price |
1,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT M26 -
Suspension Rigid -
Motor hub-drive -
Battery 374.4Wh lithium-ion battery -
Drivetrain 1 × 7 -
Brakes JAK Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, replaceable hanger, 1 1/8 in headtube
Suspension Fork
20", Hi-Ten steel, QR
Drivetrain

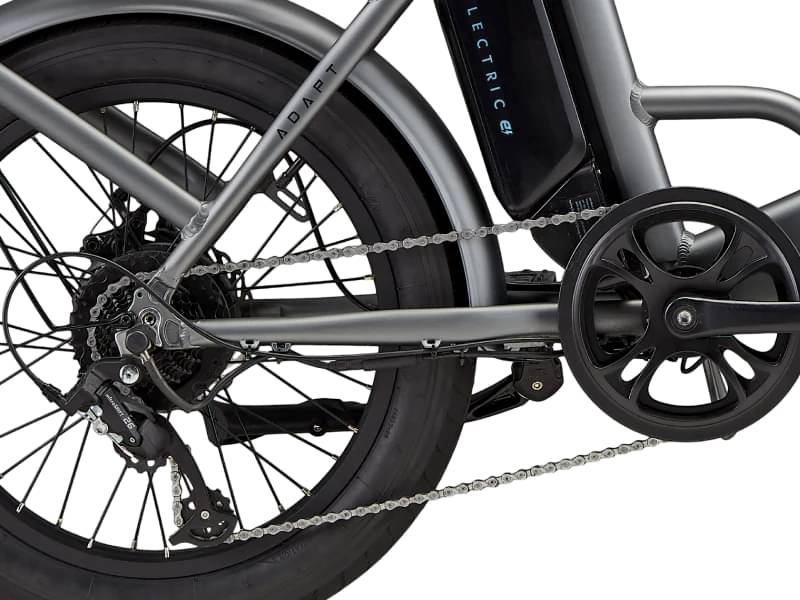

Rear Derailleur
Microshift RD-M26
Shift Levers
7-speed Microshift
Crank
Prowheel, aluminum, 48T
Bottom Bracket
Square taper, 68 mm
Chain
KMC
Pedals
Steel / resin, reflector
Wheels
Rear Hub
Aluminum, 36H, 6-bolt
Rims
Aluminum, double wall, 36H, non tubeless
Spokes
13G, stainless steel
Tires
20 in x 3.0 in, wire bead
Brakes
Brakes

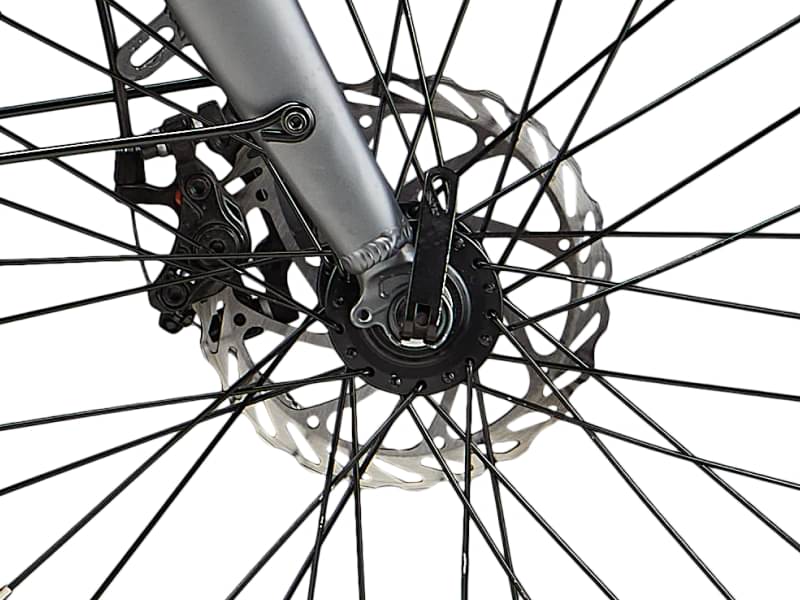

JAK, cable actuated disc, aluminum, 160 mm
Cockpit
Stem
Aluminum, 25.4 mm clamp
Handlebar
Aluminum, 620 mm width
Grips
Kraton
Headset
Threadless, ball bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Aluminum, 350 mm, 27.2 mm
Motor & Battery
Motor
250-watt hub drive motor
Battery
374.4Wh lithium-ion battery
Remote

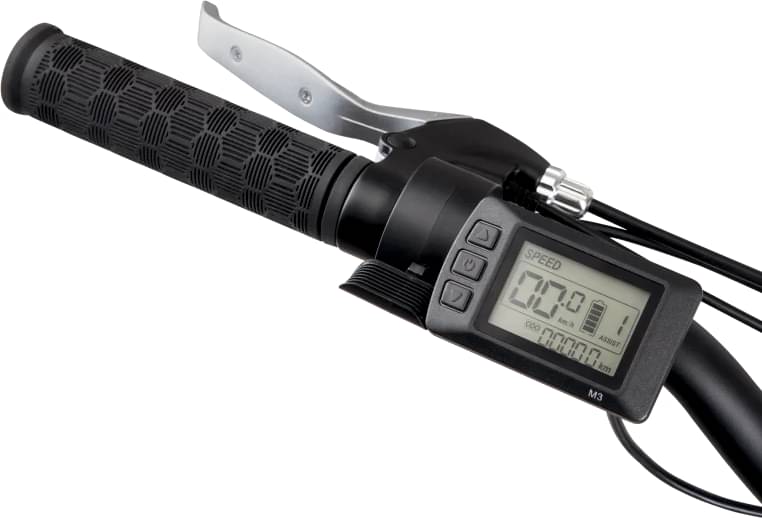

Multi-function LCD controller
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.032 mm |
| Front Center | 748 mm |
| Rake | 35 mm |
| Stack | 527.7 mm |
| Reach | 511.1 mm |
| Top Tube Length | 677.7 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 450 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 160 mm |
| Chainstay Length | 455 mm |
| Wheelbase | 1202 mm |
| Bottom Bracket Drop | -22 mm |
| Standover Height | 490 mm |
| Wheels | 20" |
| Rider Min Height | 120 cm |
