Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 18", rigid, mountain

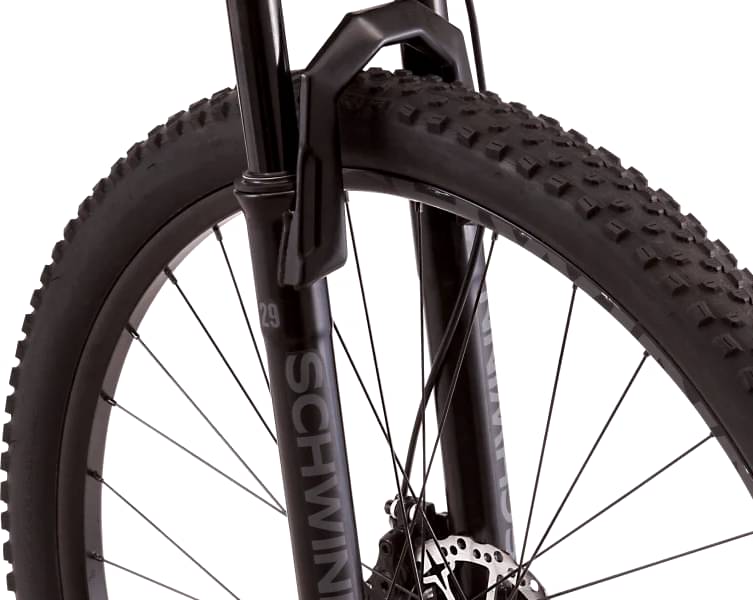

Suspension Fork
Alloy/steel, suspension
Drivetrain
Rear Derailleur
L-Twoo

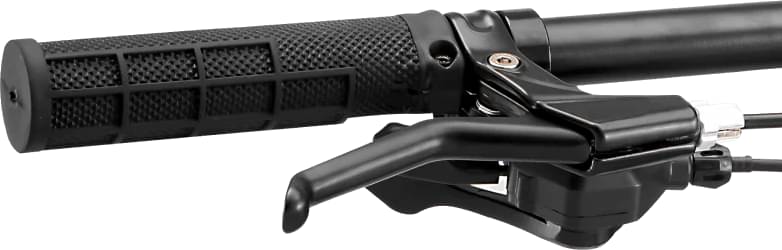

Shift Levers
Trigger shifter
Crank
30T
Bottom Bracket
73 mm
Chain
KMC Z8.1
Pedals
Resin platform
Wheels
Rear Hub
Steel, ball bearing, 32H
Rims
Aluminum, double wall, 26 mm ID, 32H
Spokes
14G
Tires
29" x 2.25", wire bead
Brakes
Brakes

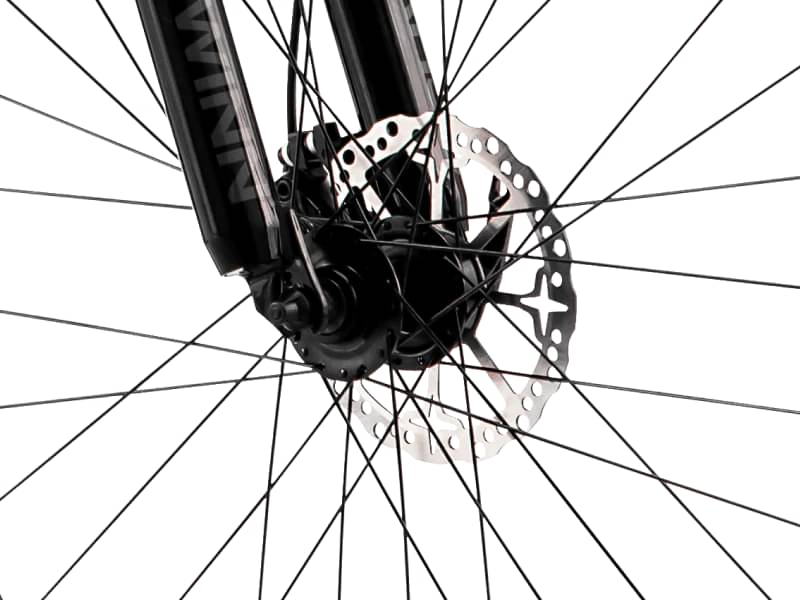

JAK 7, mechanical disc, 160 mm rotor
Cockpit

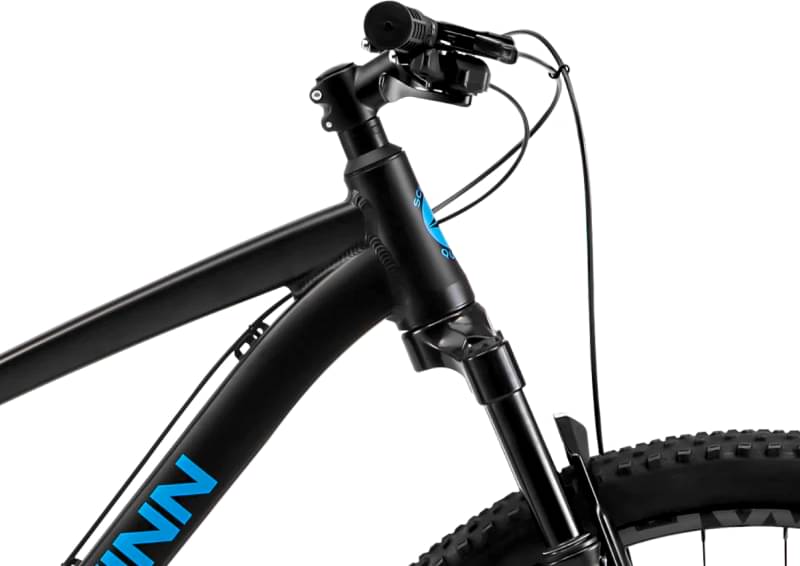

Stem
Threadless, aluminum
Handlebar
Aluminum, 750 mm width, 15 mm rise, 31.8 mm clamp
Grips
Schwinn mountain Kraton, single density
Headset
Alloy, threadless
Seat
Saddle
Vinyl, mountain
Seatpost
Aluminum, 350 mm, 31.6 mm
Fit data
Geometry
