Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes JAK Y2 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

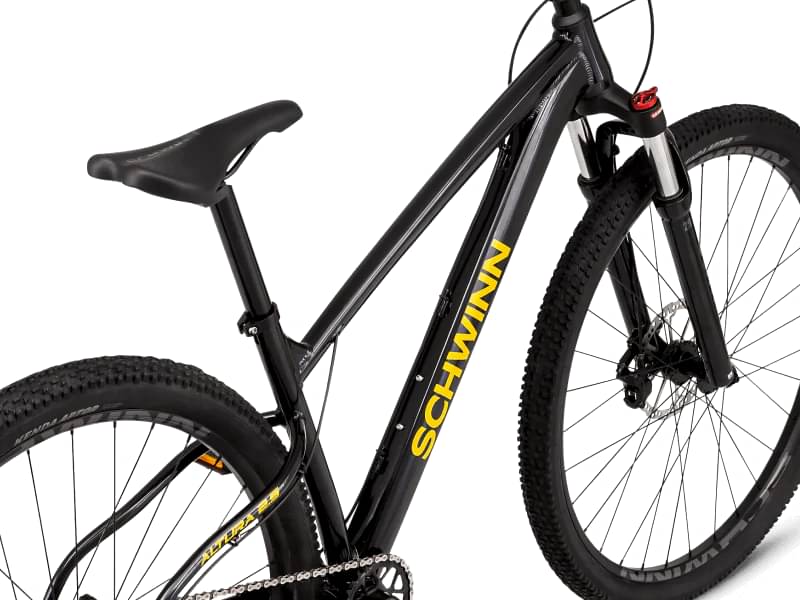

Frame
Frame
Aluminum, 18", rigid, mountain

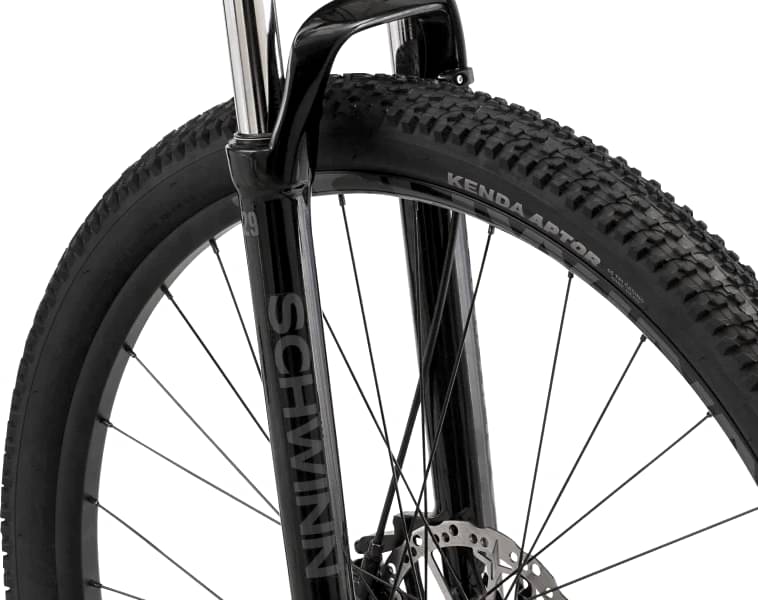

Suspension Fork
Alloy/steel, suspension
Drivetrain
Rear Derailleur
Microshift Advent

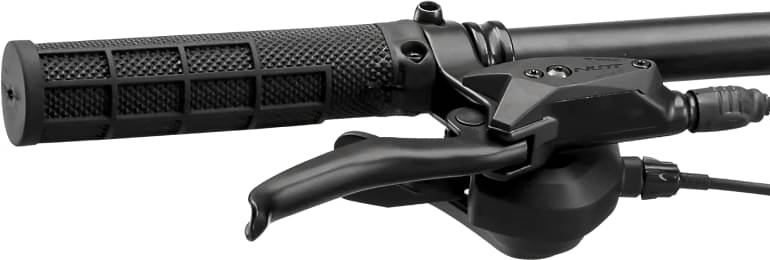

Shift Levers
Trigger shifter
Crank
30T
Bottom Bracket
73 mm
Chain
KMC X9
Pedals
Resin platform
Wheels
Rear Hub
Aluminum, ball bearing, 32H
Rims
Alloy double wall, aluminum
Spokes
14G
Tires
29 in x 2.35 in, wire bead
Brakes
Brakes

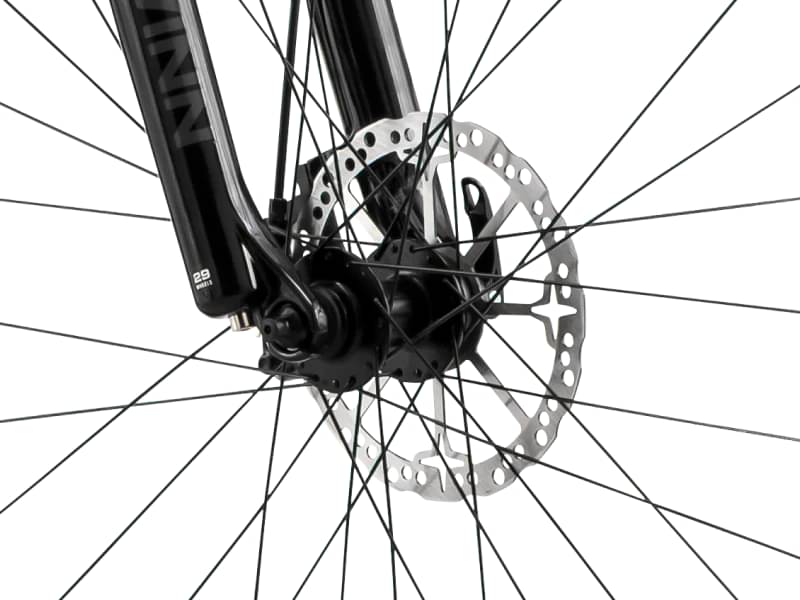

JAK Y2, hydraulic disc, 180 mm front, 160 mm rear rotor
Cockpit

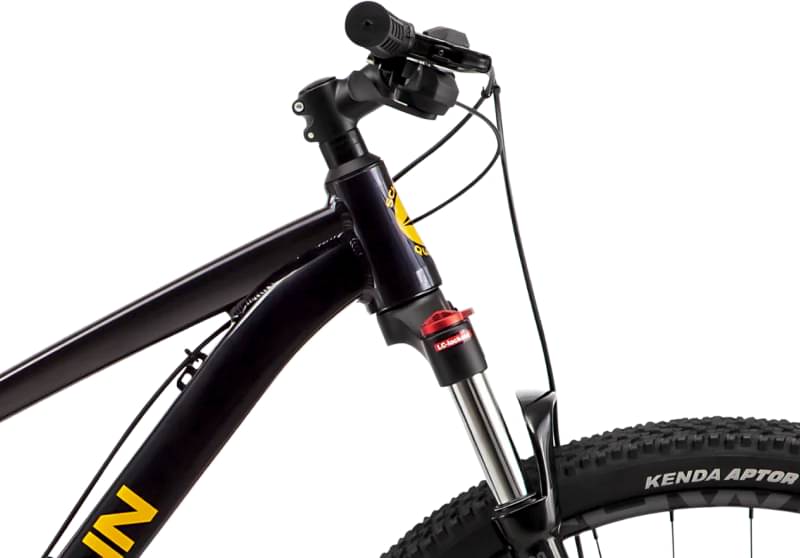

Stem
Threadless, aluminum
Handlebar
Schwinn, aluminum, 750 mm width, 15 mm rise, 31.8 mm clamp
Headset
Alloy, threadless
Seat
Saddle
Vinyl, mountain
Seatpost
Aluminum, 350 mm, 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Bottom Bracket Height | 316 mm | 316 mm |
| Front Center | 720 mm | 738 mm |
| Rake | 35 mm | 35 mm |
| Top Tube Length | 615 mm | 630 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 415 mm | 450 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 115 mm |
| Chainstay Length | 425 mm | 425 mm |
| Wheelbase | 1138 mm | 1156 mm |
| Bottom Bracket Drop | 58 mm | 58 mm |
| Standover Height | 723 mm | 753 mm |
| Wheels | 29" | 29" |
