Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Groupset microSHIFT -
Suspension Hardtail -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
12" rigid aluminum mountain frame

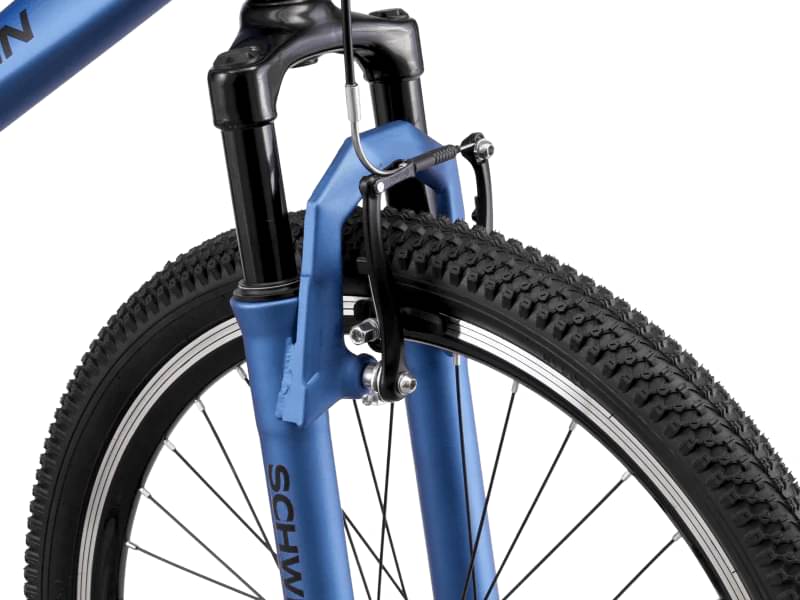

Suspension Fork
24", steel steerer, 100 mm, QR axle
Drivetrain

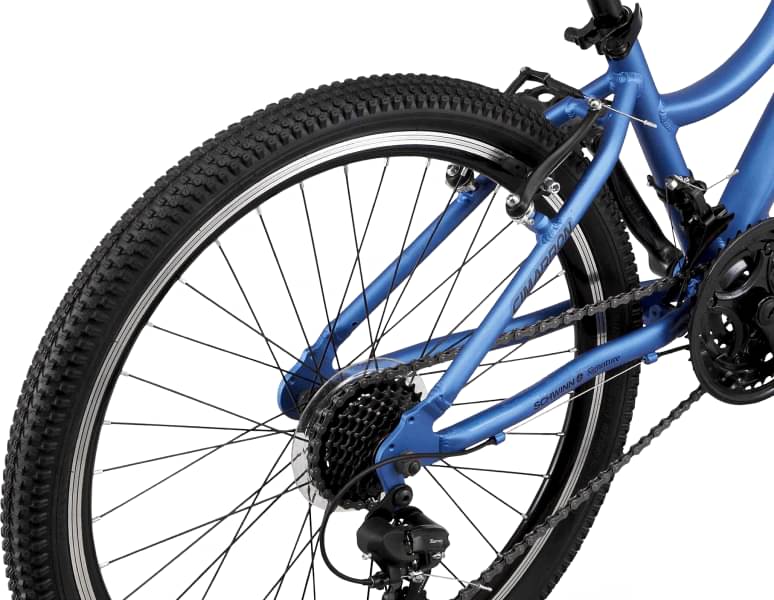

Rear Derailleur
Microshift

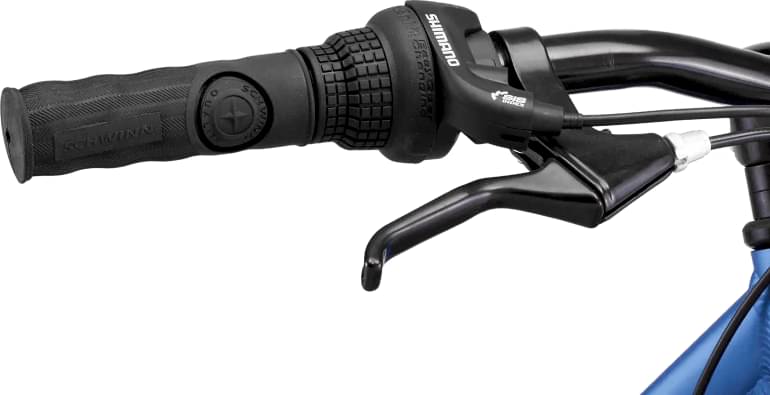

Shift Levers
Microshift, 21-speed
Crank
Prowheel, aluminum, 42/34/24T
Bottom Bracket
Loose ball bearing, square taper, 68 mm
Chain
KMC
Pedals
Resin platform w/ reflector
Wheels
Rear Hub
Steel, ball bearing, 135 mm bolt-on, 36H
Rims
Aluminum, 36H, non tubeless
Spokes
14G, steel
Tires
20 in x 1.95 in, wire bead
Brakes
Brakes
Linear pull, aluminum
Cockpit
Stem
Aluminum, threadless, 60 mm, 7? 25.4 mm clamp
Handlebar
Steel, 620 mm width, 20 mm rise, 25.4 mm clamp
Grips
Schwinn, Kraton
Headset
Threadless, 1-1/8" external, ball bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 300 mm, 27.2 mm
Fit data
Geometry
