Bike details
Overview
Key information split into simple groups.

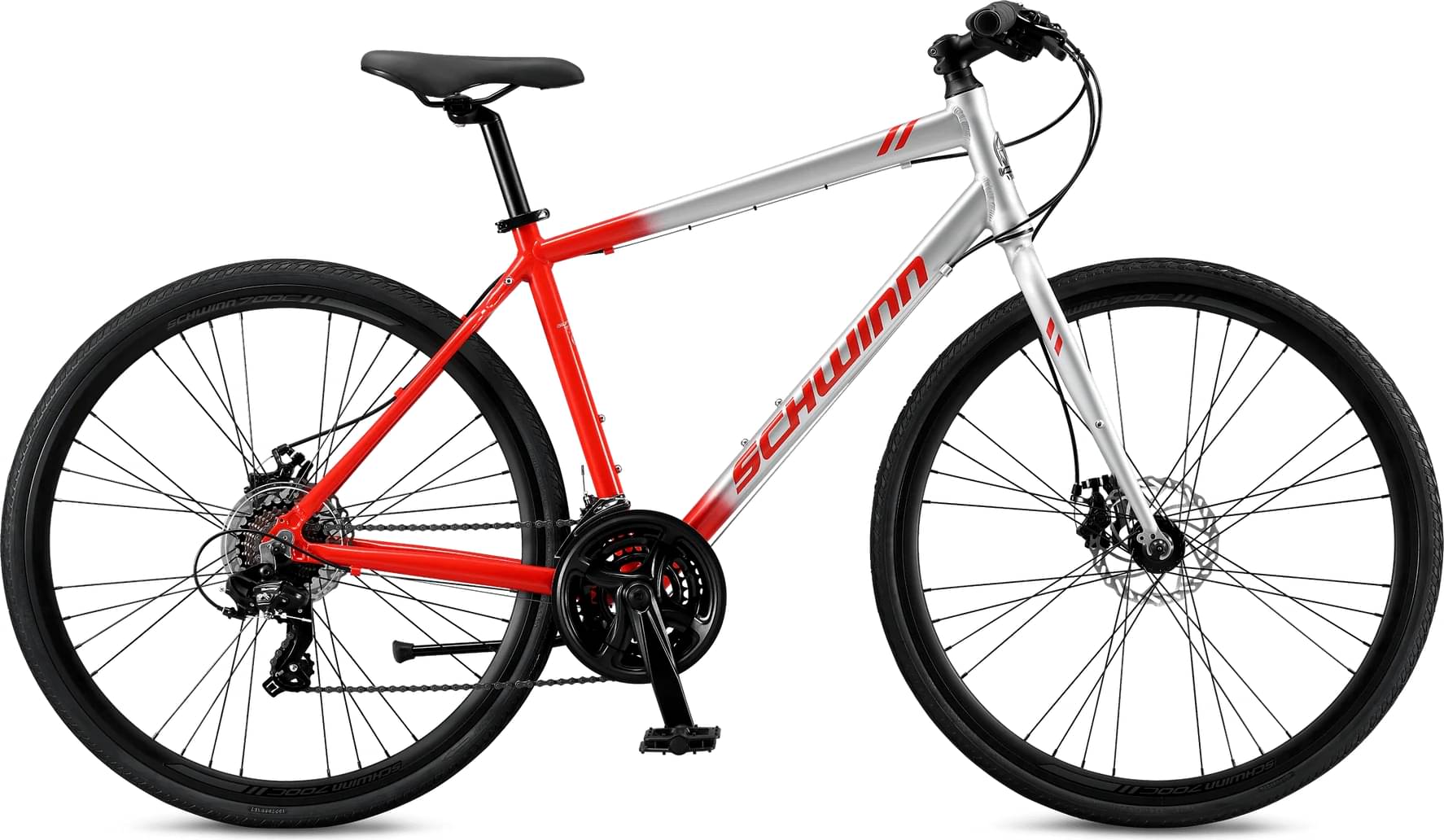

Bike summary
-
-
Frame Aluminum -
Groupset Shimano -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 18.5", hybrid

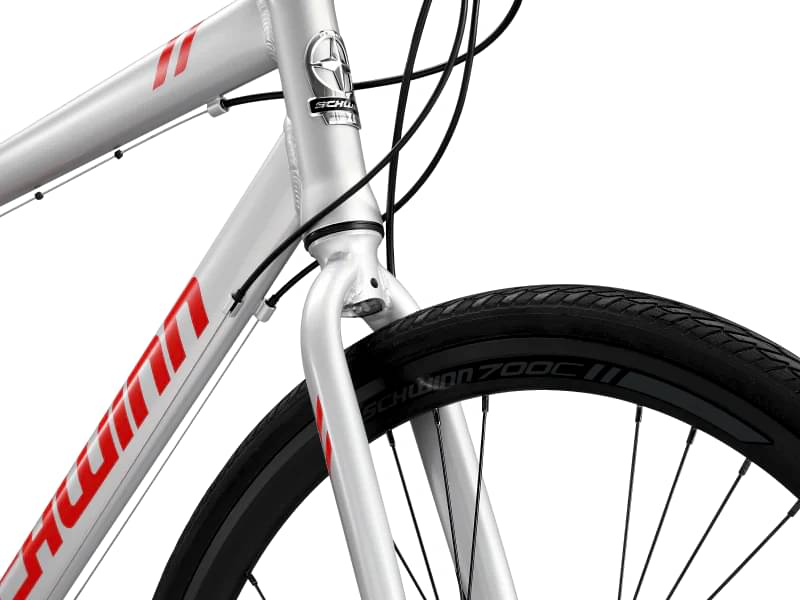

Suspension Fork
Steel, rigid
Drivetrain

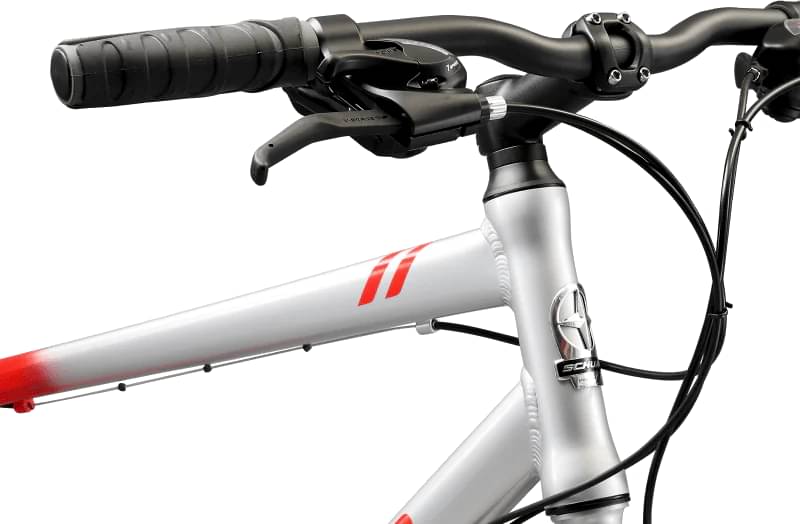

Shift Levers
Shimano, EZ-Fire trigger shifter
Pedals
Resin platform with reflector
Wheels
Rims
High profile double wall, aluminum
Brakes

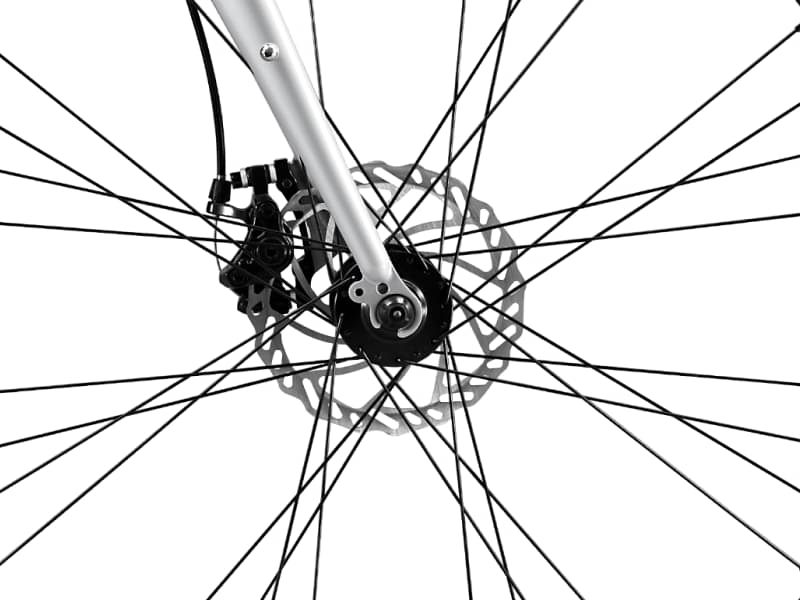

Brakes
Mechanical disc brakes
Cockpit
Stem
Threadless, aluminum
Headset
Steel, threadless
Seat

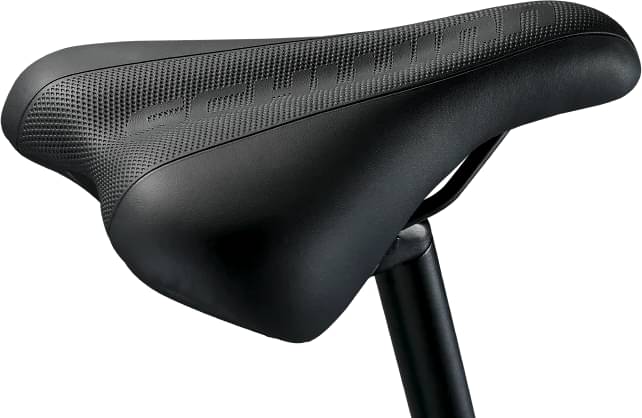

Saddle
Vinyl
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 28" |
|---|---|
| Stack Reach Ratio | 1.508 mm |
| Front Center | 638 mm |
| Rake | 45 mm |
| Trail | 73 mm |
| Stack | 603.9 mm |
| Reach | 400.4 mm |
| Top Tube Length | 585 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 480 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 180 mm |
| Chainstay Length | 435 mm |
| Wheelbase | 1065 mm |
| Bottom Bracket Drop | 60 mm |
| Standover Height | 773 mm |
| Wheels | 700 |
| Rider Min Height | 120 cm |
