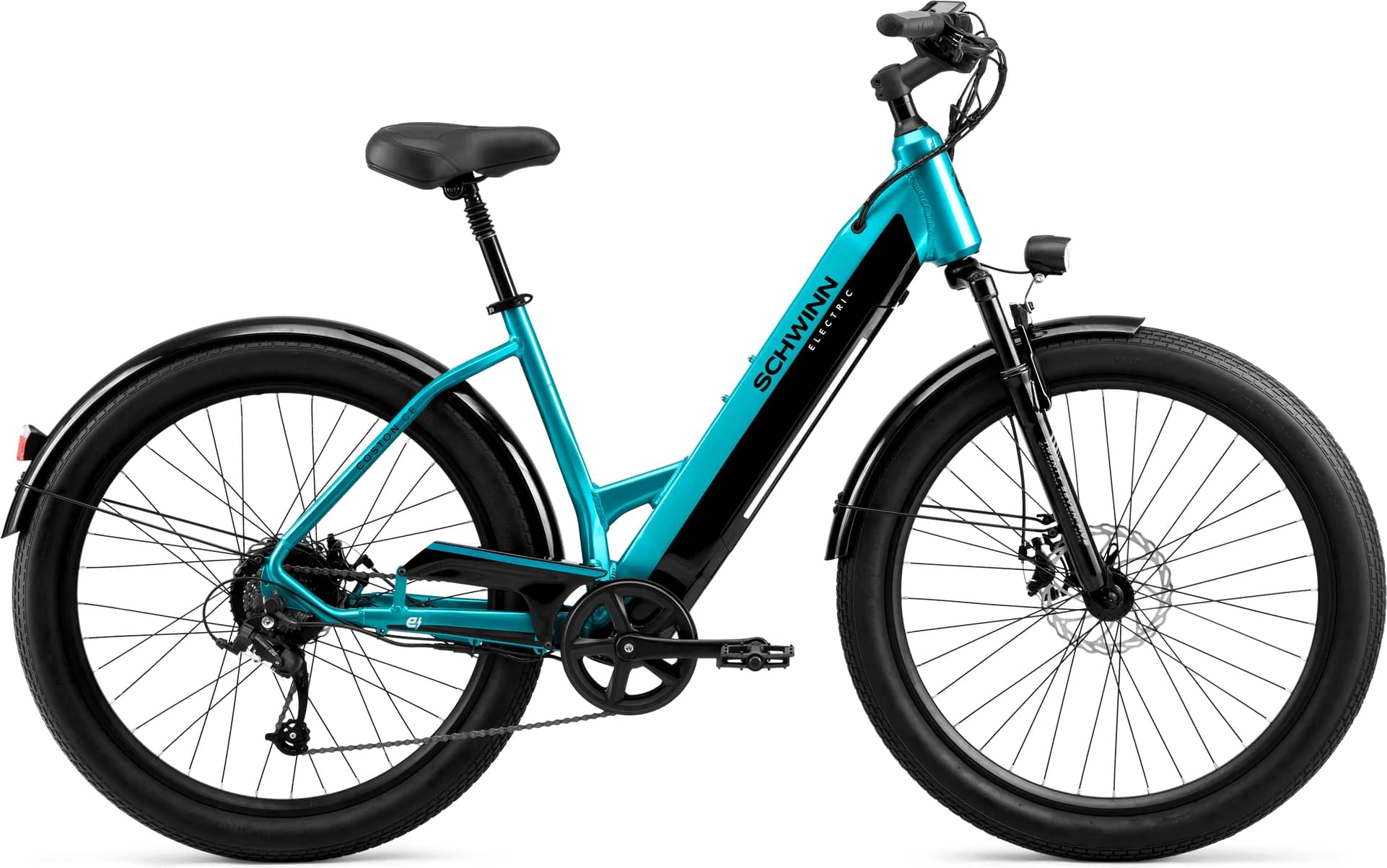

Schwinn Coston CE Step-Thru Electric Bike 2024
2024 E-bike
Estimate price |
1,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Groupset microSHIFT -
Suspension Hardtail -
Motor hub-drive -
Battery 288 watt-hour internal downtube battery -
Brakes JAK Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
27.5” Steel suspension with 63mm of travel Q/R
Drivetrain
Rear Derailleur
Microshift
Front Derailleur
Microshift, 7
Crank
Aluminum 170 mm, 42T
Bottom Bracket
Cartridge, square taper, 68 mm
Chain
KMC
Pedals
Steel / resin, reflector
Wheels
Rear Hub
Aluminum, ball bearing, 36H, 6-bolt
Rims
Aluminum, double wall, 24 mm ID, 36H, non tubeless
Spokes
14G/13G, stainless steel, black
Tires
27.5 in x 2.6 in, wire bead
Brakes
Brakes
JAK 7, mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threadless front load, 90 mm, 10° rise, 31.8 mm clamp
Handlebar
Aluminum, 650 mm width, 30 mm rise, 31.8 mm clamp
Grips
Schwinn, Kraton
Headset
Threadless, retainer bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 350 mm, 27.2 mm
Motor & Battery
Motor
250-watt brushless geared hub drive motor
Battery
288 watt-hour internal downtube battery
Remote
7 function LCD controller
Fit data
Geometry
