Schwinn Coston DX Electric Bike 2024
2024 E-bike
Estimate price |
2,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT -
Suspension Rigid -
Motor hub-drive -
Battery 360 watt-hour internal downtube battery -
Drivetrain 1 × 7 -
Brakes JAK Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
27.5” Alloy rigid Q/R
Drivetrain
Rear Derailleur
7-speed, 14-34T
Shift Levers
Microshift, 7
Crank
Aluminum 170 mm, 42T
Bottom Bracket
Cartridge, square taper, 68 mm
Chain
KMC
Pedals
Nylon, reflector
Wheels
Rear Hub
Aluminum, ball bearing, 135 mm bolt-on, 36H, 6-bolt
Rims
Aluminum, aluminum double wall, 24 mm ID, 36H, non tubeless
Spokes
14G/13G, stainless steel, black
Tires
27.5 in x 2.6 in, wire bead
Brakes
Brakes
JAK 7, mechanical disc, aluminum, 160 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threadless front load, 90 mm, 10° rise, 31.8 mm clamp
Handlebar
Schwinn, aluminum, 740 mm width, 95 mm rise, 31.8 mm clamp
Grips
Schwinn, semi-ergo
Headset
Threadless, retainer bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Aluminum, 350 mm, 20 mm offset, 30.4 mm
Motor & Battery
Motor
250-watt brushless geared hub drive motor
Battery

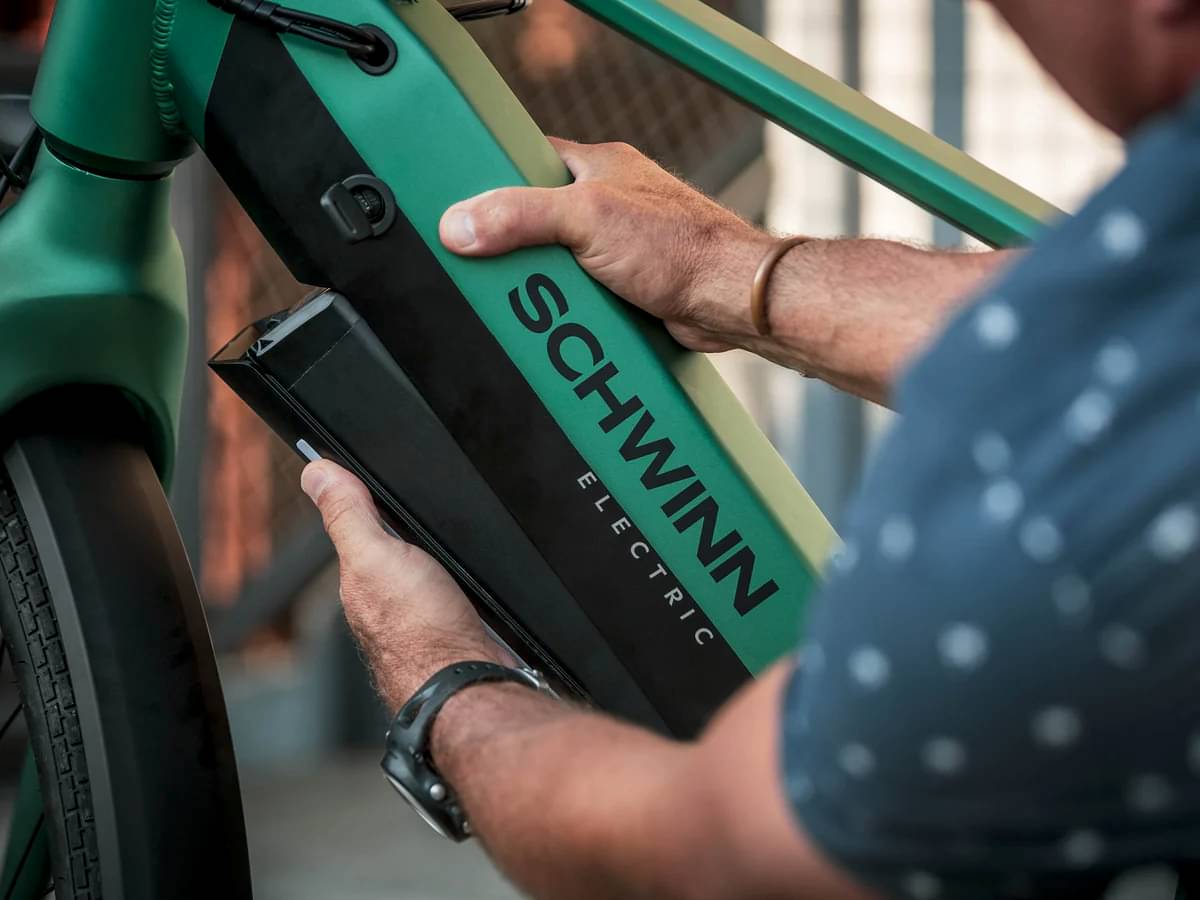

360 watt-hour internal downtube battery
Remote
7 function LCD controller
Fit data
Geometry
