Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT -
Suspension Hardtail -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 18", rigid, hybrid
Suspension Fork
Schwinn, steel, suspension
Drivetrain

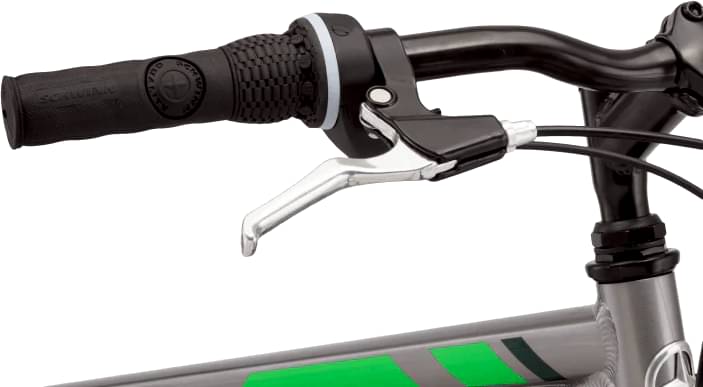

Shift Levers
Microshift, twist shifter
Pedals
Resin platform with reflector
Wheels
Rims
Alloy double wall, alloy

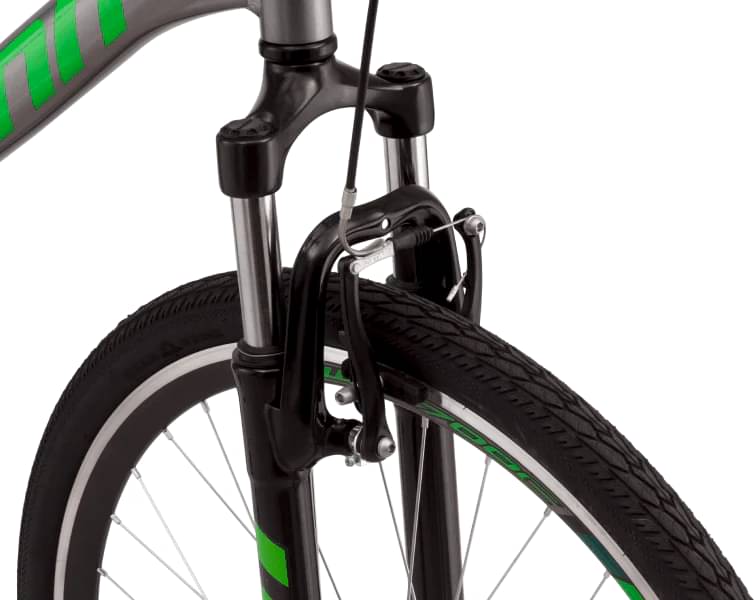

Brakes
Brakes
Linear pull brakes
Cockpit
Stem
Quill, aluminum
Headset
Steel, threaded
Seat
Saddle
Schwinn, vinyl, sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 29" |
|---|---|
| Stack Reach Ratio | 1.568 mm |
| Front Center | 645 mm |
| Rake | 40 mm |
| Trail | 75 mm |
| Stack | 624 mm |
| Reach | 398 mm |
| Top Tube Length | 592.1 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 457 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 130 mm |
| Chainstay Length | 450 mm |
| Wheelbase | 1090 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 836 mm |
| Wheels | 29" |
| Rider Min Height | 120 cm |
