Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Shimano -
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 18", rigid, dual sport

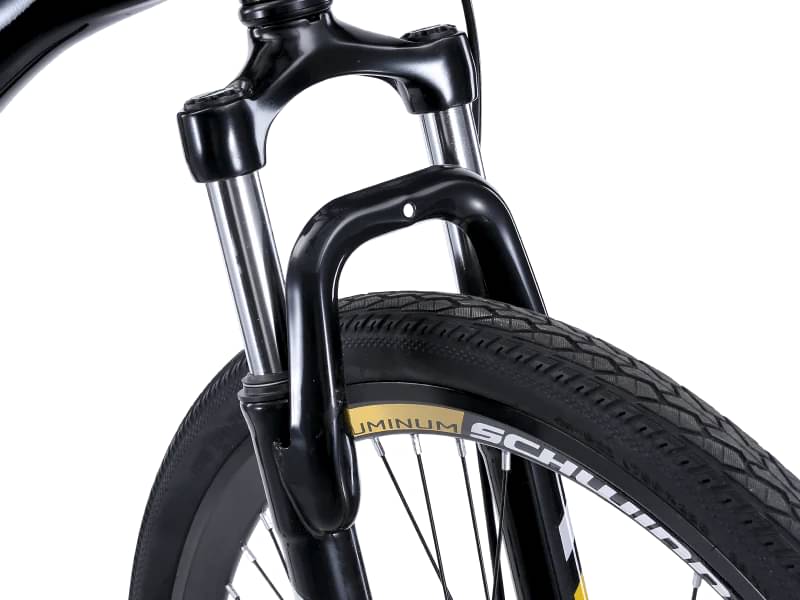

Suspension Fork
Schwinn, suspension

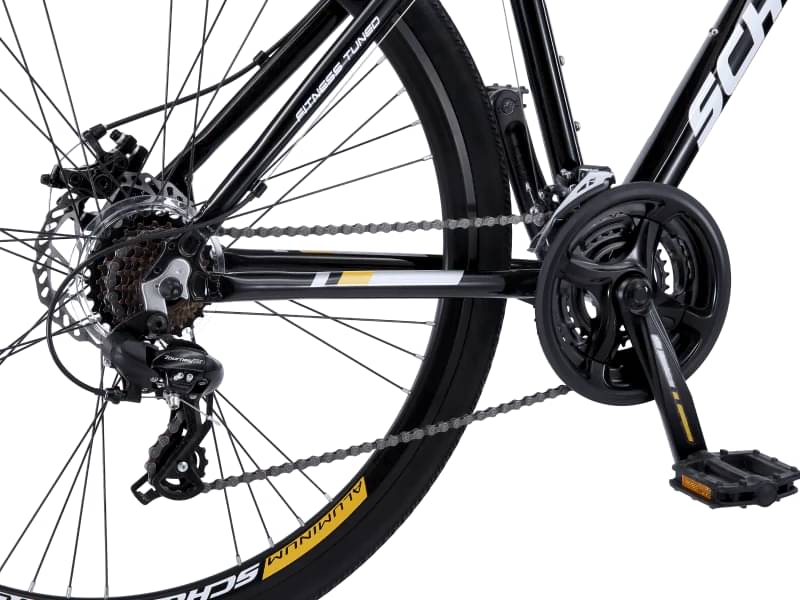

Drivetrain
Shift Levers
Shimano, EZ-Fire trigger shifter
Pedals
Plastic platform
Wheels
Rims
Alloy

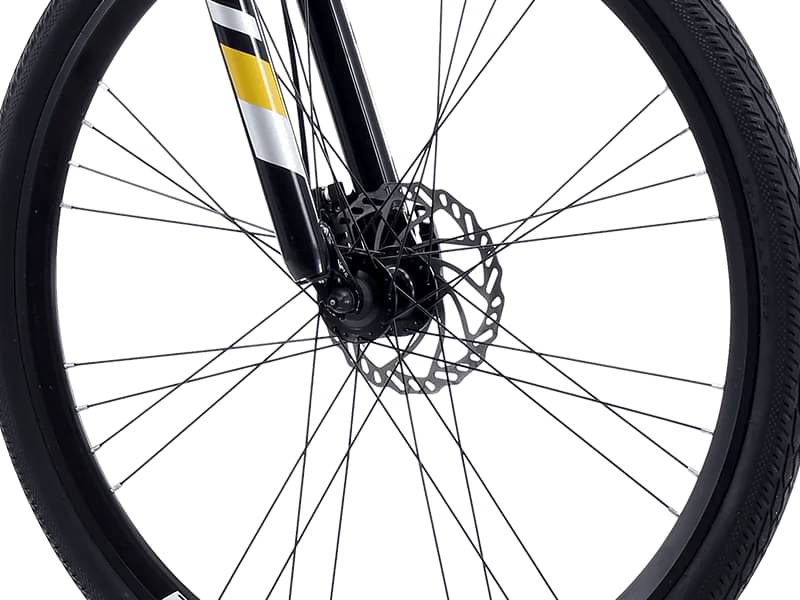

Brakes
Brakes
Mechanical Disc
Cockpit
Stem
Threadless, alloy
Headset
Threadless
Seat
Saddle
Sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 29" |
|---|---|
| Stack Reach Ratio | 1.525 mm |
| Front Center | 645 mm |
| Rake | 33 mm |
| Trail | 75 mm |
| Stack | 612.9 mm |
| Reach | 402 mm |
| Top Tube Length | 589.4 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 457 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 130 mm |
| Chainstay Length | 450 mm |
| Wheelbase | 1090 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 789 mm |
| Wheels | 29" |
| Rider Min Height | 120 cm |
