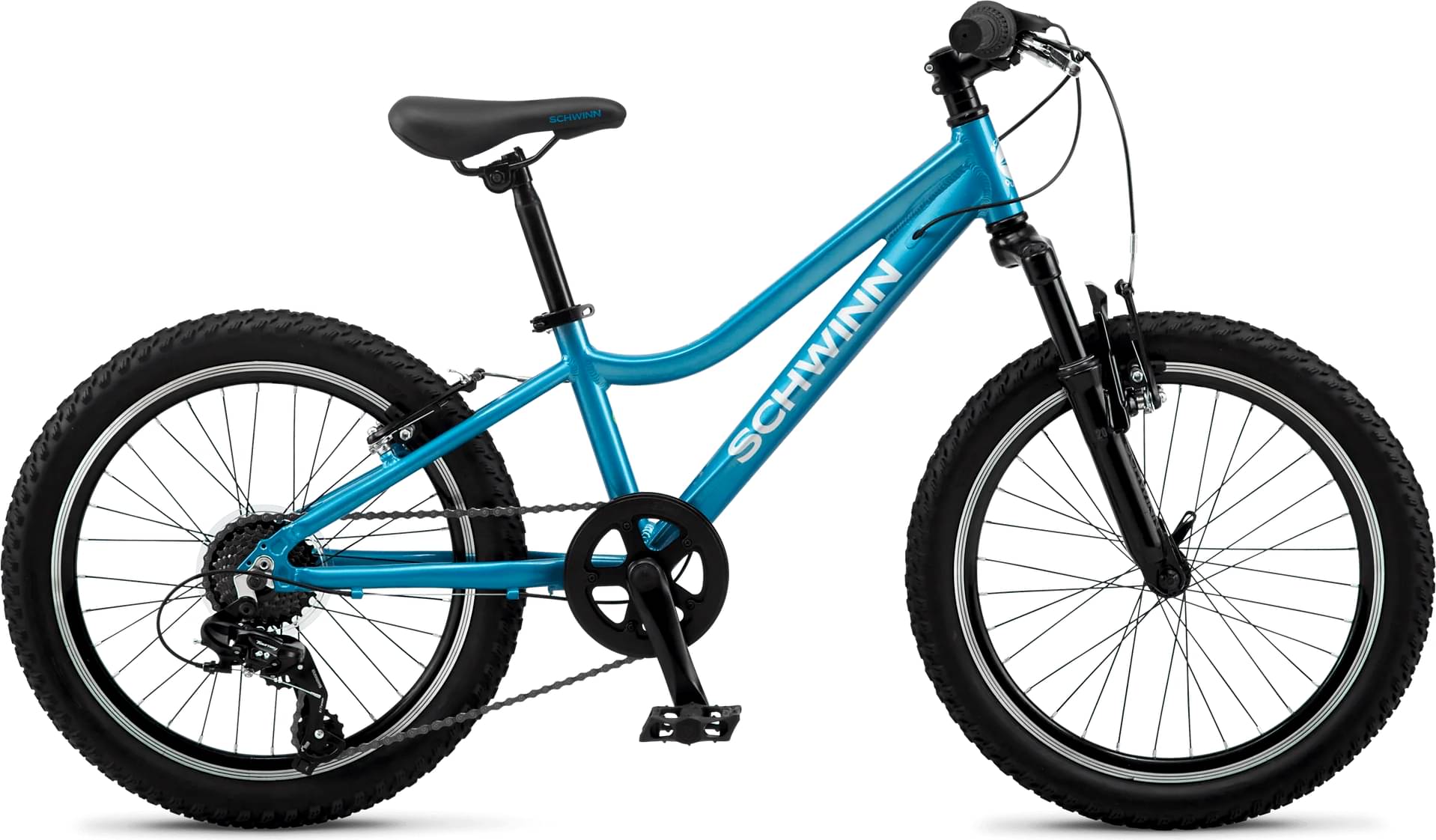

Schwinn High Timber AL 20″ Step-Thru 2025
2025 Youth
Estimate price |
329$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components

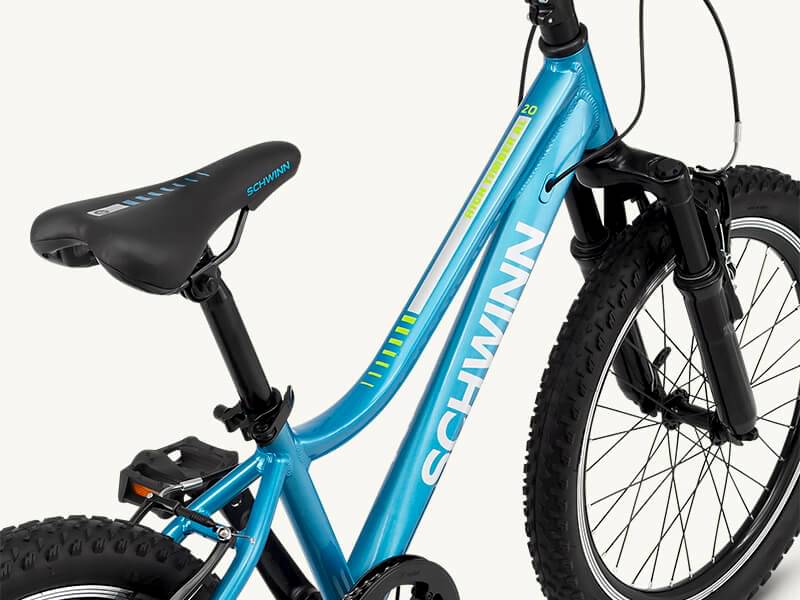

Frame
Frame
Aluminum, 10.5"
Suspension Fork
20", steel steerer, 100 mm, QR, 63 mm travel
Drivetrain

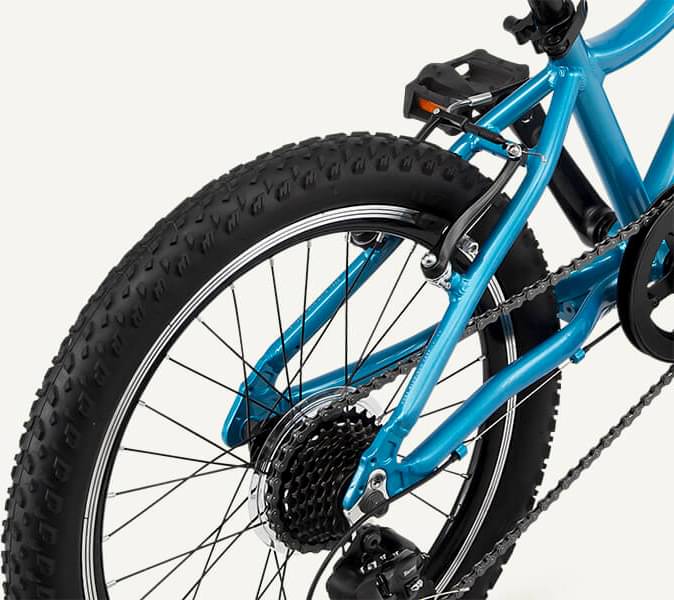

Rear Derailleur
Shimano

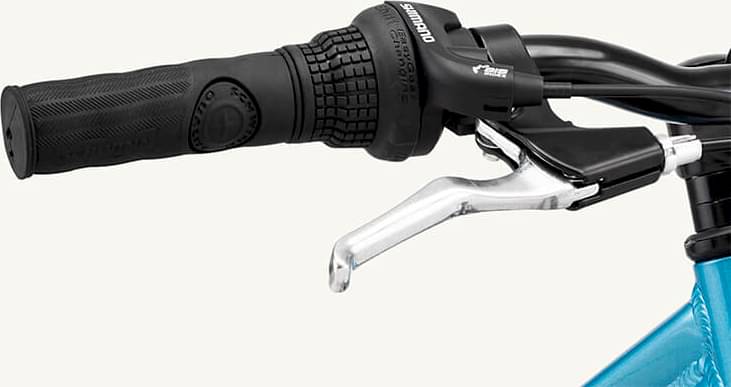

Shift Levers
Shimano, 7-speed
Crank
Aluminum, 36T
Bottom Bracket
Loose ball bearing, square taper, 68mm
Chain
KMC
Pedals
Plastic
Wheels
Rear Hub
Steel, ball bearing, 3/8" x 135 mm, 32H
Rims
Aluminum double wall, 32H
Spokes
Steel
Tires
20 in x 2.1 in, wire bead
Brakes

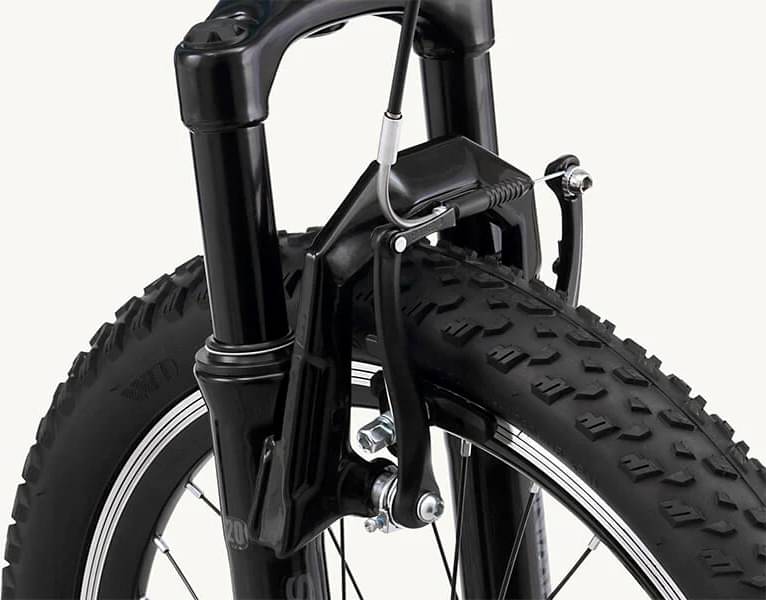

Brakes
Aluminum linear pull
Cockpit
Stem
Aluminum, 50 mm, 7°, 25.4 mm clamp
Handlebar
Steel, 560 mm width, 20 mm rise, 25.4 mm clamp
Grips
Single density
Headset
Threadless, 1", ball bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 300 mm, 20 mm offset, 27.2 mm
