Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Suspension Rigid -
Brakes Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame

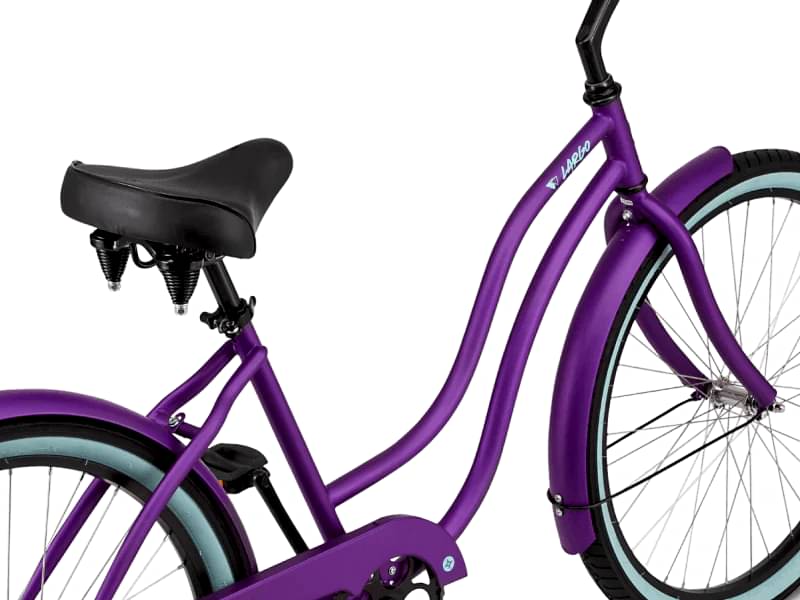

Frame
17" Hi-Ten steel, semi-horizontal drop out, 1 1/8 in headtube

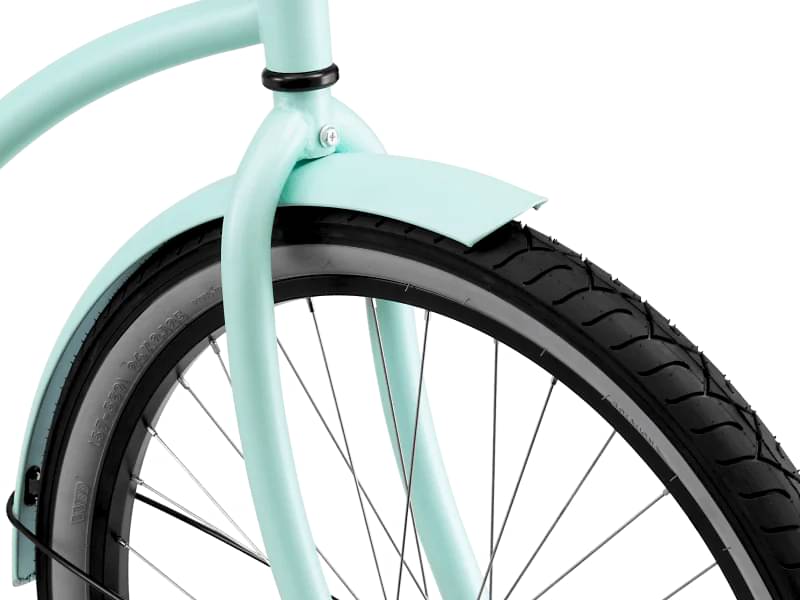

Suspension Fork
Schwinn, 26", steel steerer, 100 mm, bolted, rigid
Drivetrain

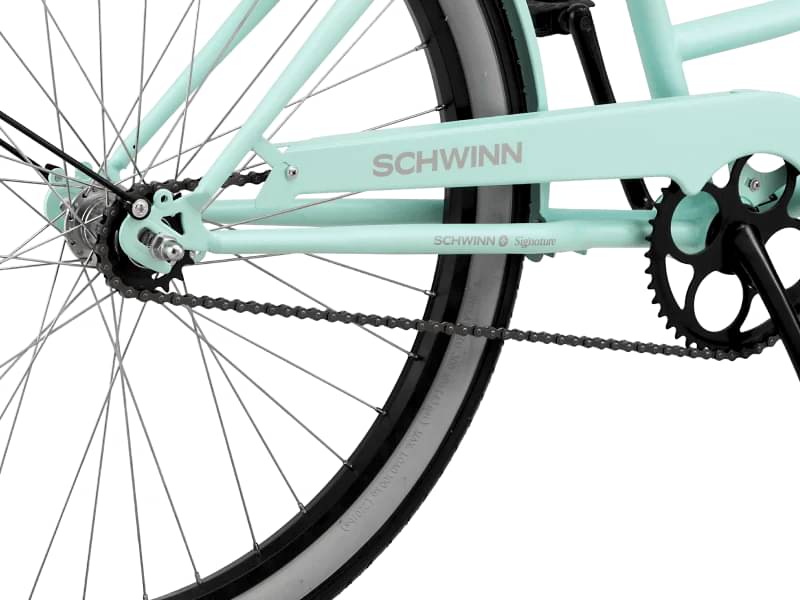

Crank
Steel 1-piece, forged steel, 44T
Bottom Bracket
Loose ball bearing, 1-piece, American, 68 mm shell
Chain
KMC S1
Pedals
Schwinn comfort, nylon
Wheels
Rear Hub
KT, steel, 110 mm bolt-on coaster brake, 36H
Rims
Aluminum, single wall, 36H, non tubeless
Spokes
14G, stainless steel
Tires
26 in x 2.125 in, wire bead
Brakes
Brakes
Coaster
Cockpit
Stem
Aluminum, quill, 100 mm, 25.4 mm clamp

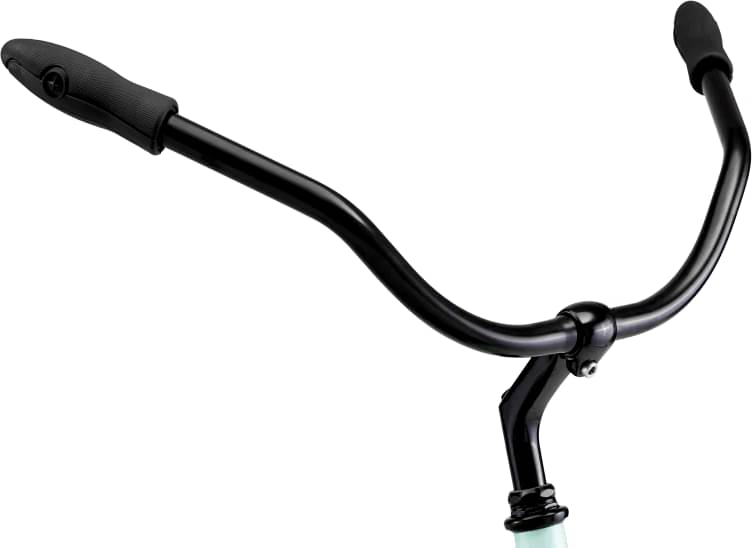

Handlebar
Cruiser, steel, 650 mm width, 25.4 mm clamp
Grips
Schwinn classic cruiser, dual density
Headset
Threaded, EC34, loose ball bearing
Seat

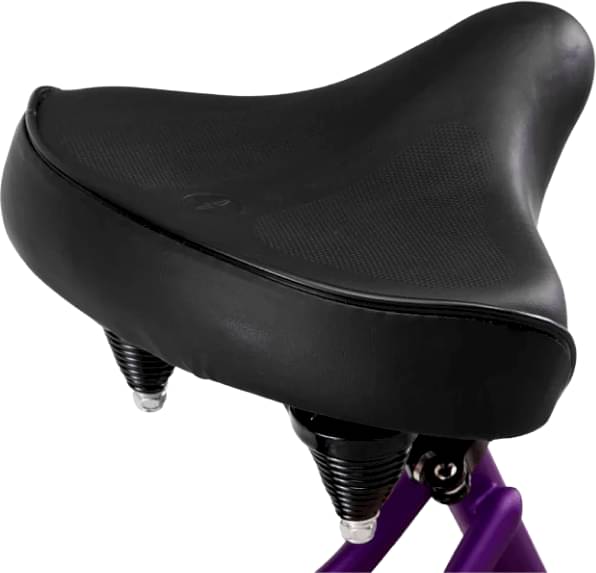

Saddle
Schwinn cruiser with double spring, steel rails
Seatpost
Steel, 300 mm, 25.4 mm
Fit data
Geometry
