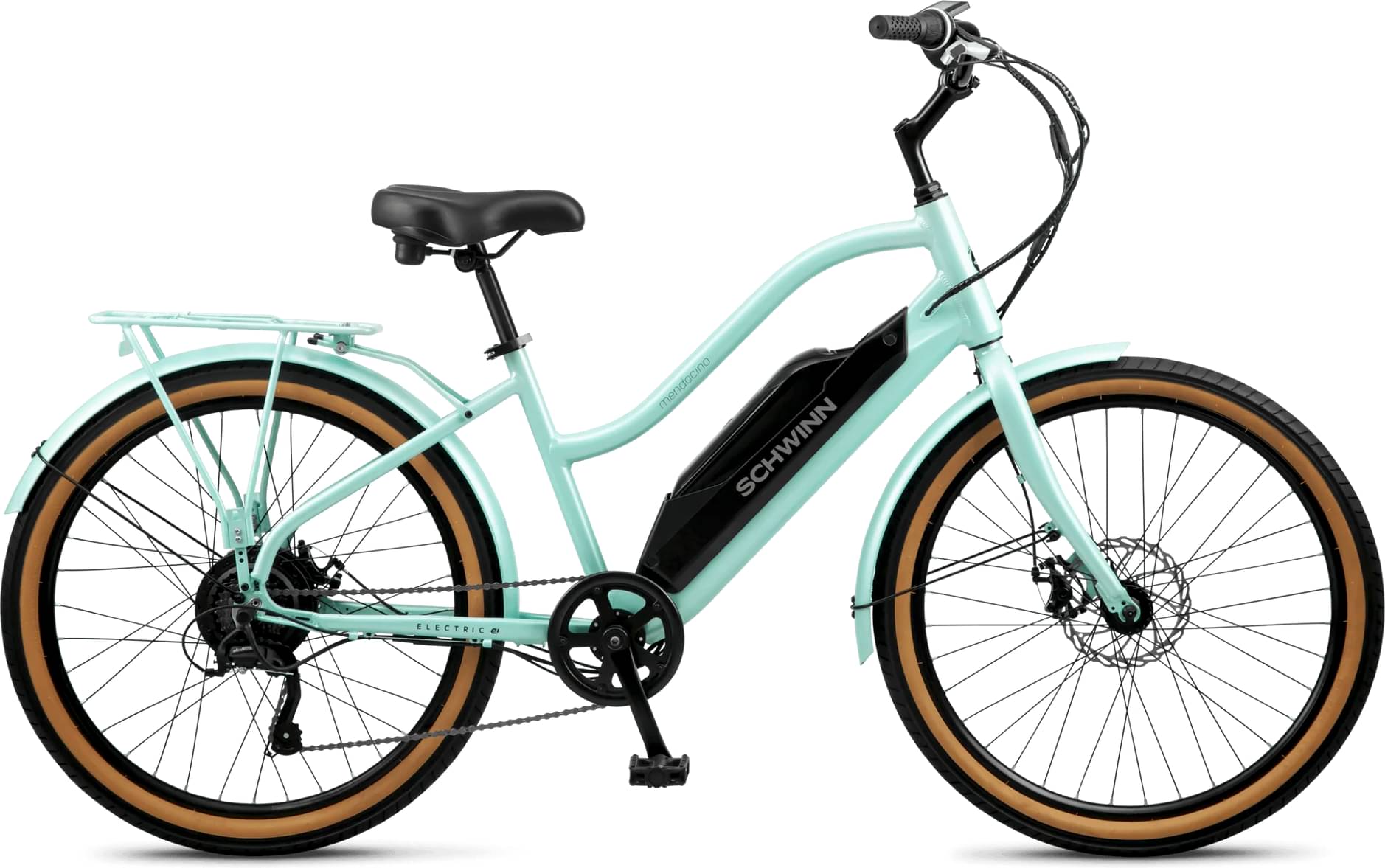

Schwinn Mendocino Step-Thru Electric Bike 500-Watt Motor 2025
2025 E-bike
Estimate price |
1,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Groupset Tourney -
Suspension Hardtail -
Motor hub-drive -
Battery 540 watt-hour rack mounted battery -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Hi-Ten steel, 26", Hi-Ten steel, 100 mm bolt-on, bolt-on
Drivetrain

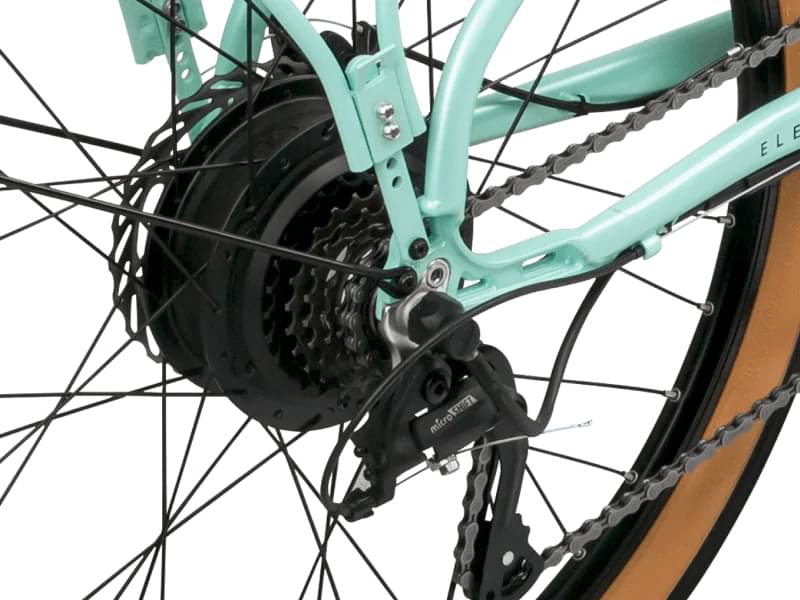

Rear Derailleur
Shimano Tourney

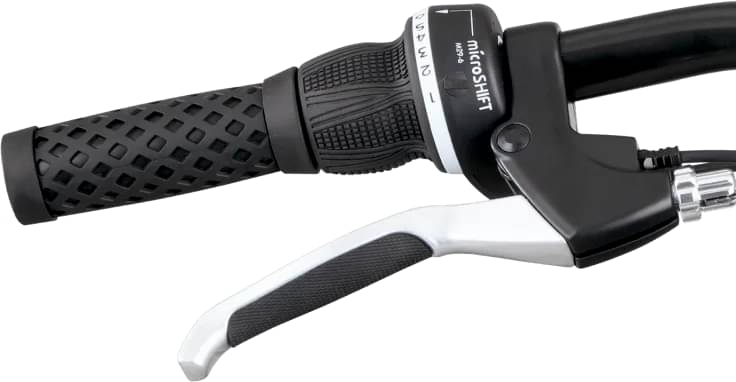

Shift Levers
Microshift, 6-speed
Crank
Aluminum 170 mm
Bottom Bracket
Feimin, cartridge
Chain
KMC
Pedals
Steel / resin, reflector
Wheels
Rear Hub
Aluminum
Rims
Aluminum, double wall, 19 mm ID, 36H, non tubeless
Spokes
14G/13G, steel
Tires
26 in x 2.125 in, wire bead
Brakes
Brakes

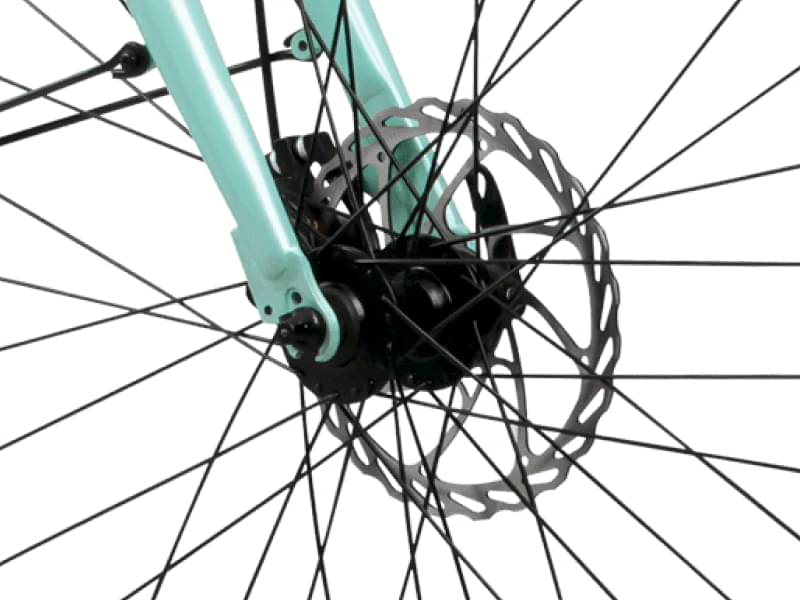

Cable actuated disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, quill, 100 mm, 30? rise, 25.4 mm clamp
Handlebar
Aluminum, 670 mm width, 60 mm rise, 25.4 mm clamp
Grips
Kraton
Headset
Threaded
Seat
Saddle
Schwinn cruiser with elastomer spring
Seatpost
Aluminum, 400 mm, 27.2 mm
Motor & Battery
Motor
500-watt hub drive motor

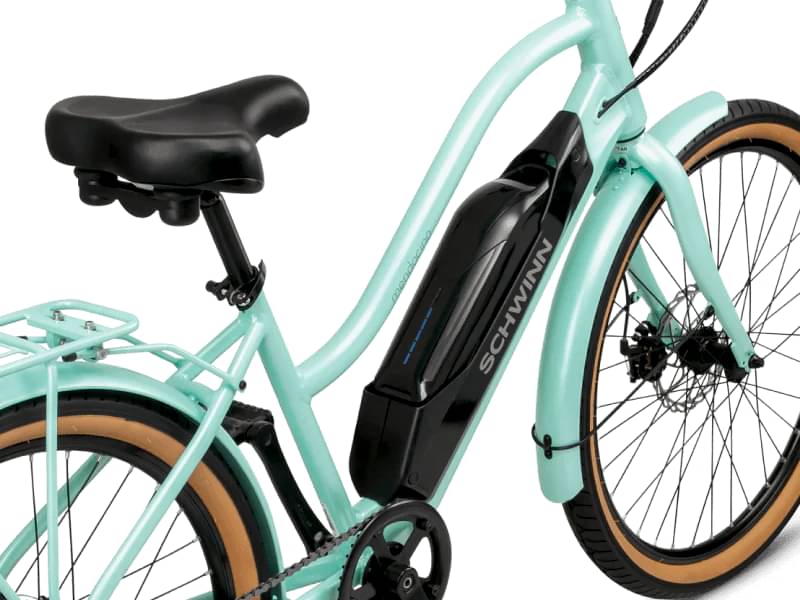

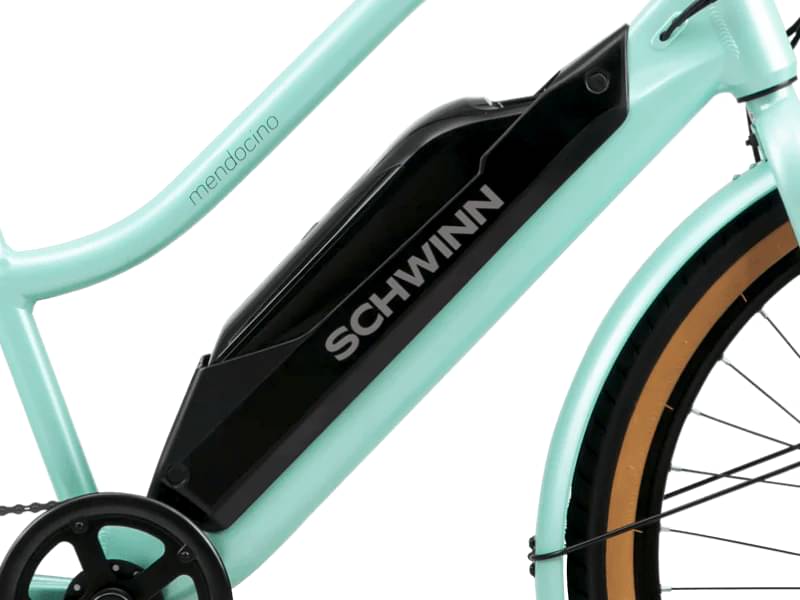

Battery

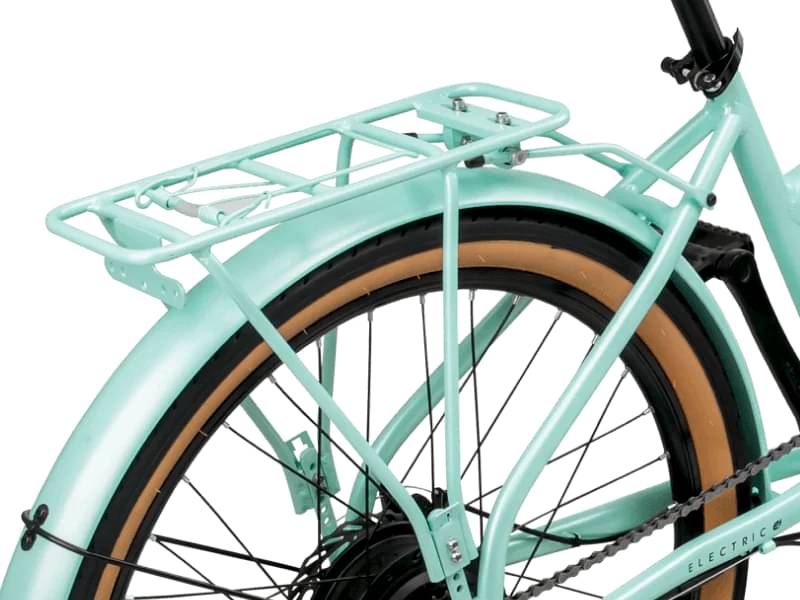

540 watt-hour rack mounted battery
Remote
2 function LED controller
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 26" |
|---|---|
| Stack Reach Ratio | 1.39 mm |
| Front Center | 679 mm |
| Rake | 42 mm |
| Trail | 80 mm |
| Stack | 581.8 mm |
| Reach | 418.6 mm |
| Top Tube Length | 630 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 416 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 200 mm |
| Chainstay Length | 490 mm |
| Wheelbase | 1166 mm |
| Bottom Bracket Drop | 38 mm |
| Standover Height | 651 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
